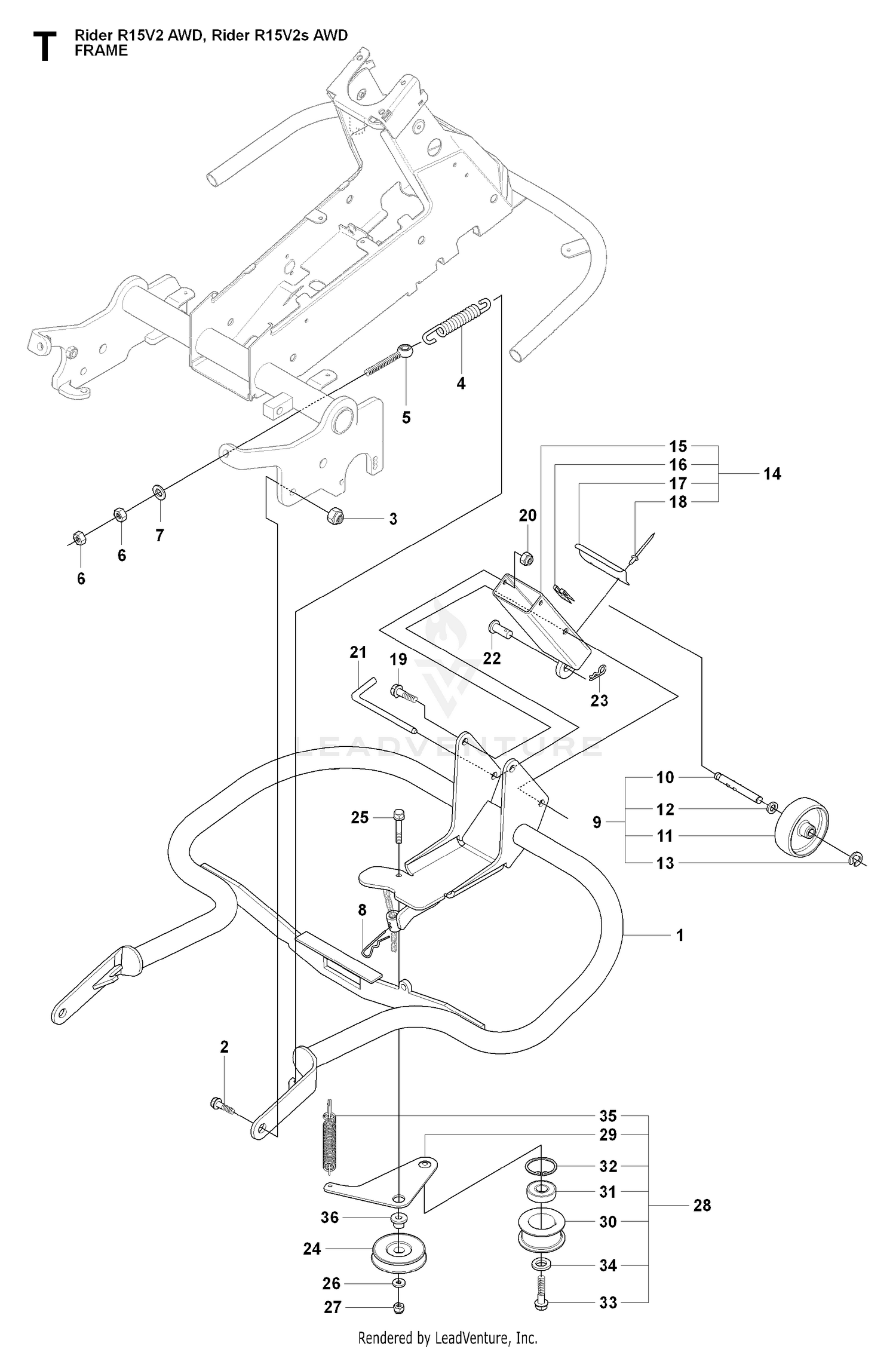

FRAME
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 535490102 | DECK FRAME Price: $255.99 |
| 2 | 506895801 | BOLT Price: $6.99 |
| 3 | 732252201 | Nut Price: $2.65 |
| 4 | 506837601 | SPRING Price: $27.99 |
| 5 | 506837701 | SCREW Price: $8.99 |
| 6 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 7 | 596134901 | GSPH This part replaces 734117201. Price: $2.99 |
| 8 | 506966601 | RETAINER Price: $3.99 |
| 9 | 506981401 | WHEEL ASSY Price: $11.99 |
| 10 | 115-4105 | GEAR CASE ASM Price: $560.23 |
| 10 | 506980001 | SHAFT Price: $17.99 |
| 11 | 506979601 | WHEEL Price: $19.99 |
| 12 | 734117771 | BUSHING Price: $3.99 |
| 13 | 735311520 | RETAINING RING Price: $2.99 |
| 14 | 506997801 | LINK ASSY Price: $39.99 |
| 15 | 506997901 | LINK Price: $84.99 |
| 17 | 506982801 | BRACKET Price: $6.99 |
| 18 | 722783902 | Rivet Price: $1.99 |
| 19 | 506597401 | BOLT Price: $5.99 |
| 20 | 127-0425 | PLUG Price: $4.34 |
| 20 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 21 | 506974601 | PIN Price: $19.99 |
| 22 | 721861701 | BOLT Price: $8.99 |
| 23 | 721680251 | R-CLIP Price: $4.99 |
| 24 | 506974801 | PULLEY Price: $44.99 |
| 25 | 725246151 | BOLT Price: $4.99 |
| 25 | 98-7487 | PLUG Price: $3.18 |
| 26 | 734116441 | SPACER Price: $3.99 |
| 27 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 28 | 535493601 | BELT TENSIONER ASSY Price: $69.99 |
| 29 | 535493701 | TENSIONER Price: $45.99 |
| 30 | 505153901 | BELT TENSIONER WHEEL ASSY This part replaces 506928901. Price: $54.99 |
| 30 | 98-7562 | WASHER-PLAIN Price: $0.36 |
| 31 | 738210404 | BALL BEARING 6004-2RS1 Price: $9.99 |
| 32 | 735313810 | RETAINING RING Price: $2.99 |
| 33 | 506558302 | BOLT Price: $3.99 |
| 34 | 734116441 | SPACER Price: $3.99 |
| 35 | 594020601 | Springs This part replaces 506976801. Price: $14.99 |
| 36 | 544007401 | SPACER Price: $25.99 |
| 40 | 98-9388 | JOINT-PIPE Price: $31.66 |
| 50 | 130-1511 | SPRING Price: $3.05 |
| 60 | 130-1510 | VALVE-RELIEF Price: $26.61 |
| 80 | 130-1508 | ROTOR ASM Price: $266.77 |
| 85 | 130-1509 | COVER-PUMP, OIL Price: $7.88 |
| 90 | 130-1164 | SCREW-BINDING Price: $0.32 |
| 110 | 98-9633 | GASKET-CASE, GEAR Price: $30.19 |
| 120 | 100-1765 | BOLT Price: $1.59 |
| 130 | 125-9063 | BOLT-SEMS Price: $1.31 |
| 140 | 98-9356 | BOLT Price: $2.06 |
| 150 | 107-9074 | BOLT Price: $1.43 |
| 160 | 99-3510 | BOLT This part replaces 98-9586. Price: $0.80 |
| 170 | 105-3709 | STUD Price: $1.13 |
| 180 | 100-2203 | NUT-FLANGE Price: $0.87 |
| 190 | 119-8038 | SEAL-OIL Price: $40.16 |
| 200 | 105-3710 | STUD Price: $1.16 |
| 210 | 99-3515 | PLUG-GEARCASE Price: $9.00 |
