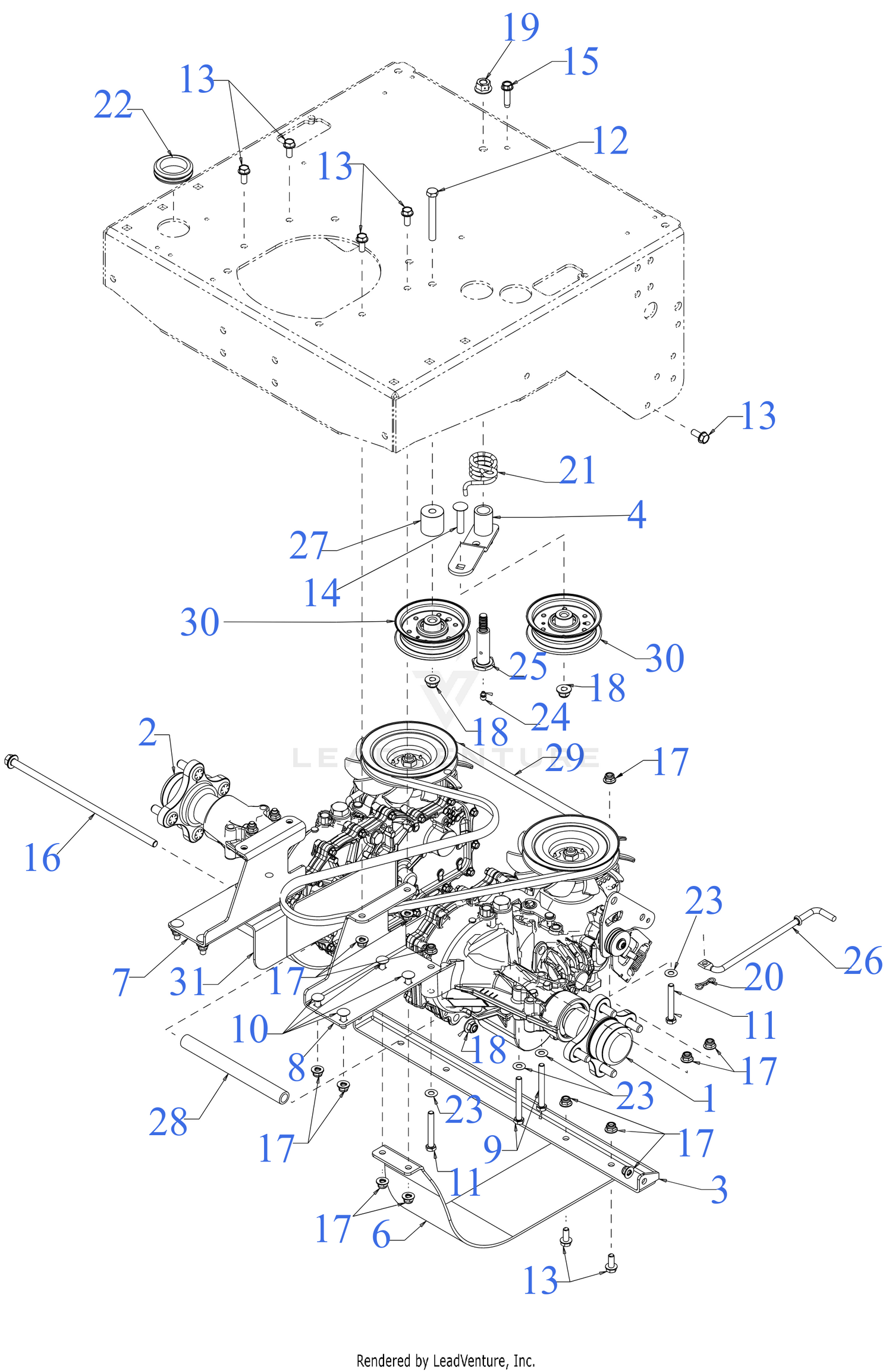

| Ref | Part Number | Description |
|---|
| 4 |
680E00540 |
IDLER ARM ASSEMBLY Price: $52.60 |
| 9 |
710-0176 |
HEX SCREW 5/16-18 x 2.75 Price: $3.89 |
| 10 |
710-0276 |
CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 11 |
710-0395 |
HEX SCREW 5/16-18 x 2.25 GR5 Price: $4.08 |
| 12 |
710-0521 |
SCREW 3/8-16 x 3 GR8 Price: $4.54 |
| 13 |
710-06194 |
SCREW 5/16-18 x .750 GR8 Price: $3.70 |
| 14 |
710-06234 |
BOLT 3/8-16 x 1.69 GR5 Price: $5.59 |
| 15 |
710-0817 |
SCREW 5/16-18 x 1.25 Price: $5.77 |
| 16 |
710-11684 |
HEX FLANGE BOLT 3/8-16 x 11 Price: $73.49 |
| 17 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 18 |
712-04065 |
NUT Price: $3.68 |
| 19 |
712-04337 |
FLANGE NUT 7/16-14 Price: $3.36 |
| 20 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 21 |
732-3067 |
TORSION SPRING Price: $22.27 |
| 22 |
735-05223 |
RUBBER GROMMET (1.50X2.13X.563) Price: $4.25 |
| 23 |
736-0278 |
FLAT WASHER Price: $4.99 |
| 24 |
937-3000 |
GREASE FITTING Price: $4.04 |
| 25 |
738-3172 |
SHOULDER BOLT .68 x 2.11 7/16-14 Price: $18.22 |
| 26 |
747-06970 |
BYPASS ROD Price: $12.77 |
| 27 |
750-06813 |
SPACER (0.385 x 1.25 x 1.27) Price: $21.31 |
| 28 |
750-10945 |
SUPPORT TUBE Price: $15.91 |
| 29 |
954-05812 |
V-BELT A SEC x 66.14 Price: $48.09 |
| 30 |
756-04280A |
IDLER PULLEY Price: $36.29 |
