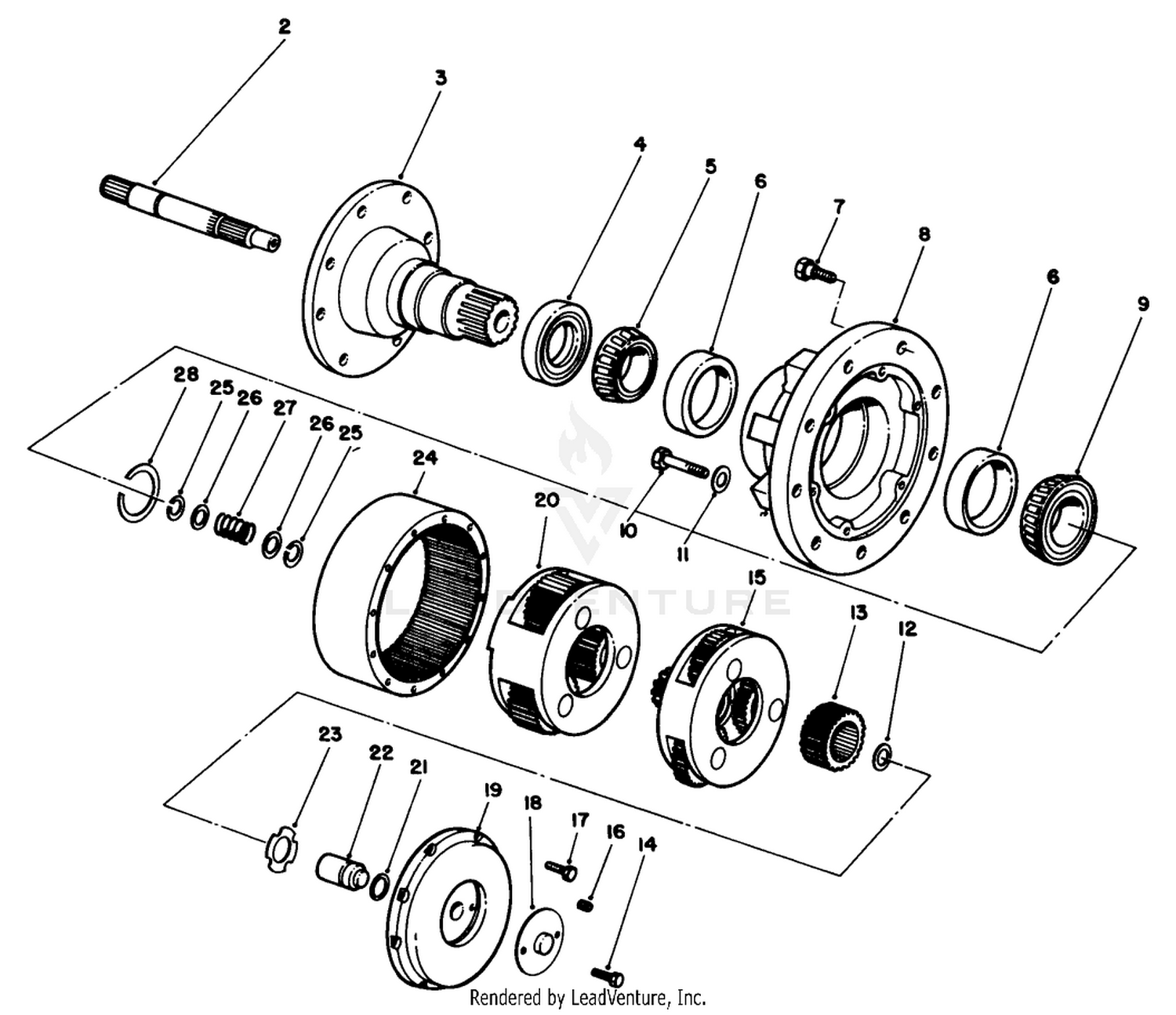

Planetary Gear Assembly No. 69-1730
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 60-3810 | SHAFT Price: $412.07 |
| 3 | 69-1740 | SPINDLE Price: $811.14 |
| 4 | 60-3830 | SEAL Price: $60.55 |
| 5 | 60-3840 | CONE Price: $163.95 |
| 6 | 60-3850 | CUP Price: $109.74 |
| 7 | 60-3860 | BOLT Price: $8.48 |
| 8 | 60-3870 | DISCONTINUED Price: Call Us |
| 9 | 60-3880 | CONE Price: $179.96 |
| 10 | 60-3890 | BOLT Price: $3.11 |
| 11 | 60-3910 | WASHER Price: $1.35 |
| 12 | 60-3980 | WASHER Price: $0.27 |
| 13 | 60-3970 | GEAR Price: $190.25 |
| 14 | 60-4070 | BOLT Price: $0.73 |
| 15 | 60-3960 | PRIMARY CARRIER ASM Price: $2,411.05 |
| 16 | 60-4040 | PLUG Price: $11.10 |
| 17 | 60-4030 | BOLT Price: $1.36 |
| 18 | 60-4060 | COVER Price: $9.99 |
| 19 | 114-5060 | COVER KIT This part replaces 60-4050. Price: $421.50 |
| 20 | 60-4000 | SECONDARY CARRIER ASM Price: $2,529.71 |
| 21 | 60-4020 | RING Price: $1.54 |
| 22 | 60-4010 | PLUNGER Price: $28.33 |
| 23 | 60-3990 | WASHER-THRUST Price: $10.52 |
| 24 | 60-3900 | GEAR Price: $1,114.65 |
| 25 | 60-3930 | RING Price: $0.27 |
| 26 | 60-3940 | WASHER Price: $4.07 |
| 27 | 60-3950 | SPRING Price: $8.11 |
| 28 | 62-6450 | RETAINING RING KIT Price: $152.42 |
