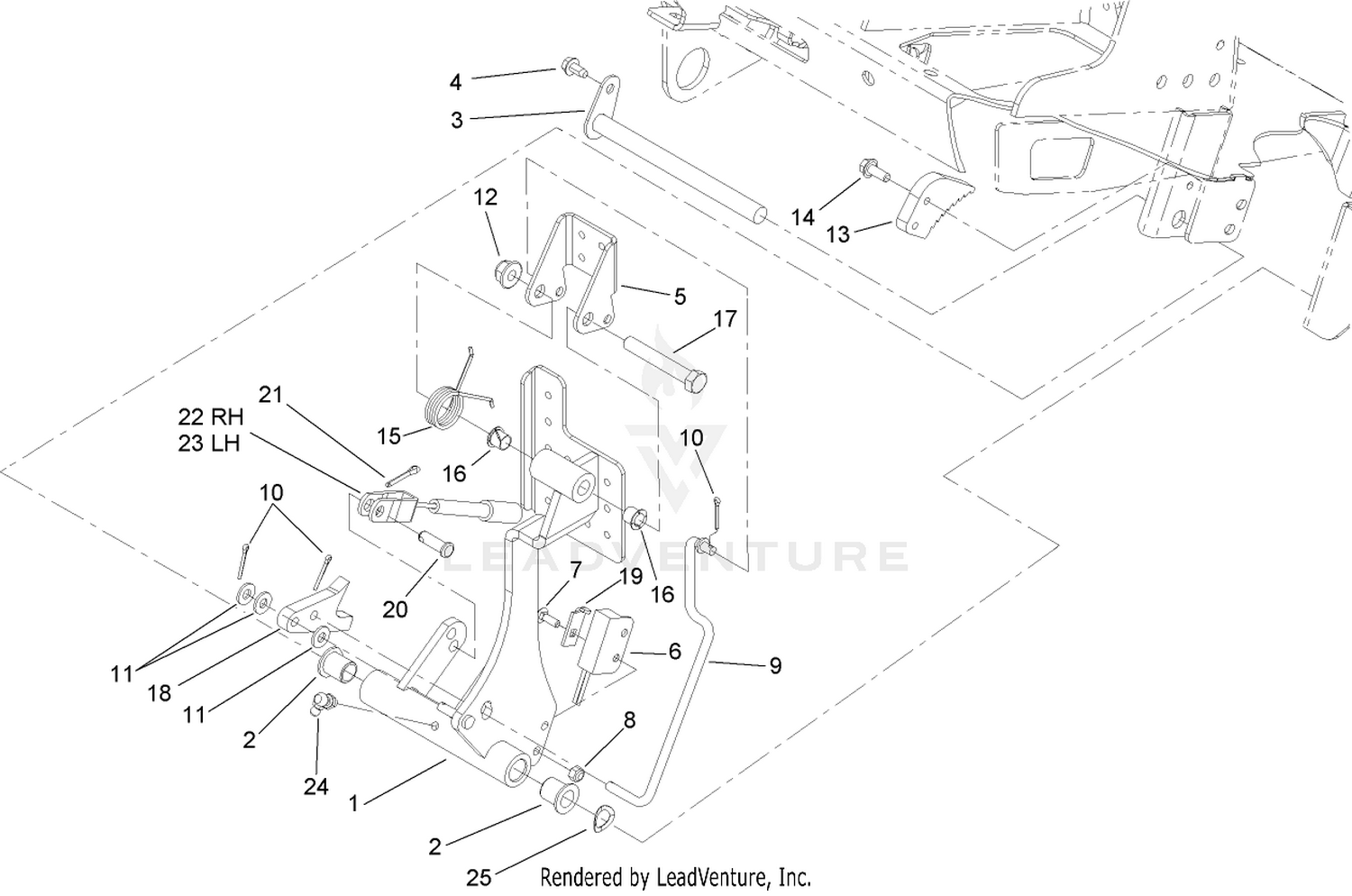

| Ref | Part Number | Description |
|---|
| 1 |
106-3712-03 |
PEDAL-BRAKE Price: $184.13 |
| 2 |
256-155 |
BUSHING-FLANGE Price: $1.76 |
| 3 |
104-7179 |
PIVOT-PEDAL Price: $43.97 |
| 4 |
12-3270 |
SCREW Price: $3.09 |
| 5 |
99-7963-03 |
PEDAL-PARK Price: $26.63 |
| 6 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 7 |
3229-34 |
SCREW-CARR Price: $1.99 |
| 8 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 9 |
110-0914 |
ROD-PAWL, BRAKE Price: $20.11 |
| 10 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 11 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 12 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 13 |
99-7214 |
PAWL-BRAKE Price: $28.35 |
| 14 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 15 |
99-7140 |
SPRING-TORSION Price: $21.98 |
| 16 |
52-2891 |
BUSHING-FLANGED, NYLON Price: $3.19 |
| 17 |
323-12 |
SCREW-HH Price: $1.14 |
| 18 |
106-3713 |
DETENT Price: $18.43 |
| 19 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 20 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 21 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 22 |
110-9036 |
CABLE-BRAKE, RH This part replaces 106-3746. Price: $113.67 |
| 23 |
110-9037 |
CABLE-BRAKE, LH This part replaces 106-3747. Price: $113.67 |
| 24 |
302-60 |
FITTING-GREASE Price: $2.26 |
