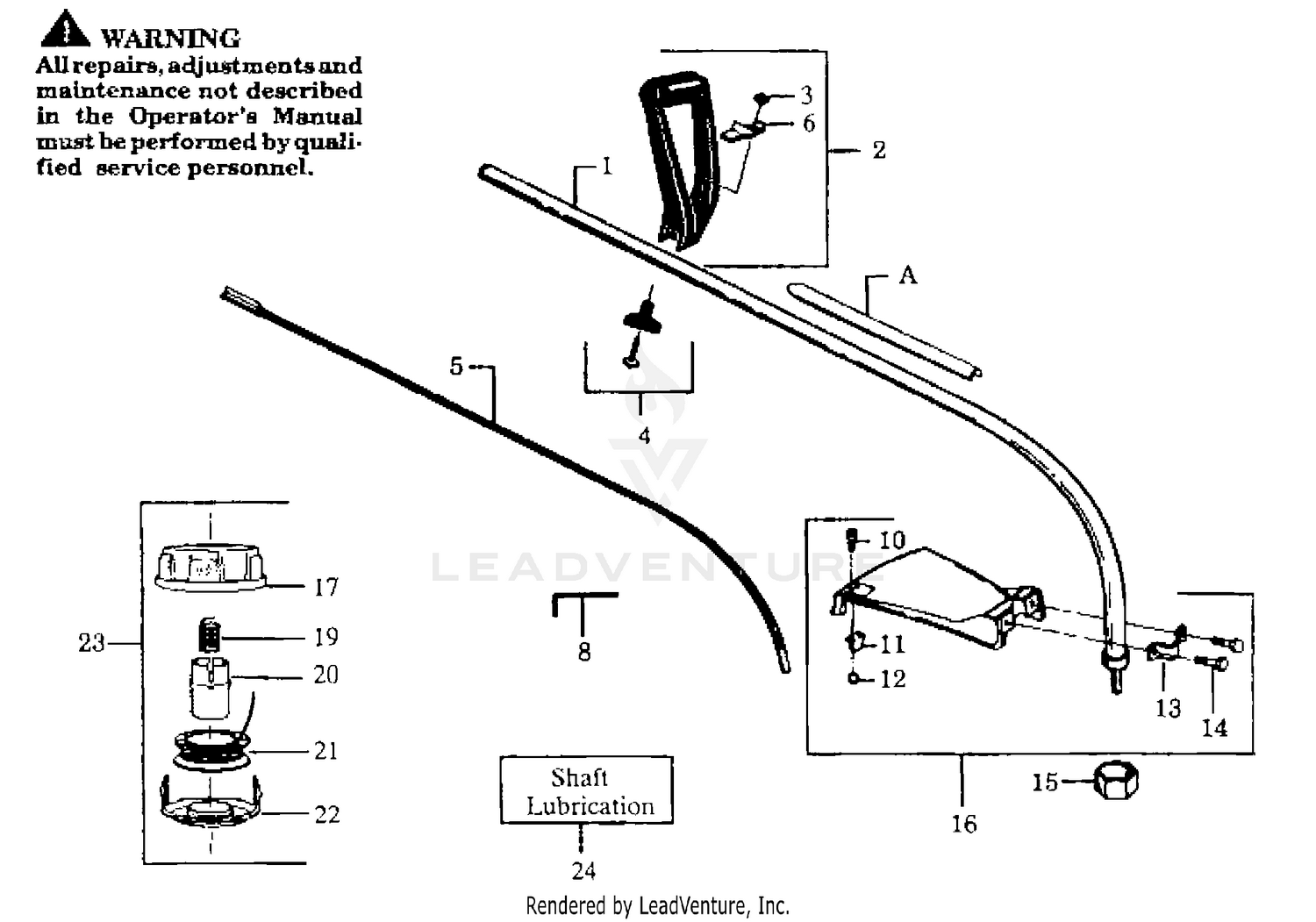

| Ref | Part Number | Description |
|---|
| A |
530029159 |
Shaft Warning Decal Price: $0.85 |
| 1 |
530095133 |
Drive Shaft Housing Price: $19.00 |
| 2 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 2 |
530069496 |
Assist Handle Kit Price: $14.99 |
| 3 |
256-268 |
BUSHING Price: $18.24 |
| 3 |
530015610 |
Nut Price: $0.99 |
| 4 |
105-7441 |
BEARING-SPHERICAL Price: $56.85 |
| 4 |
530069347 |
HANDLE KIT This part replaces 530069252. Price: $4.99 |
| 5 |
32151-34 |
RING-RETAINING Price: $0.67 |
| 5 |
530094679 |
Drive Shaft Price: $12.99 |
| 6 |
119-2200 |
PAD-RUBBER, REAR HOC Price: $10.33 |
| 6 |
530094742 |
Clamp Price: $2.99 |
| 7 |
119-2230 |
PAD-PLASTIC, REAR HOC Price: $7.14 |
| 8 |
110-0606 |
RIVET-BLIND Price: $1.15 |
| 8 |
530031159 |
Hex Wrench (5/32) This part replaces 530031111. Price: $1.99 |
| 10 |
530015337 |
Screw Price: $1.99 |
| 11 |
530094570 |
Line Limiter Price: $1.99 |
| 12 |
530403094 |
Nut This part replaces 534235901. Price: $1.99 |
| 13 |
530029373 |
Shield Bracket Price: $0.99 |
| 14 |
530016107 |
Screw This part replaces 530092243. Price: $1.99 |
| 15 |
530094543 |
Dust Cup Price: $1.99 |
| 17 |
530094875 |
Hub Ass'y. Price: $8.13 |
| 19 |
530094830 |
Spring Price: $1.99 |
| 20 |
530094827 |
Release Button Price: $3.99 |
| 21 |
952701619 |
Spool w/Line Price: $5.95 |
| 22 |
530094828 |
Cover Price: $8.99 |
| 23 |
695000394 |
TRIMMY HIT JR-5/16 This part replaces 952701618. Price: $20.95 |
| 24 |
952030139 |
Shaft Lubrication Price: $2.99 |
