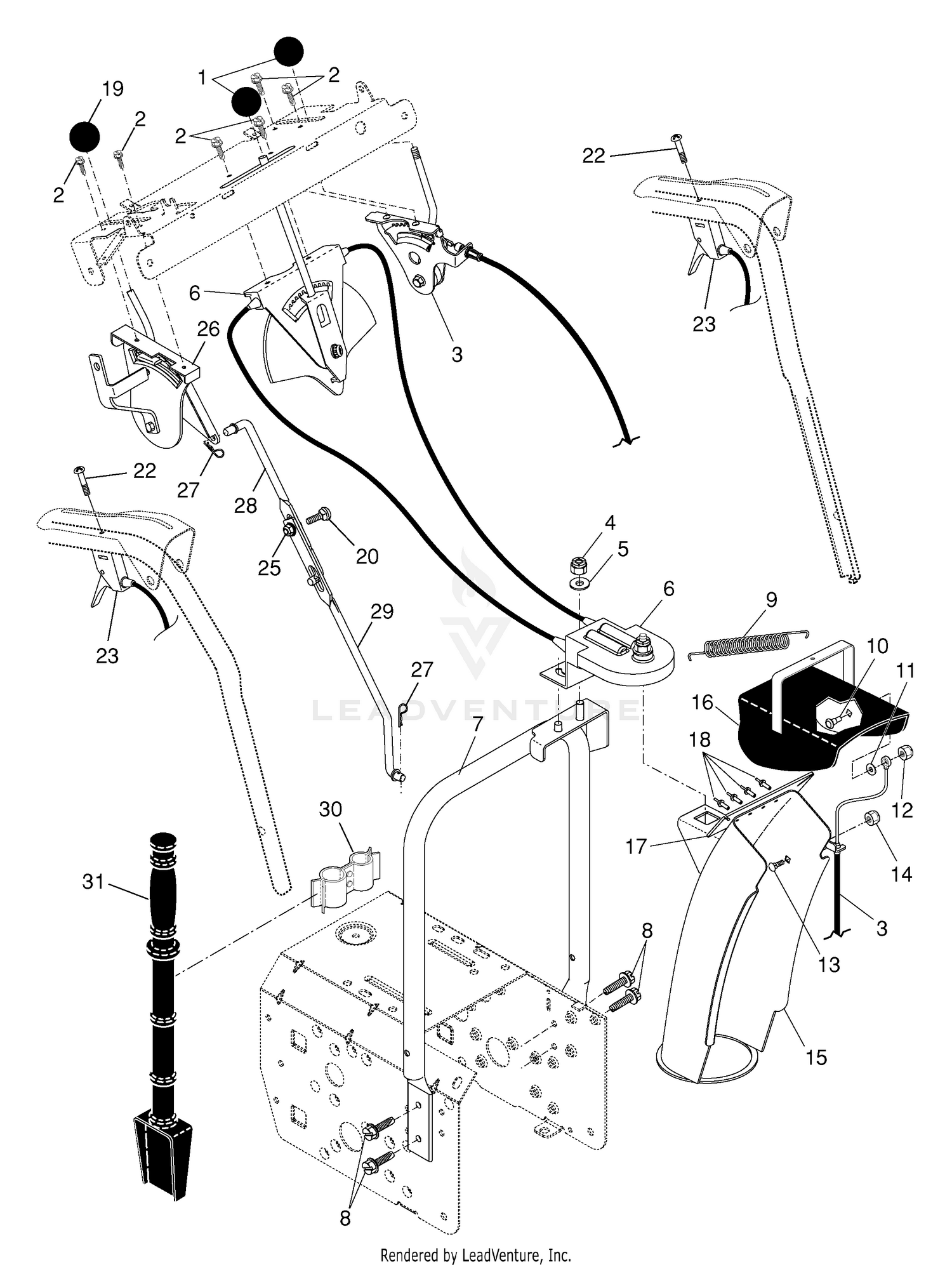

| Ref | Part Number | Description |
|---|
| 1 |
532414280 |
KNOB LEVER, BLACK This part replaces 532183334. Price: $6.99 |
| 1 |
85-6540 |
STUD-DRIVE Price: $7.41 |
| 2 |
817501010 |
SCREW #10-24 X 5/8 Price: $4.99 |
| 2 |
85-8290 |
TIRE-2PLY, KNOBBY Price: $120.96 |
| 3 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 3 |
587030801 |
CONTROL.ASM.DEFLEC.BLK.BOWDEN This part replaces 532198475. Price: $54.99 |
| 4 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 4 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 5 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 5 |
93-6838-03 |
HUB-WHEEL This part replaces 93-6838. Price: $72.59 |
| 6 |
325-14 |
SCREW-HH Price: $2.64 |
| 6 |
532428272 |
LEVER/CABLE.ASM.ROTATOR This part replaces 532404974. Price: $129.99 |
| 7 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 7 |
532443617 |
SUPPORT.WELDMENT.ROTATOR.BLACK This part replaces 532407643. Price: $24.99 |
| 8 |
3217-9 |
NUT-HH Price: $0.37 |
| 8 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 9 |
10-6850 |
DRUM-BRAKE Price: $54.08 |
| 9 |
532184505 |
SPRING.DEFLECTOR.REM.CHUTE Price: $6.99 |
| 10 |
532179829 |
BOLT, SHOULDER Price: $4.99 |
| 10 |
70-9870 |
PLATE-BACKING Price: $183.14 |
| 11 |
532179246 |
WASHER, NYLON FRICTION Price: $3.99 |
| 11 |
84-1990 |
ROD-ADJUSTING Price: $17.37 |
| 12 |
147-3595 |
BRACKET-BRAKE This part replaces 84-2000. Price: $8.08 |
| 12 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 13 |
596136401 |
Bolts This part replaces 872250505. Price: $2.99 |
| 13 |
92-1715 |
SPACER Price: $7.99 |
| 14 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 14 |
93-6850 |
LEVER-BRAKE Price: $59.75 |
| 15 |
282-2 |
YOKE Price: $30.04 |
| 15 |
590518207 |
DEFLECTOR ASSEMBLY RIVETED This part replaces 532407650. Price: $17.99 |
| 16 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 16 |
590518207 |
DEFLECTOR ASSEMBLY RIVETED This part replaces 532184113. Price: $17.99 |
| 17 |
321-4 |
SCREW-HH Price: $0.99 |
| 17 |
532420325 |
SEAL.DEFLECTOR This part replaces 532179145. Price: $5.99 |
| 18 |
3220-2 |
NUT-JAM Price: $0.50 |
| 18 |
532128415 |
RIVET BLIND Price: $3.99 |
| 19 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 19 |
532183333 |
RP KNOB, SPEED CONTROL LEVER Price: $8.99 |
| 20 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 20 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 This part replaces 872270506. Price: $3.99 |
| 21 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 22 |
32120-47 |
RING-RETAINING, EXTERNAL Price: $0.99 |
| 22 |
874041024 |
SCREW Price: $2.99 |
| 23 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 23 |
532421249 |
CABLE.TRIGGER.CONTROL.ASM This part replaces 532192449. Price: $19.99 |
| 24 |
95-0625 |
ROD-TRAVERSE Price: $90.51 |
| 25 |
115-6699 |
BRAKE ROD ASM This part replaces 95-0628. Price: $93.68 |
| 25 |
596039201 |
GSPW Hardware This part replaces 532198541. Price: $2.99 |
| 26 |
27-2320 |
BEARING Price: $15.22 |
| 26 |
532429667 |
KIT.CONTROL.SPEED.SELECTOR.SNO This part replaces 532198474. Price: $74.99 |
| 27 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 27 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 28 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 28 |
532180445 |
ROD, UPPER SPEED CONTROL Price: $34.99 |
| 29 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 29 |
532187716 |
ROD, LOWER SPEED CONTROL.SNOW Price: $17.99 |
| 30 |
532192710 |
CLAMP.ASM.CLEANOUT.TOOL.SNOW Price: $8.99 |
| 30 |
83-9310 |
RH BRAKE LEVER ASM Price: $67.19 |
| 31 |
104-7708 |
BRAKE CAM & E-RING ASM This part replaces 70-9850. Price: $42.42 |
| 32 |
70-9880 |
SPRING-RETURN Price: $11.81 |
| 33 |
70-9840 |
SHOE-BRAKE Price: $60.36 |
| 34 |
114-4643 |
WHEEL This part replaces 94-6116. Price: $149.61 |
| 35 |
5108 |
VALVE This part replaces 232-35. Price: $6.29 |
| 36 |
104-7708 |
BRAKE CAM & E-RING ASM This part replaces 70-9860. Price: $42.42 |
