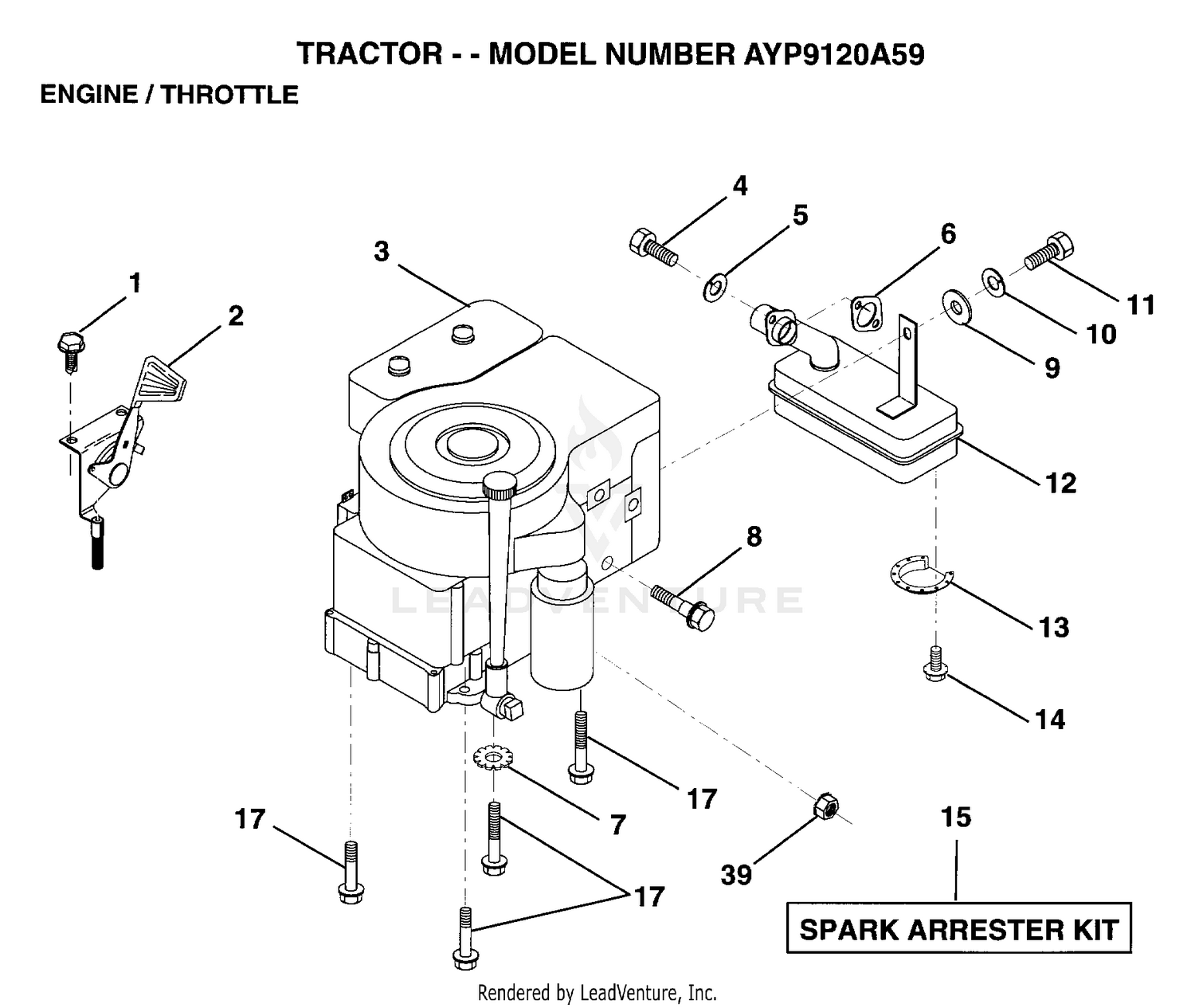

| Ref | Part Number | Description |
|---|
| 1 |
17060408 |
SCREW.1/4-20X1/2 Price: Call Us |
| 1 |
32136-9 |
NUT-HEX, SLOTTED Price: $7.44 |
| 2 |
3272-37 |
PIN-COTTER Price: $0.75 |
| 3 |
18-6320 |
WASHER-STEERING Price: $2.65 |
| 4 |
115-3276 |
KIT-SERVICE, CASTOR FORK This part replaces 99-1492-01. Price: $530.51 |
| 4 |
71070512 |
SCREW Price: Call Us |
| 5 |
10040500 |
LOCKWASHER Price: Call Us |
| 5 |
70-8370 |
BOLT Price: $73.52 |
| 6 |
125593X |
SUB= 272293 Price: Call Us |
| 6 |
72-9710 |
HUB-TIRE Price: $288.21 |
| 7 |
11050600 |
LOCKWASHER Price: Call Us |
| 8 |
121094X |
BOLT T Price: Call Us |
| 8 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 9 |
19101216 |
WASHER Price: Call Us |
| 9 |
3296-67 |
NUT-LOCK, NI Price: $5.05 |
| 10 |
10040400 |
LOCKWASHER Price: Call Us |
| 10 |
106-6774 |
JOINT-BALL This part replaces 92-5838. Price: $79.04 |
| 11 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 12 |
137437 |
MUFFLER Price: Call Us |
| 12 |
32151-104 |
RING-RETAINING, EXTERNAL Price: $4.85 |
| 13 |
101326L |
DEFLECTOR.222573 Price: Call Us |
| 13 |
132-3778 |
CYLINDER-STEERING This part replaces 93-2122. Price: $786.47 |
| 14 |
17030808 |
SUB= 17030814 Price: Call Us |
| 14 |
93-2270 |
HYD HOSE ASM Price: $91.88 |
| 15 |
137180 |
SUB= 532137180 Price: Call Us |
| 15 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 16 |
117-9471 |
KIT-SERVICE,GR3250-D STEERING This part replaces 93-2269. Price: $105.67 |
| 17 |
17490624 |
SCREW LT Price: Call Us |
| 17 |
3220-6 |
NUT-JAM Price: $1.25 |
| 18 |
115-9472 |
BEARING-CONE AND SEAL This part replaces 254-70. Price: $22.04 |
| 19 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 20 |
70-8490 |
SPACER-SPINDLE, REAR Price: $24.99 |
| 21 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 22 |
99-1493 |
DECAL Price: $34.25 |
| 23 |
92-5753 |
CLAMP-HOSE Price: $2.10 |
| 24 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 25 |
99-1485-01 |
PLATE-ADAPTER, MOTOR Price: $41.54 |
| 26 |
99-1486-01 |
PLATE-ADAPTER Price: $35.80 |
| 27 |
325-6 |
SCREW-HH Price: $1.42 |
| 28 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 29 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
