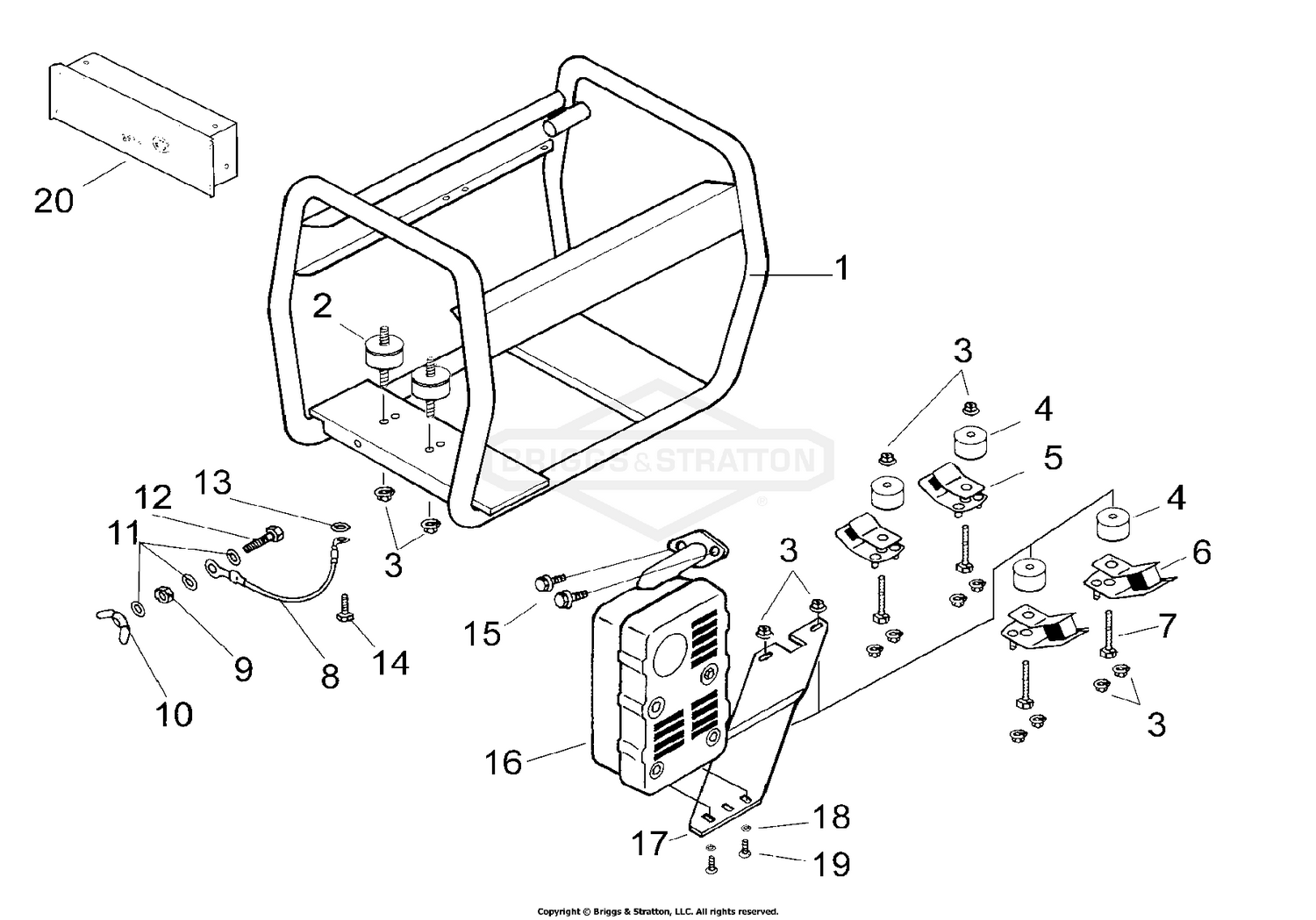

Cradle Assembly

Cradle Assembly

Parts (20)

RefPart NumberDescription
1 102761GS Cradle Pro Max 4500/6000 Price: Call Us
2 102034GS Vibration Mount 32mm Diameter Price: Call Us
3 ~NSP Nut Flange M8-1.25 Price: Call Us
4 102136GS Spacer Price: Call Us
5 102033GS Vibration Mount 45 Degree Soft Price: Call Us
6 102031GS Vibration Mount 45 Degree Hard Price: Call Us
7 103007GS Screw Set M8-1.25x60mm Price: Call Us
8 102050GS Lead Earth Assy 145mm Price: Call Us
9 ~NSP Nut Full M6-1.0 Price: Call Us
10 102036GS Nut Wing M6-1.0 Price: Call Us
11 ~NSP Washer Shakeproof 1/4" & M6 Int Price: Call Us
12 ~NSP Screw Set M6-1.0x25mm Plated Price: Call Us
13 ~NSP Washer Shakeproof M8 int Price: Call Us
14 ~NSP Screw Set M8-1.25 x 12mm Price: Call Us
15 102363GS Screw Set 5/16" UNC * 3/4" Price: Call Us
16 102255GS Muffler Intek 8 Price: Call Us
17 102364GS Bracket Exhaust Price: Call Us
18 ~NSP Washer Spring M6 & 1/4" Price: Call Us
19 ~NSP Screw Set HHD M6-1.0*12mm Price: Call Us
20 102987GS Outlet panel assembly Price: Call Us
