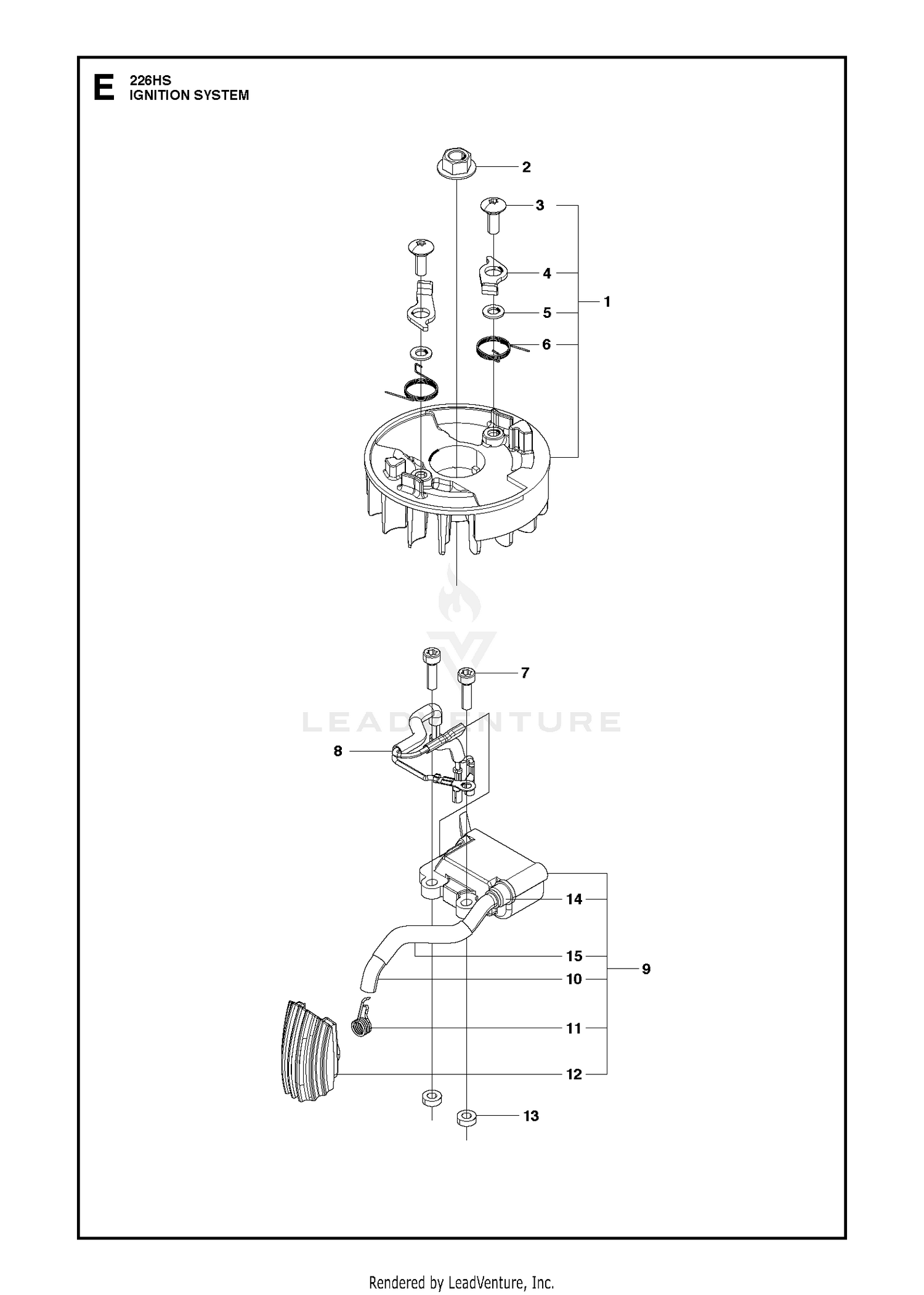

IGNITION SYSTEM
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506656001 | ROTOR ASSY Price: $39.99 |
| 2 | 516437401 | NUT(RPLS 1140-43230&182301) This part replaces 504118001. Price: $2.99 |
| 3 | 506614301 | SCREW Price: $2.99 |
| 4 | 506614101 | PAWL Price: $4.99 |
| 5 | 506614401 | WASHER 5X10X10 Price: $2.99 |
| 6 | 521747101 | SPRING Price: $2.99 |
| 8 | 506652301 | CORD COMP Price: $7.99 |
| 9 | 589372401 | COIL ASSY Price: $59.99 |
| 10 | 511351201 | CORD Price: $12.99 |
| 11 | 506655201 | SPRING Price: $2.99 |
| 12 | 521610001 | CAP Price: $5.99 |
| 13 | 504118601 | SPACER Price: $2.99 |
| 14 | 516744001 | RP_CAP This part replaces 505042801. Price: $2.99 |
| 15 | 506618201 | TUBE Price: $2.99 |
