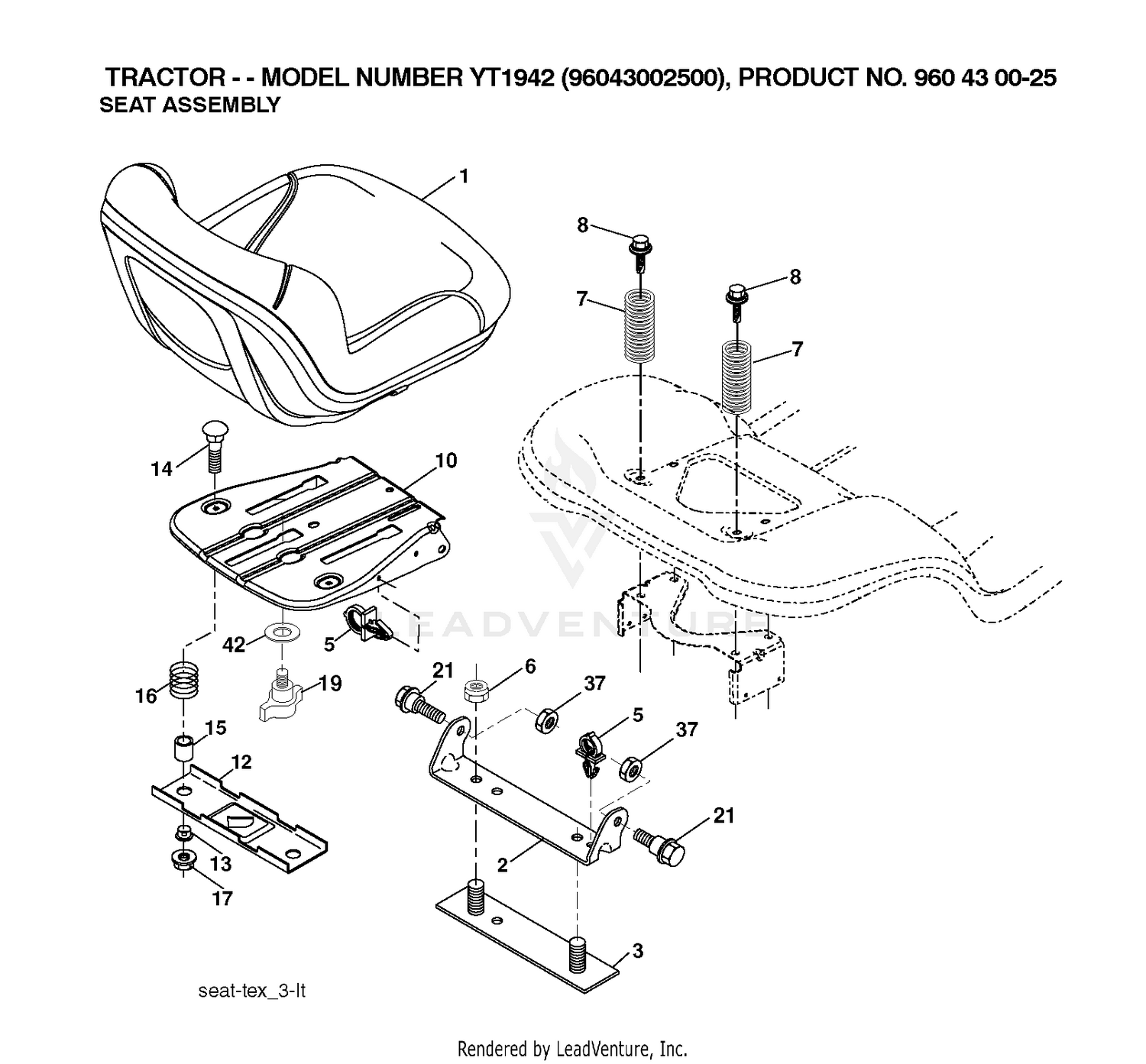

| Ref | Part Number | Description |
|---|
| 1 |
532439819 |
SEAT.TH130.GREY.HUSQ.TEX This part replaces 532197518. Price: $209.99 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
121-3611 |
NUT-HEX, FLEXTOP Price: $4.44 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
95-8905-01 |
FORK-REAR Price: $838.31 |
| 8 |
325-3 |
SCREW-HH Price: $1.49 |
| 9 |
3255-2 |
WASHER-LOCK, EXT Price: $0.95 |
| 10 |
532441805 |
PAN.ASM.SEAT.SHORT.SLD.ADJ.TEX This part replaces 532199180. Price: $49.99 |
| 10 |
75-7730 |
WASHER-THRUST Price: $2.88 |
| 12 |
3274-93 |
SCREW-HSH Price: $3.39 |
| 12 |
532199370 |
BRKT.MNT.OPC.SW.SEAT. Price: $9.99 |
| 13 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
340-14 |
FITTING-HYD, 45 DEG Price: $42.29 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
95-8694 |
HYD MOTOR ASM Price: $1,616.38 |
| 19 |
105-1213 |
HOSE-HYD Price: $423.32 |
| 19 |
532199372 |
KNOB.SEAT.ADJ. Price: $5.99 |
| 20 |
105-1212 |
HOSE-HYD Price: $282.20 |
| 21 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
82-8170 |
CLAMP Price: $17.27 |
| 23 |
93-7960 |
SPACER Price: $5.67 |
| 24 |
93-7961 |
CLAMP-DRAIN, CASE Price: $12.42 |
| 25 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 26 |
107-7828 |
REAR CASTING ASM This part replaces 107-7828-03. Price: $1,128.44 |
| 27 |
3234-38 |
SCREW-HHF Price: $3.33 |
| 29 |
322-13 |
SCREW-HH Price: $2.73 |
| 37 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 42 |
529846501 |
SERVICE KIT WASHER.CUP.SEAT WA This part replaces 532199371. Price: $3.99 |
