| Ref | Part Number | Description |
|---|
| 1 |
156948 |

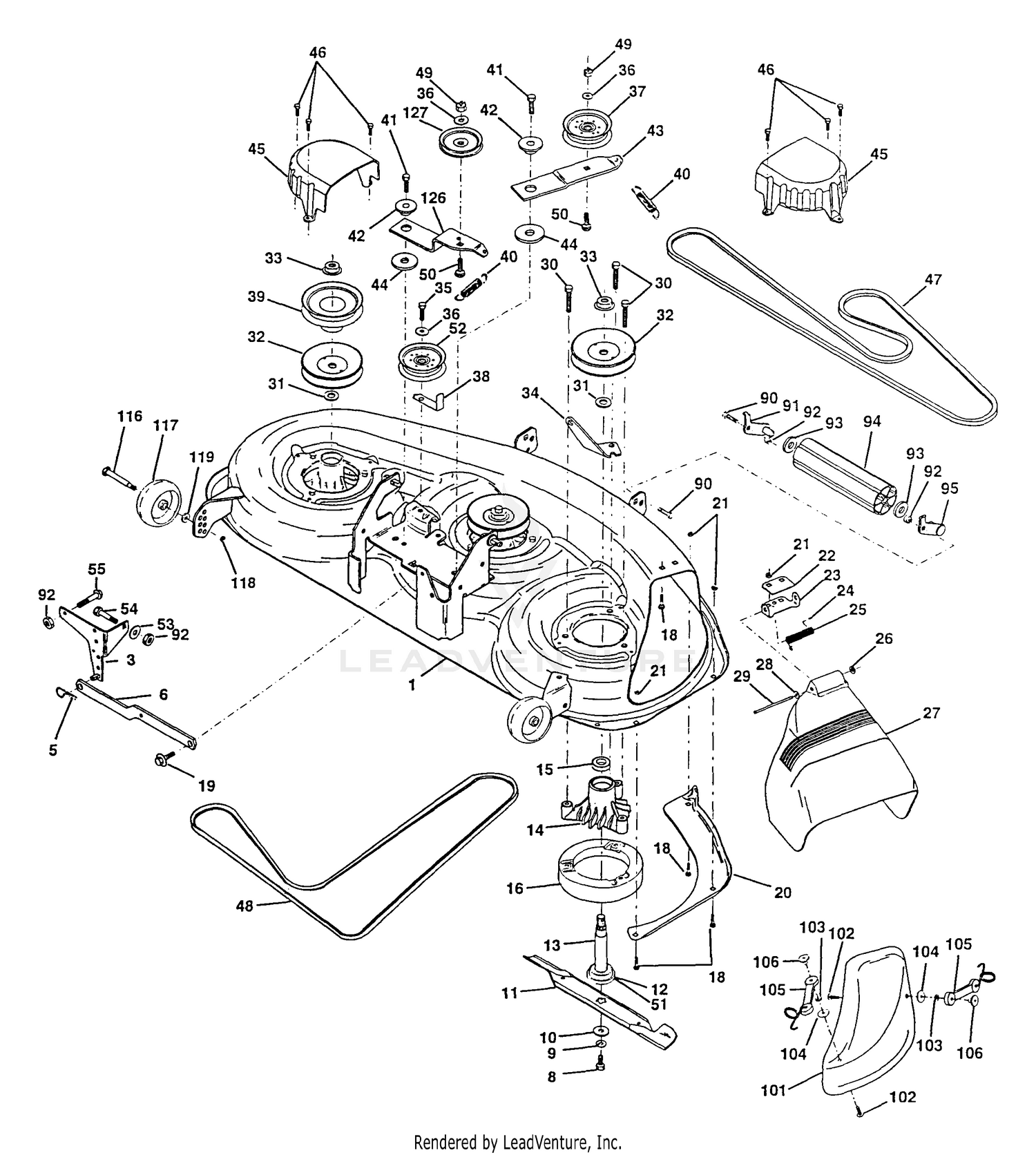

Deck Asm., Mower 46" Price: Call Us |
| 2 |
23-2780 |
PLOW WA *R Price: $1,543.43 |
| 3 |
138457 |
Bracket Asm., Sway Bar Price: Call Us |
| 3 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 4 |
3217-7 |
NUT-HEX Price: $0.28 |
| 5 |
20-9420-01 |
COMP SPRING This part replaces 20-9420. Price: $106.49 |
| 5 |
4939M |
Retainer Spring (AYP part number) Price: Call Us |
| 6 |
130832 |
Arm, Suspension, Rear (Sway Bar) (AYP part number) Price: Call Us |
| 6 |
23-2760 |
SPRING MOUNT WA *R Price: $94.93 |
| 7 |
23-2740 |
PIN-ACTUATING Price: $94.46 |
| 8 |
23-2770 |
ROD-ACTUATING Price: $97.95 |
| 8 |
850857 |
Bolt, Patched 3/8-24 x 1-1/4 Gr. 8 Price: Call Us |
| 9 |
10030600 |
Washer, Lock Hvy., Unplated 3/8 (AYP part number) Price: Call Us |
| 9 |
23-2790-01 |
BLADE-SCRAPER This part replaces 23-2790. Price: $323.46 |
| 10 |
140296 |
Washer, Hard Blade, Mower Vented Price: Call Us |
| 10 |
67-1300 |
DECAL This part replaces 18-6900. Price: $29.99 |
| 11 |
152443 |
Blade, 46" Mower Deck Price: Call Us |
| 11 |
323-7 |
SCREW-HH Price: $0.65 |
| 12 |
129895 |
Bearing, Bail, Mandrel #6204 Price: Call Us |
| 12 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 13 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 14 |
137152 |
Housing, Mandrel Price: Call Us |
| 14 |
283-40 |
PIN-CLEVIS Price: $2.85 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
23-2750 |
SCARIFIER 43 FIN *R Price: $779.94 |
| 16 |
140329 |
Stripper, Mower Round (AYP part number) Price: Call Us |
| 16 |
23-2810 |
LH ANCHOR WA Price: $274.79 |
| 17 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 18 |
23-2710 |
MOUNT WA *R Price: $594.78 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Hex Head, Shoulder 5/16-18 Price: Call Us |
| 19 |
23-2680 |
LIFT ARM WA *R Price: $759.10 |
| 20 |
145055 |
Baffle, Vortex Mower 46" Price: Call Us |
| 20 |
323-5 |
SCREW-HH Price: $0.41 |
| 21 |
23-2690 |
RH ANCHOR WA Price: $254.05 |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 UNC Price: Call Us |
| 22 |
134753 |
Stiffener, Bracket (AYP part number) Price: Call Us |
| 22 |
23-2730 |
LOCK COLLAR Price: $61.42 |
| 23 |
131267 |
Bracket, Deflector (AYP part number) Price: Call Us |
| 23 |
3246-1 |
SCREW-SET Price: $6.24 |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 24 |
23-2720 |
ADJ SLEEVE WA *R Price: $213.57 |
| 25 |
123713X |
Spring, Torsion, Deflector Price: Call Us |
| 25 |
3217-11 |
NUT-HEX Price: $0.95 |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 26 |
256-237 |
BUSHING Price: $14.99 |
| 27 |
157788 |
Shield, Deflector Mower Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
138776 |
Screw, Hex Head, Thdroll (AYP part number) Price: Call Us |
| 31 |
129963 |
Washer, Spacer Mower Vented (AYP part number) Price: Call Us |
| 32 |
153531 |
Pulley, Mandrel (AYP part number) Price: Call Us |
| 33 |
137266 |
Nut, Flg. Top Lock Cntr. 9/16 Price: Call Us |
| 34 |
144945 |
Anchor, Spring Deck 46" Price: Call Us |
| 35 |
17490628 |
Screw, Thdroll 3/8-16 x 1-3/4 Tytt Price: Call Us |
| 36 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 37 |
131494 |
Pulley, Idler, Flat (AYP part number) Price: Call Us |
| 38 |
156086 |
Keeper, Belt, Idler Price: Call Us |
| 39 |
144917 |
Pulley, Idler, Driven Price: Call Us |
| 40 |
137273 |
Spring, Secondary 44/46/50 Vent Price: Call Us |
| 41 |
17490620 |
Screw, Thdroll 3/8-16 x 1-1/4 Tytt Price: Call Us |
| 42 |
122052X |
Spacer, Retainer Price: Call Us |
| 43 |
144949 |
Arm, Idler Secondary Price: Call Us |
| 44 |
133943 |
Washer, Hardened (AYP part number) Price: Call Us |
| 45 |
145059 |
Cover, Mandrel Deck Price: Call Us |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 47 |
144959 |
V-Belt, Mower, Secondary Price: Call Us |
| 48 |
139573 |
V-Belt, Mower, Primary Price: Call Us |
| 49 |
73680600 |
Nut, Crownlock 3/8-16 UNC Price: Call Us |
| 50 |
72110612 |
Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 51 |
153390 |
Washer, Felt Price: Call Us |
| 52 |
156493 |
Pulley Idler 46 Pri. Drive (AYP part number) Price: Call Us |
| 53 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 54 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 55 |
72140608 |
Bolt Rdhd Sqnk 3/8-16 unc x 1 (AYP part number) Price: Call Us |
| 90 |
74760616 |
Bolt, Fin, Hex 3/8-16 UNC x 1 Price: Call Us |
| 91 |
132274 |
Bracket, Asm Noseroller, LH (AYP part number) Price: Call Us |
| 92 |
73800600 |
Nut, Lock, Hex w/Ins 3/8-16 UNC Price: Call Us |
| 93 |
19171416 |
Washer 17/32 x 7/8 x 16 Ga. Price: Call Us |
| 94 |
132264 |
Roller, Nose 38 & 42 (AYP part number) Price: Call Us |
| 95 |
132273 |
Bracket, asm Noseroller RH (AYP part number) Price: Call Us |
| 101 |
145579 |
Cover, Mulching Price: Call Us |
| 102 |
71161010 |
Screw (AYP part number) Price: Call Us |
| 103 |
10071000 |
Washer, Lock #10 Price: Call Us |
| 104 |
19061216 |
Washer Price: Call Us |
| 105 |
130758 |
Latch Asm. Bagger Price: Call Us |
| 106 |
2029J |
Nut, Weld Price: Call Us |
| 116 |
146851 |
Bolt, Shoulder Price: Call Us |
| 117 |
146850 |
Gauge Wheel Price: Call Us |
| 118 |
73930600 |
Nut, Centerlock 3/8-16 UNC Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 126 |
144948 |
Arm, Idler, Primary Deck 46" Price: Call Us |
| 127 |
146763 |
Pulley, Idler, V-Groove Dim. 4.25 Price: Call Us |
