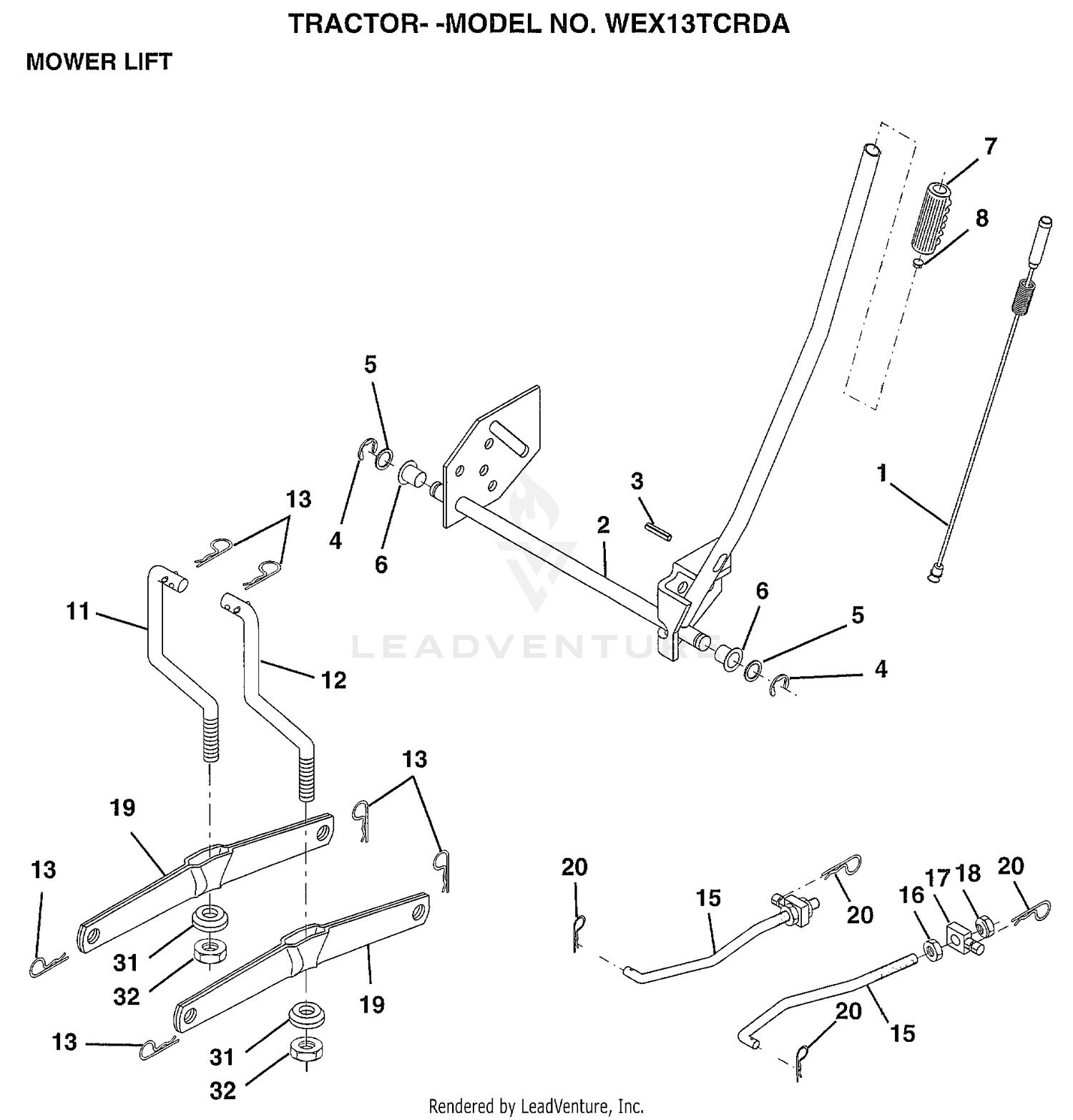

| Ref | Part Number | Description |
|---|
| 1 |
159460 |
WIRE ASM W.SPRING Price: Call Us |
| 1 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 2 |
69-8890 |
CAP-SPINDLE Price: $13.32 |
| 3 |
105767X |
PIN-GROOVE LT Price: Call Us |
| 3 |
32151-10 |
RING-RETAINING Price: $0.81 |
| 4 |
12000002 |
SUB= 2225J Price: Call Us |
| 4 |
256-304 |
WASHER-THRUST Price: $3.94 |
| 5 |
19211621 |
WASHER Price: Call Us |
| 5 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 6 |
120183X |
NYLON BEARING Price: Call Us |
| 6 |
82-9850-03 |
AXLE-REAR Price: $1,614.33 |
| 7 |
109413X |
GRIP Price: Call Us |
| 7 |
93-0311-03 |
SPINDLE-WHEEL, LH Price: $378.60 |
| 8 |
124526X |
SUB= 125925X Price: Call Us |
| 9 |
117-8969 |
HUB ASM This part replaces 69-2960-03. Price: $336.24 |
| 10 |
93-0310-03 |
SPINDLE-WHEEL, RH Price: $584.69 |
| 11 |
106-6895-03 |
BALL JOINT ASM This part replaces 69-9810-03. Price: $258.08 |
| 11 |
165829 |
LINK.LIFT.LH.CRD Price: Call Us |
| 12 |
165831 |
LINK.LIFT.RH.CRD Price: Call Us |
| 12 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 13 |
23-7270 |
NUT-LUG Price: $10.37 |
| 13 |
4939M |
SUB= 85902 Price: Call Us |
| 14 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 15 |
127218 |
LINK.FRONT Price: Call Us |
| 15 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 16 |
73350800 |
NUT Price: Call Us |
| 16 |
82-9210 |
SHAFT-PIVOT Price: $187.73 |
| 17 |
130171 |
TRUNION Price: Call Us |
| 17 |
3220-7 |
NUT-JAM Price: $4.09 |
| 18 |
73680800 |
NUT LTV Price: Call Us |
| 18 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 19 |
139868 |
ARM SUSP REAR Price: Call Us |
| 19 |
60-3670 |
PIN Price: $12.56 |
| 20 |
163552 |
RETAINER SPRING Price: Call Us |
| 20 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 21 |
58-6520 |
DECAL-GREASE Price: $2.57 |
| 22 |
115-8014 |
CYLINDER-HYDRAULIC This part replaces 77-4800. Price: $1,015.97 |
| 23 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 24 |
48-6660 |
WASHER Price: $5.22 |
| 25 |
48-6640 |
BEARING Price: $10.04 |
| 28 |
32136-13 |
NUT-SHH Price: $2.85 |
| 30 |
69-9870 |
WIDE WHEEL AND 6-PLY TIRE ASM Price: $513.71 |
| 31 |
140302 |
BEARING PVT LH Price: Call Us |
| 32 |
110-9719-03 |
TIE ROD ASM This part replaces 82-9260-03. Price: $380.21 |
| 35 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 36 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 37 |
340-54 |
ELBOW-45 DEG Price: $40.72 |
| 38 |
69-2980 |
SEAL Price: $33.94 |
| 39 |
254-106 |
CONE-BEARING, TAPERED Price: $19.51 |
| 43 |
254-92 |
CONE-BEARING, OUTER Price: $15.84 |
| 44 |
69-2970 |
CAP-HUB Price: $20.74 |
| 45 |
3210-7 |
SCREW-HH Price: $0.61 |
