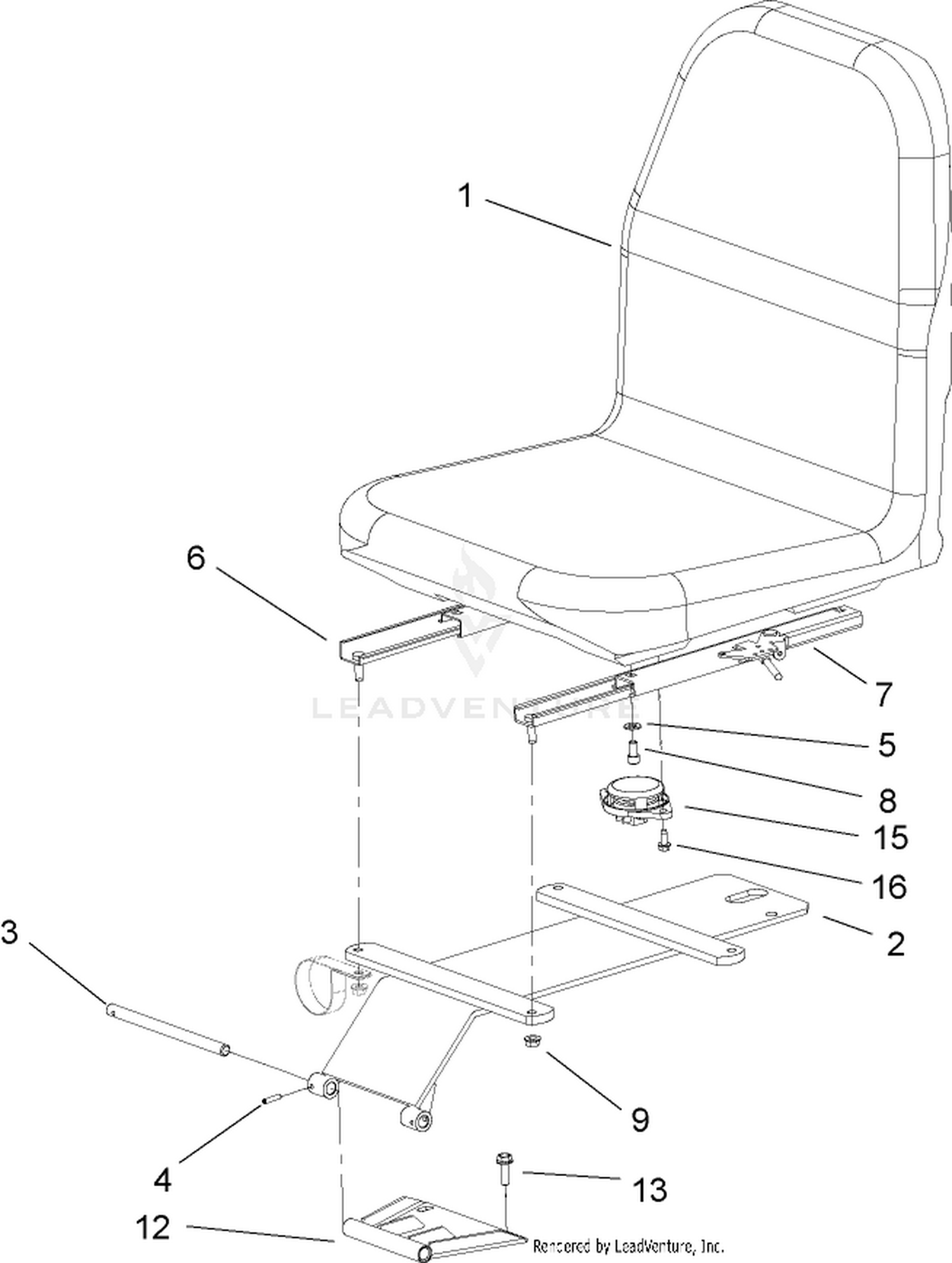

Standard Seat Kit Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-4620 | SEAT Price: $273.15 |
| 2 | 93-1361-01 | SUPPORT-SEAT Price: $297.11 |
| 3 | 93-1359 | SHAFT-SEAT PIVOT Price: $21.96 |
| 4 | 32121-4 | PIN-ROLL, SLOTTED Price: $3.49 |
| 5 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 6 | 51-0780 | SLIDER-SEAT Price: $116.02 |
| 7 | 51-0790 | ADJUSTER-SEAT, LH Price: $127.92 |
| 8 | 3274-12 | SCREW-HSH Price: $0.81 |
| 9 | 32128-25 | NUT-HF Price: $3.19 |
| 12 | 86-9920-01 | SEAT PIVOT ASM Price: $81.82 |
| 13 | 3234-17 | SCREW-HHF Price: $0.72 |
| 15 | 92-6282 | SWITCH-SEAT Price: $31.99 |
