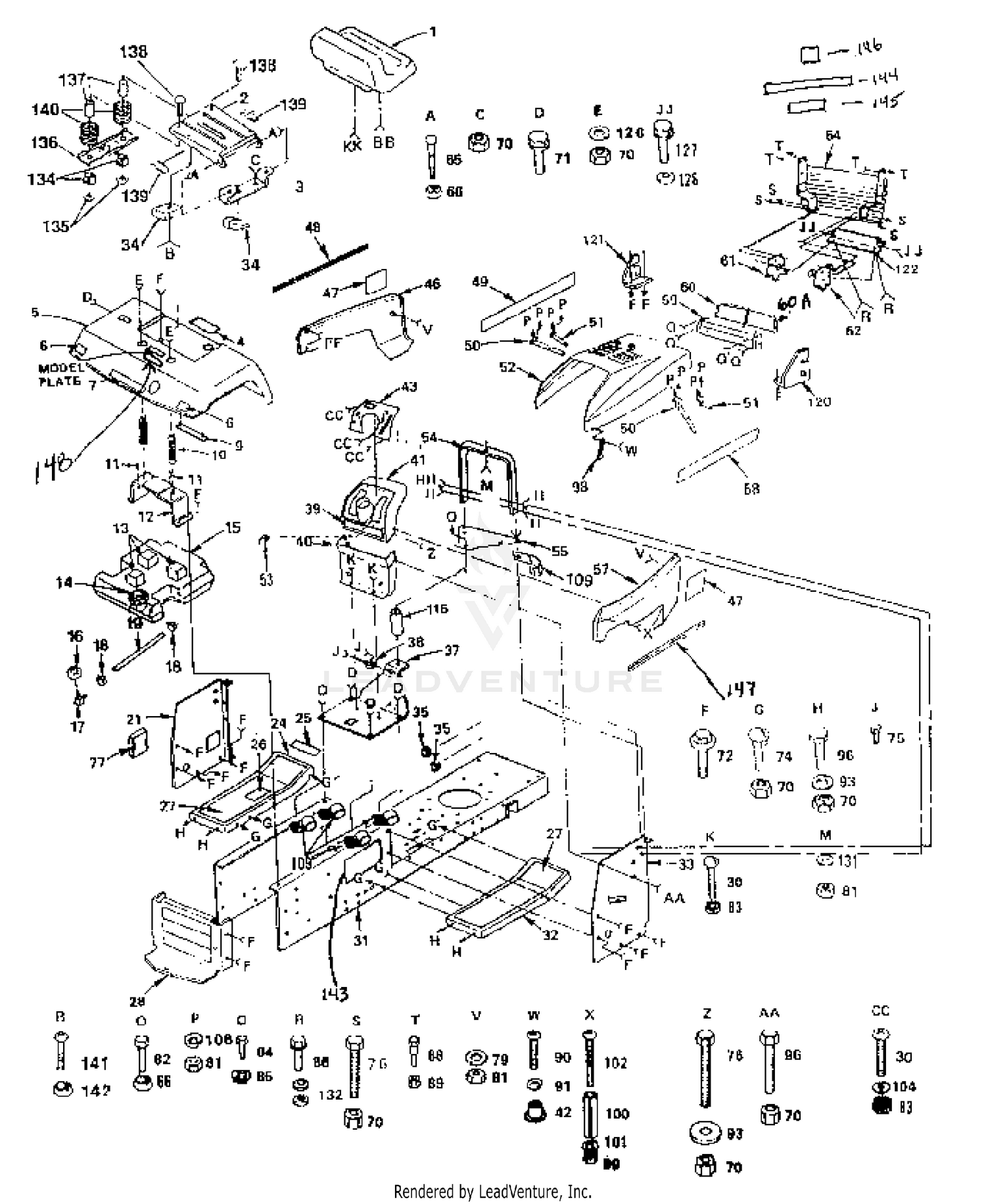

| Ref | Part Number | Description |
|---|
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532124186. Price: $219.99 |
| 1 |
808440 |
Cylinder Assembly Price: Call Us |
| 2 |
532124294 |
PAN SEAT Price: $14.69 |
| 2 |
808534 |
Bushing-Seal Kit Price: Call Us |
| 3 |
532126656 |
BRKT,SEAT PIVOT This part replaces 532105513. Price: $5.46 |
| 4 |
532126681 |
DECAL NLA Price: $9.96 |
| 5 |
532121642 |
FENDER Price: $131.32 |
| 6 |
532106202 |
REFLECTOR-TAIL YT Price: $3.99 |
| 7 |
532125584 |
DECAL NLA Price: $24.01 |
| 8 |
807795 |
Breather Assembly Price: Call Us |
| 9 |
532140675 |
STRAP This part replaces 532105511. Price: $5.99 |
| 10 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 10 |
805751 |
Screw Price: Call Us |
| 11 |
532105531 |
NUT-PUSH YT Price: $2.99 |
| 11 |
806083 |
Tube-Breather Price: Call Us |
| 12 |
532183569 |
BRACKET ASM., FENDER This part replaces 532105509. Price: $9.99 |
| 12 |
806190 |
Gasket-Crankcase Price: Call Us |
| 13 |
532006431 |
PAD-SPACER T Price: $2.38 |
| 14 |
532124462 |
FUEL CAP ASS'Y Price: $15.99 |
| 15 |
532106020 |
FUEL TANK LT Price: $55.00 |
| 15 |
805048 |
Plug-Oil Drain Price: Call Us |
| 16 |
532003645 |
BUSHING OUTLET T Price: $3.99 |
| 17 |
532008710 |
FUEL TANK STEM GT Price: $2.52 |
| 17 |
805754 |
Ball Bearing Price: Call Us |
| 18 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 18 |
808502 |
Cover-Crankcase Price: Call Us |
| 19 |
587044808 |
HOSE.1/4".LOW.PERM.FUEL.LN.8" This part replaces 863083730. Price: $5.99 |
| 21 |
532124118 |
PANEL DASH LH NLA Price: $17.94 |
| 22 |
805696 |
Screw-Hex. Price: Call Us |
| 24 |
532147203 |
FOOT REST LH This part replaces 532105465. Price: $9.15 |
| 25 |
532121215 |
DECAL DRIVE BELT Price: $11.61 |
| 26 |
532108592 |
DECAL HYT Price: $7.00 |
| 27 |
532108256 |
PAD FOOTREST T Price: $25.99 |
| 28 |
532145009 |
KIT.DRAWBAR.SERVICE This part replaces 532121306. Price: $44.99 |
| 31 |
532121278 |
CHASSIS NLA Price: $114.06 |
| 32 |
532145243 |
FOOTREST LT/YT/GT RH This part replaces 532105464. Price: $9.15 |
| 33 |
532110828 |
PANEL LT NLA Price: $17.13 |
| 34 |
532124967 |
CLIP T This part replaces 532004171. Price: $5.46 |
| 35 |
532009151 |
SNAP BUSHING T This part replaces 532110436. Price: $2.99 |
| 37 |
532121195 |
SADDLE This part replaces 532124766. Price: $32.96 |
| 38 |
532155108 |
KIT.BUSHING.STEERING. This part replaces 532124720. Price: $6.99 |
| 39 |
532109820 |
DECAL YT Price: $5.46 |
| 40 |
532104805 |
DASH LOWER YT NLA Price: $34.49 |
| 41 |
532140452 |
DASH This part replaces 532124182. Price: $32.53 |
| 42 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 43 |
532123865 |
PLATE,DASH Price: $13.03 |
| 46 |
532125009 |
PANEL,SIDE LH Price: $39.02 |
| 47 |
532125588 |
DECAL,SIDE PANEL Price: $3.33 |
| 49 |
532124297 |
DECAL NLA Price: $20.48 |
| 50 |
532106784 |
STRAP ASSY LT Price: $82.19 |
| 51 |
532104618 |
STRAP ASSY LT Price: $82.19 |
| 52 |
532125454 |
HOOD.HUSQVARNA.ORANGE This part replaces 532125007. Price: $361.99 |
| 53 |
532005479 |
PLUG BUTTON T Price: $4.99 |
| 54 |
532124130 |
SUPPORT ASS'Y Price: $12.22 |
| 55 |
532106965 |
PLATE SUPPORT T NLA Price: $10.37 |
| 57 |
532140677 |
SIDE PANEL RH This part replaces 532125008. Price: $39.61 |
| 58 |
532124298 |
DECAL Price: $61.69 |
| 60 |
532157068 |
LENS LH This part replaces 532124250. Price: $13.99 |
| 60A |
532157069 |
LENS.RH.HUSQVARNA.YTGT.CL This part replaces 532124251. Price: $12.99 |
| 61 |
532124529 |
SUPPORT This part replaces 532124288. Price: $26.41 |
| 62 |
532124528 |
SUPPORT This part replaces 532124504. Price: $13.00 |
| 64 |
532157236 |
GRILLE.ASM.HUSQVARNA.YTGT This part replaces 532124573. Price: $119.99 |
| 65 |
532139888 |
BOLT.SHOULDER.5/16-18 This part replaces 532105529. Price: $3.99 |
| 74 |
872140606 |
Bolt - Carriage 3/8-16 x 3/4 Price: $4.99 |
| 77 |
532121794 |
COVER ACCESS Price: $3.99 |
| 84 |
91488 |
Plug-Oil Price: Call Us |
| 90 |
871191008 |
SCREW.PNHD.10-24 This part replaces 874191008. Price: $7.99 |
| 98 |
532109808 |
LATCH.HOOD. Price: $5.99 |
| 99 |
873271000 |
NUT This part replaces 873731000. Price: $2.99 |
| 100 |
532007206 |
SPACER LT Price: $5.99 |
| 109 |
532002751 |
CLIP T Price: $2.42 |
| 113 |
532127018 |
BOLT,SHOULD This part replaces 532121144. Price: $4.99 |
| 116 |
532121236 |
SPACER Price: $2.38 |
| 116 |
806191 |
Seal-O-Ring Price: Call Us |
| 120 |
532110853 |
SUPPORT RH YTH Price: $3.74 |
| 121 |
532110852 |
SUPPORT LH YTH Price: $3.79 |
| 123 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 130 |
532146525 |
NUT.WING.LCK.NYL.NOTCH.1/4-20 This part replaces 873490400. Price: $3.99 |
| 134 |
532121248 |
BUSHING Price: $4.99 |
| 136 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 137 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 139 |
532121251 |
STRIP FORM Price: $5.46 |
| 140 |
532121250 |
SPRING Price: $3.99 |
| 143 |
532125947 |
DECAL,FRAME Price: $3.33 |
| 144 |
532126036 |
DECAL,GRILL STRIP Price: $3.33 |
| 145 |
532126039 |
DECAL,GRILL HUSQ Price: $3.33 |
| 146 |
532125989 |
DECAL GRILL HUSQ NLA Price: $13.98 |
| 147 |
532126034 |
DECAL,SIDE PANEL Price: $3.33 |
| 166 |
805073 |
Stud-Hex. Drive Price: Call Us |
| 188 |
805247 |
Screw Price: Call Us |
| 189 |
805449 |
Washer Price: Call Us |
| 523 |
807977 |
Dipstick Price: Call Us |
| 525 |
807584 |
Tube-Oil Fill Price: Call Us |
| 552 |
805412 |
Bushing-Govemor Shaft Price: Call Us |
| 552A |
805413 |
Bushing-Govemor Shaft Price: Call Us |
| 572 |
805197 |
Baffle-Oil Price: Call Us |
| 614 |
806096 |
Pin-Cotter Price: Call Us |
| 616 |
807596 |
Fork-Govemor Price: Call Us |
| 634 |
805416 |
Seal-Governor Price: Call Us |
| 718 |
805103 |
Pin-Dowel Price: Call Us |
| 982 |
805030 |
Screw Price: Call Us |
| 1027 |
492932 |
Filter-Oil Price: Call Us |
