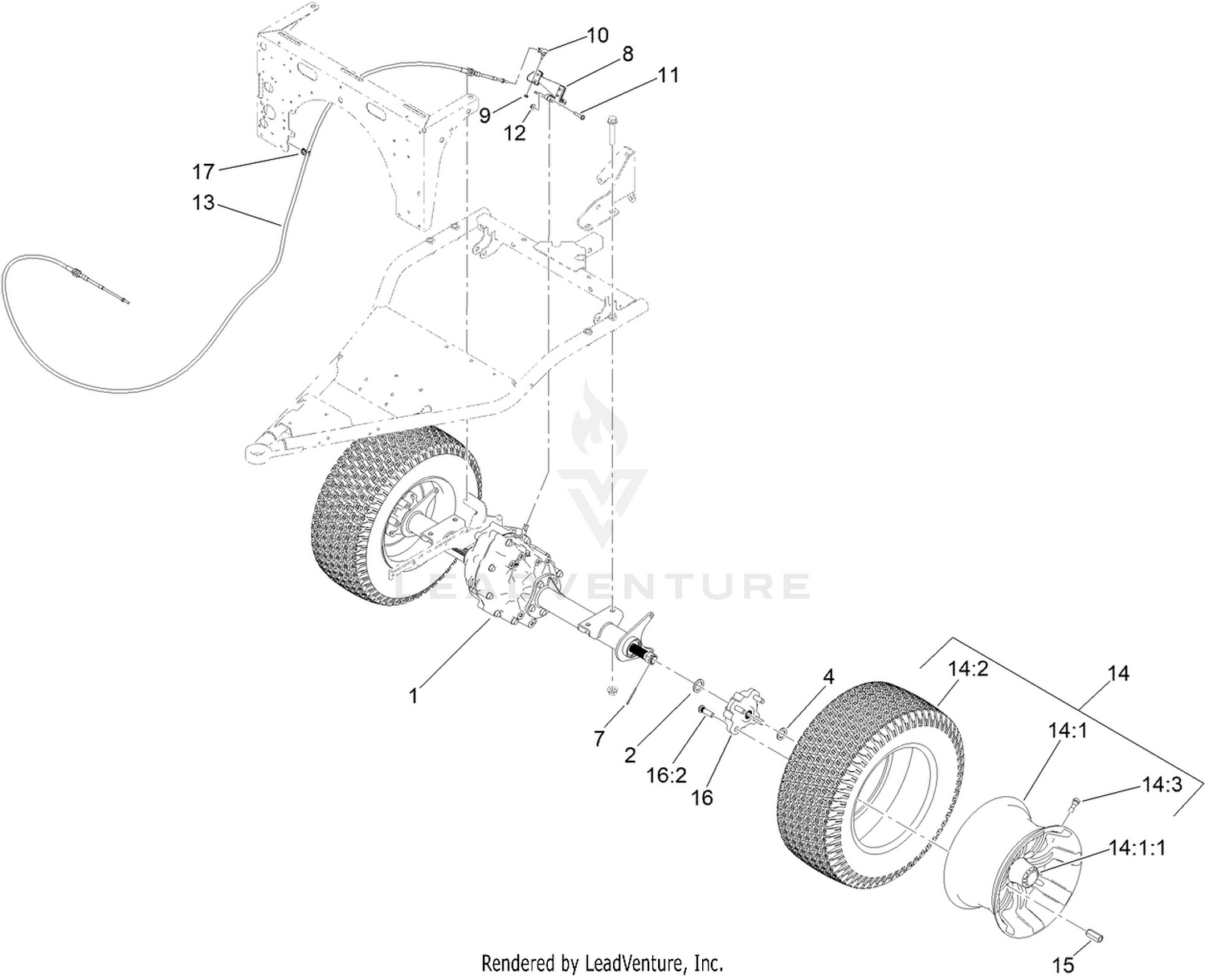

Rear Wheel and Transaxle Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 131-3486 | TRANSAXLE Price: $2,942.00 |
| 2 | 131-8570 | SPACER-HARDENED Price: $2.24 |
| 4 | 3-7898 | WASHER-THRUST Price: $1.47 |
| 7 | 1-806800 | PIN-COTTER Price: $1.35 |
| 8 | 133-7260-03 | ARM-SHIFT Price: $53.58 |
| 9 | 3296-27 | NUT-LOCK, NI Price: $0.27 |
| 10 | 2411-38 | JOINT-BALL Price: $21.96 |
| 11 | 132-6777 | SCREW-TTH Price: $0.95 |
| 12 | 104-7201 | NUT-HF Price: $0.69 |
| 13 | 127-8897 | CABLE-SHIFT Price: $160.80 |
| 14 | 147-2763 | AL WHEEL AND TIRE ASM Price: $309.59 |
| 15 | 139-3603 | NUT-LUG Price: $3.99 |
| 16 | 140-9951 | REAR HUB ASM Price: $87.60 |
