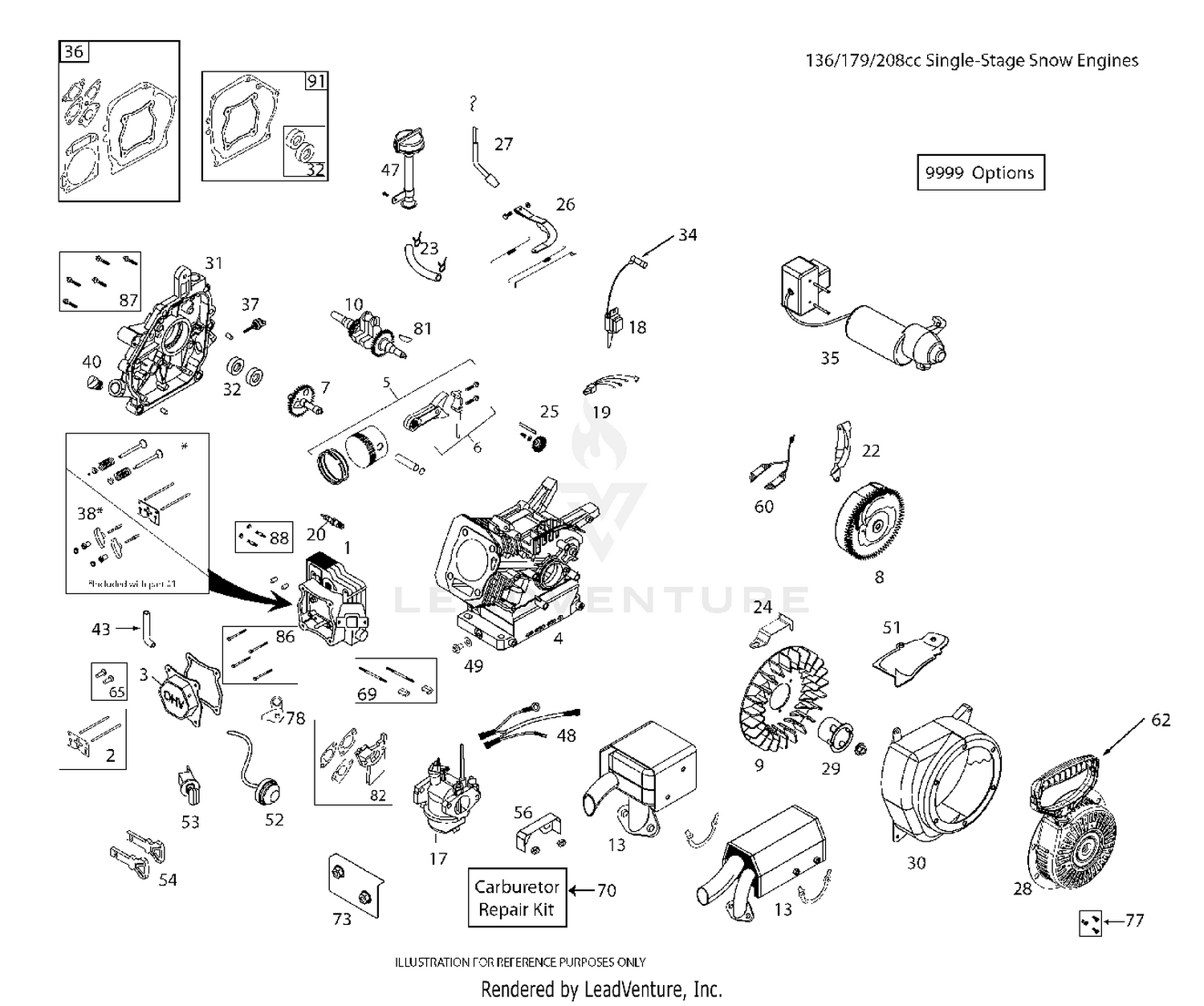

| Ref | Part Number | Description |
|---|
| 1 |
532420578 |
CYLINDR.HEAD.SRV.KIT Price: $149.99 |
| 2 |
532420579 |
KIT.PUSH.ROD.SRV(SK208-1001) Price: $22.99 |
| 3 |
587176901 |
VALVE COVER LCT 179/208 This part replaces 532420580. Price: $17.99 |
| 4 |
532436567 |
CYLINDER.ASM.SKSN0001.2 Price: $329.99 |
| 5 |
532420582 |
KIT.PISTON.SRV(SK208-1400) Price: $119.99 |
| 6 |
532420583 |
KIT.CONNECT.ROD.SRV(SK208-1500 Price: $17.99 |
| 7 |
532420584 |
KIT.CAMSHAFT.SRV(SK208-1600) Price: $24.99 |
| 8 |
532429235 |
FLYWHL.ASSY.ELECT.(SKSN0405) Price: $99.99 |
| 9 |
532420586 |
KIT.COOLNG.FAN.SERV(SK208-4000 Price: $3.99 |
| 10 |
584362101 |
CRNKSHFT-KYD#14.208CCSKSNO8001 This part replaces 532446642. Price: $59.99 |
| 13 |
532444277 |
MUFFLER.ASM.LCT.208CC.SS Price: $49.99 |
| 17 |
585020403 |
CARB.SS.W/O.SPACER.208CC.LCT This part replaces 532437122. Price: $59.99 |
| 20 |
532424939 |
SPARK.PLUG(2083810) Price: $17.99 |
| 22 |
532424975 |
SHLD.ELEC.START.FLY(SKSN-0605) Price: $3.99 |
| 23 |
532438014 |
KIT.FUEL.HOSE.208CC.SING/STAGE Price: $7.99 |
| 24 |
532429259 |
SPEED.CTRL.BRKT.(SKSN0150) Price: $6.99 |
| 25 |
532429646 |
GOVENOR.GEARS ASM(SK2082900) Price: $22.99 |
| 26 |
581768701 |
CARBURETTOR GOVERNOR LINK.ASM. Price: $5.99 |
| 27 |
532420602 |
KIT.GOVERNOR.CRANK(SK208-3100) Price: $4.99 |
| 28 |
585771201 |
STARTER.RECOIL.S/S SNO.78".ROP Price: $39.99 |
| 29 |
532436968 |
STRTER.CUP(NON-SLOT)SKSN0601.2 Price: $11.99 |
| 30 |
580960501 |
BLOWER.HOUSING.ELEC.START.LCT Price: $59.99 |
| 31 |
583630001 |
COVER.CRANKCASE.LCT.208CC This part replaces 532420606. Price: $39.99 |
| 32 |
532429599 |
SEAL KIT (2 PCS) Price: $11.99 |
| 34 |
532436966 |
SPARK.PLUG.BOOT.SNW,SKSN4691.1 Price: $11.99 |
| 35 |
532437124 |
STARTER.ASM.ELEC.(SKSNO411) Price: $229.99 |
| 36 |
532429601 |
GASKET.KIT.208CC(SK2084300.1) Price: $39.99 |
| 37 |
532420961 |
DIPSTICK SMALL Price: $8.99 |
| 38 |
532429691 |
ROCKER ARM KIT Price: $39.99 |
| 40 |
532429598 |
NON REMOVABLE PLUG Price: $7.99 |
| 43 |
580353401 |
TUBE.BREATHER.LCT.208 Price: $2.99 |
| 47 |
532444091 |
HIGH OIL-FILL TUBE ASSY Price: $5.99 |
| 48 |
532444276 |
HARNESS WIRE/WCDI IGN.SKSNO145 Price: $24.99 |
| 49 |
532435495 |
KIT.OIL.DRAIN.PLUG(SK2089911 Price: $6.99 |
| 51 |
583516301 |
SHIELD.CYLINGER.LCT.SKSN0608.1 This part replaces 532437119. Price: $19.99 |
| 52 |
532424949 |
PRIMER.BULB.WITH HOSE (SNOW) This part replaces 532437123. Price: $8.99 |
| 53 |
532424954 |
SWITH.KEY.ASSEM.SNOW.SINGLE.ST Price: $17.99 |
| 54 |
532443059 |
KEY SET(2 KEYS) SKSN0407.1 Price: $7.99 |
| 56 |
532429260 |
SHIELD.VAPOR.SNOW Price: $11.99 |
| 62 |
532443899 |
HANDLE.RECOIL.DELUXE.LCT This part replaces 532424968. Price: $6.99 |
| 65 |
581372801 |
TAPPET.KIT.LCT.208CC Price: $12.99 |
| 69 |
532424951 |
CARB.STUDS & COUPLING KIT.SNOW Price: $12.99 |
| 70 |
580353601 |
CARB.REPAIR.KIT.LCT.SK9900.1 Price: $74.99 |
| 73 |
532444275 |
SHIELD.INTAKE.(LCT.SKSN0140.1) Price: $11.99 |
| 77 |
532432688 |
BOLT.KIT.RECOIL.LCT.ALL.ENGINE Price: $1.99 |
| 78 |
581459301 |
BRACKET Price: $5.99 |
| 80 |
232810 |
Stud Price: Call Us |
| 81 |
4744501 |
Strap, Lifting Price: Call Us |
| 81 |
585297201 |
KEYS.FLYWHEEL.208/414CC.5PACK Price: $11.99 |
| 82 |
277091 |
Gasket Price: Call Us |
| 82 |
585020503 |
SPACER.CARBURETOR.208CC.LCT Price: $4.99 |
| 83 |
4805202 |
Gasket-Intake Price: Call Us |
| 84 |
4805404 |
Elbow-Exhaust Cylinder #1 Price: Call Us |
| 85 |
48_054_05 |
Elbow, Exh. Cyl. #2 Price: Call Us |
| 86 |
4809601 |
Cover-Exhaust Elbow Cyl. #1 Price: Call Us |
| 86 |
586327301 |
KIT.BOLT.CYLINDER.HEAD.(4PC) Price: $9.99 |
| 87 |
4809602 |
Cover-Exhaust Elbow Cyl. #2 Price: Call Us |
| 87 |
586326901 |
KIT.BOLT.CRANKCASE.COVER.6PC Price: $7.99 |
| 88 |
4816407 |
Manifold-Intake Price: Call Us |
| 88 |
586326801 |
STUD.MUFFLER.KIT.LCT Price: $3.99 |
| 89 |
X-80-1 |
Nut-Hex. Price: Call Us |
| 90 |
X45-3 |
Key, Woodruff Price: Call Us |
| 91 |
277595 |
Nut-Lock Price: Call Us |
| 91 |
587525701 |
COVER CRANKCASE GASKET Price: $14.99 |
| 92 |
4802514 |
Flywheel (Includes Magnets Ring Gear) Price: Call Us |
| 93 |
4816201 |
Screen-Grass Price: Call Us |
| 94 |
X-391-1 |
Elbow Price: Call Us |
| 95 |
X-426-9 |
Clamp Price: Call Us |
| 96 |
X-38642 |
Line, Fuel Price: Call Us |
| 97 |
47_041_04 |
Gasket Price: Call Us |
| 98 |
4855901 |
Pump, Fuel Price: Call Us |
| 99 |
277078 |
Gasket-Governor Housing Price: Call Us |
| 100 |
271151 |
Rod-Throttle Price: Call Us |
| 101 |
4520803 |
Ball Joint Price: Call Us |
| 102 |
X489-8 |
Rod, Breaker Push Price: Call Us |
| 103 |
220174 |
Gasket, Cover Price: Call Us |
| 104 |
220074 |
Diaphram Price: Call Us |
| 105 |
232535 |
Cover Price: Call Us |
| 106 |
271547 |
Spring Governor Price: Call Us |
| 107 |
275691 |
Screw Shoulder Price: Call Us |
| 108 |
277073 |
Gasket Price: Call Us |
| 109 |
277080 |
Lever-Throttle Price: Call Us |
| 110 |
A-277905 |
Housing, Breather (Includes Valve) Price: Call Us |
| 111 |
277431 |
Washer, Tension Price: Call Us |
| 112 |
4815002 |
Breaker Price: Call Us |
| 113 |
4819401 |
Ball Price: Call Us |
| 114 |
4875510 |
Kit-Clamp Price: Call Us |
| 115 |
B-277112 |
Governor Price: Call Us |
| 116 |
210281 |
Clip-Cable Price: Call Us |
| 117 |
230722 |
Condenser Price: Call Us |
| 118 |
235041-S |
Plug-Spark Price: Call Us |
| 119 |
236602 |
Connector Price: Call Us |
| 120 |
4815502 |
Connector Price: Call Us |
| 121 |
271694 |
Plate Coil Mounting Price: Call Us |
| 122 |
277375 |
Coil Price: Call Us |
| 123 |
4140301 |
Rectifier-Regulator Price: Call Us |
| 124 |
237878 |
Stator Price: Call Us |
| 125 |
4834803 |
Lead-Hi-Tension Price: Call Us |
| 126 |
4834804 |
Lead-Hi-Tension Price: Call Us |
| 127 |
4821702 |
Bracket, Coil Price: Call Us |
| 128 |
X-75-6 |
Plug Price: Call Us |
| 129 |
X-75-18 |
Plug, Pine Price: Call Us |
| 130 |
230125-S |
Pin-Dowel Price: Call Us |
| 131 |
277014 |
Gasket-Oil Pan Price: Call Us |
| 132 |
4819903 |
Pan, Oil Price: Call Us |
| 133 |
48_108_05 |
Ring Set (Std. .003) Price: Call Us |
| 134 |
4806712 |
Rod-Conn. (Std.) Price: Call Us |
| 135 |
235004 |
Retainer Price: Call Us |
| 136 |
4807406 |
Piston-Assy. (Std.)(Includes Pin Retainers) Price: Call Us |
| 137 |
X-101-6 |
Nut Price: Call Us |
| 138 |
X-212-3 |
Ball Steel Price: Call Us |
| 139 |
X-629-1 |
Palnut Price: Call Us |
| 140 |
270085 |
Clip-Oil Tube Price: Call Us |
| 141 |
277201 |
Tube-Oil Inlet Price: Call Us |
| 142 |
277202 |
Strainer-Oil Price: Call Us |
| 143 |
277694 |
Screw Price: Call Us |
| 144 |
4839320 |
Pump, Oil Price: Call Us |
| 145 |
5008901 |
Spring, Relief Valve Price: Call Us |
| 146 |
X-36-6 |
Pin-Cotter Price: Call Us |
| 147 |
X-6-11 |
Screw-H.C. Price: Call Us |
| 148 |
X-6-22 |
Screw-H.C. Price: Call Us |
| 149 |
X-55-6 |
Screw Price: Call Us |
| 150 |
X-75-2 |
Plug Price: Call Us |
| 151 |
X-379-9 |
Seal rear oil Price: Call Us |
| 152 |
277020 |
Gasket-Gear Cover Price: Call Us |
| 153 |
277021 |
Plate-Gear Cover Price: Call Us |
| 154 |
277022 |
Gasket-Gear Cover Plate Price: Call Us |
| 155 |
277086 |
Screw-H.C. Price: Call Us |
| 156 |
277493 |
Cover-Gear Price: Call Us |
| 157 |
277233 |
Filter-Oil Price: Call Us |
| 158 |
4802902 |
Adapter-Oil Filter Price: Call Us |
| 159 |
4804103 |
Gasket Price: Call Us |
| 160 |
277234 |
Nipple Price: Call Us |
| 4810806 |
Ring |
Set-.010 Price: Call Us 4810806 |
| 4810807 |
Ring |
Set-.020 Price: Call Us 4810807 |
| 4810808 |
Ring |
Set-.030 Price: Call Us 4810808 |
| 4852221 |
Short |
Block Price: Call Us 4852221 |
| 4875503 |
Gasket |
Set w/Seals Price: Call Us 4875503 |
