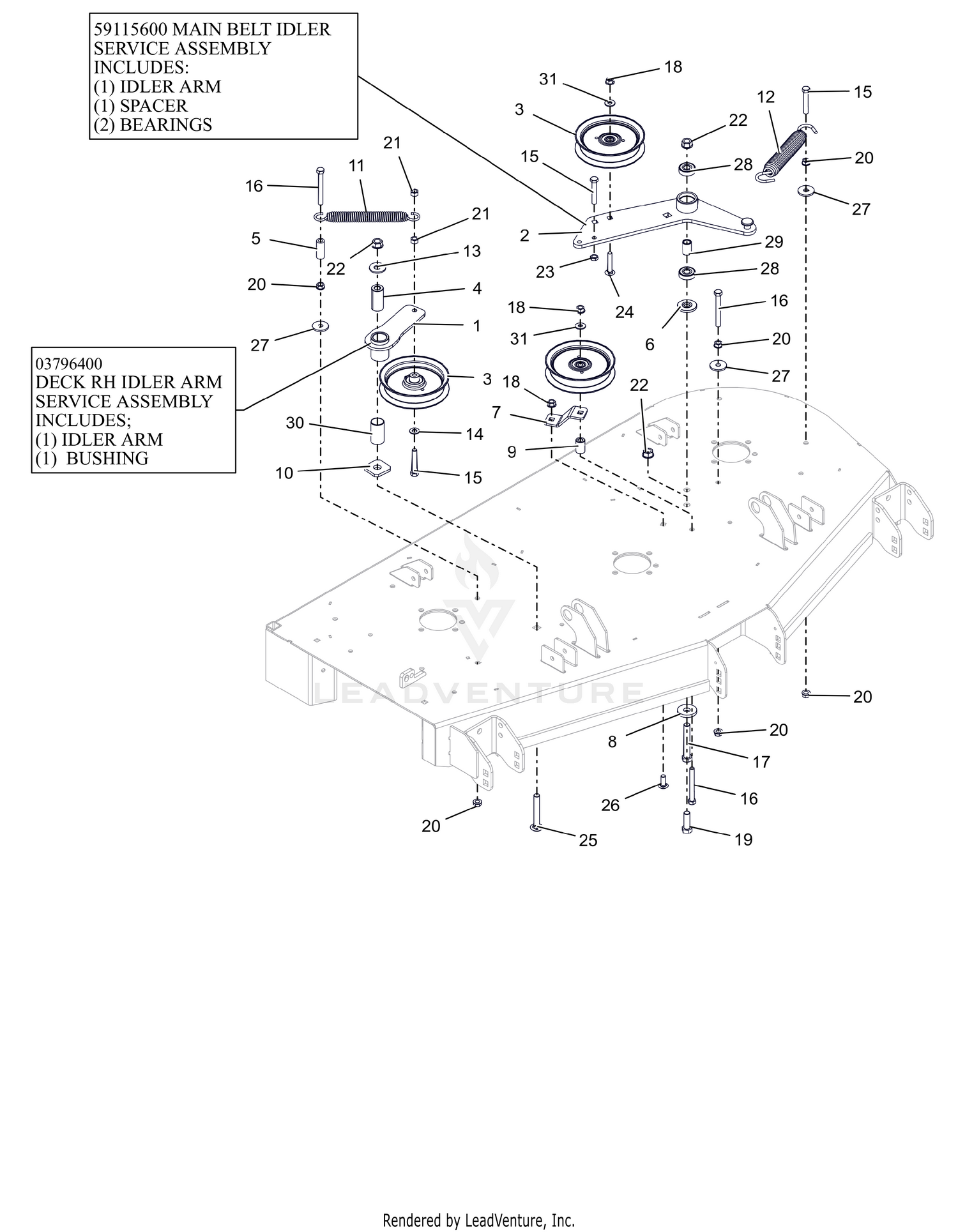

| Ref | Part Number | Description |
|---|
| 1 |
03774151 |
WMT, IDLER ARM - BLACK Price: $45.95 |
| 2 |
04985600 |
WLDMT, DECK PTO IDLR ARM Price: $69.45 |
| 3 |
07351200 |
IDLER- FLAT - 5.00" X .75" This part replaces 07345600. Price: $36.95 |
| 4 |
01581700 |
BSHG, SPCR .502X.997X2.03 PM Price: $5.95 |
| 5 |
05278000 |
HOSE, .38 X 1.65 Price: $1.95 |
| 6 |
04714600 |
SPACER, IDLER ARM Price: $5.95 |
| 7 |
04981859 |
PTO FIXED IDLER MTG BRKT-ORG Price: $7.45 |
| 8 |
06401213 |
WSHR-FL-STL 0.557X1.625X0.25 ZCC Price: $3.45 |
| 9 |
05501308 |
BUSHING, SLV .380X.750X1.190 Price: $4.45 |
| 10 |
06400829 |
WSHR-FLT .640X1.75X.250 Price: $3.95 |
| 11 |
08300728 |
SPRING- EXTENSION This part replaces 08300507. Price: $24.95 |
| 12 |
08300708 |
SPRING, EXTENSION Price: $18.95 |
| 13 |
06401012 |
WSHR,FLT .563X1.375X.109 ZCC Price: $2.45 |
| 14 |
06401013 |
WSHR,FLT .406X.812X.065 ZCC Price: $0.95 |
| 15 |
05901640 |
BLT,HEX .38-16X2.25 G5 ZCC Price: $3.95 |
| 16 |
05901817 |
BLT, HEX .38-16X3.25 G5 ZCC Price: $3.95 |
| 17 |
05901634 |
BLT,HEX .50-13X3.25 G5 ZCC Price: $3.45 |
| 18 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 19 |
05901631 |
BLT,HEX .50-13X1.50 G5 ZCC Price: $3.95 |
| 20 |
06500735 |
NUT, SPNLK-FLG .38-16 G5 ZCC Price: $1.45 |
| 21 |
06500825 |
NUT-LK-CTR .38-16 ZC120 Price: $0.95 |
| 22 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC Price: $0.95 |
| 23 |
06500910 |
NUT-JAM .375-16 G2 ZCC Price: $0.95 |
| 24 |
06200323 |
BLT,RHSSN.375-16X2.00 G5 ZCC Price: $2.45 |
| 25 |
06200339 |
BTL,RHSSN .500-13 X 3.25 G5 ZCC Price: $3.45 |
| 26 |
06200235 |
BLT,RHSSN .38-16X1.00 G5 ZCC Price: $1.45 |
| 27 |
06401121 |
WSHR,FLT .406X1.375X.135 ZCC Price: $5.45 |
| 28 |
05408000 |
BRG-BALL .500X1.38X.437 Price: $5.95 |
| 29 |
09357700 |
SPACER .510 X .867 X 1.1485 Price: $4.45 |
| 30 |
05501234 |
BSHG, 1.00X1.125X1.937 Price: $9.95 |
