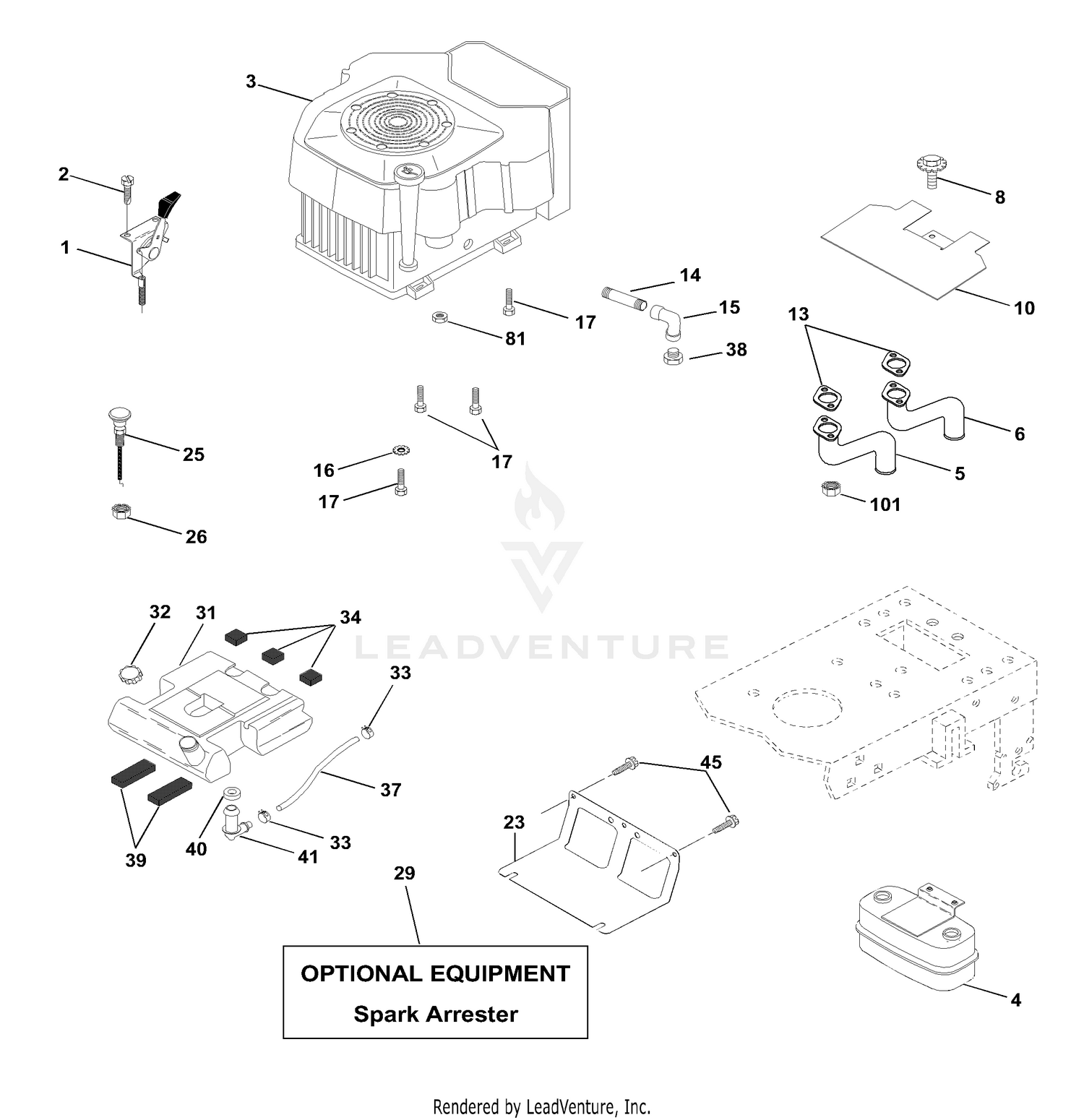

| Ref | Part Number | Description |
|---|
| 1 |
131017390 |
Injection Pump Price: Call Us |
| 1 |
532170863 |
CONTROL,TH/CH FLAG This part replaces 532155274. Price: $27.99 |
| 2 |
596582501 |
Bolts This part replaces 532171192. Price: $2.99 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 6 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $17.99 |
| 8 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532171376. Price: $219.99 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 14 |
813280336 |
Nipple, Pipe 3/8 NPT x 4-1/2 Price: $2.42 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
596238701 |
Washers This part replaces 532171217. Price: $3.99 |
| 17 |
532171564 |
Screw Thdrol 3/8-16 x 1-1/2 Price: Call Us |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
131406340 |
Atomiser Price: Call Us |
| 25 |
131446069 |
Nut Price: Call Us |
| 25 |
532145996 |
CONTROL, CHOKE Price: $19.99 |
| 26 |
131426210 |
Washer Price: Call Us |
| 26 |
873920600 |
Nut, Keps 3/8-24 UNF Price: $3.99 |
| 27 |
131446065 |
Body Price: Call Us |
| 28 |
131437250 |
Shim +.090mm Price: Call Us |
| 29 |
131446066 |
Spring Price: Call Us |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
131446070 |
Pin Price: Call Us |
| 31 |
131446068 |
Spacer Price: Call Us |
| 31 |
532151346 |
FUEL TANK 3.5G Price: $84.99 |
| 32 |
131416150 |
Nozzle Price: Call Us |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 39 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 40 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 532171154. Price: $3.99 |
| 81 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 532128861. Price: $2.99 |
