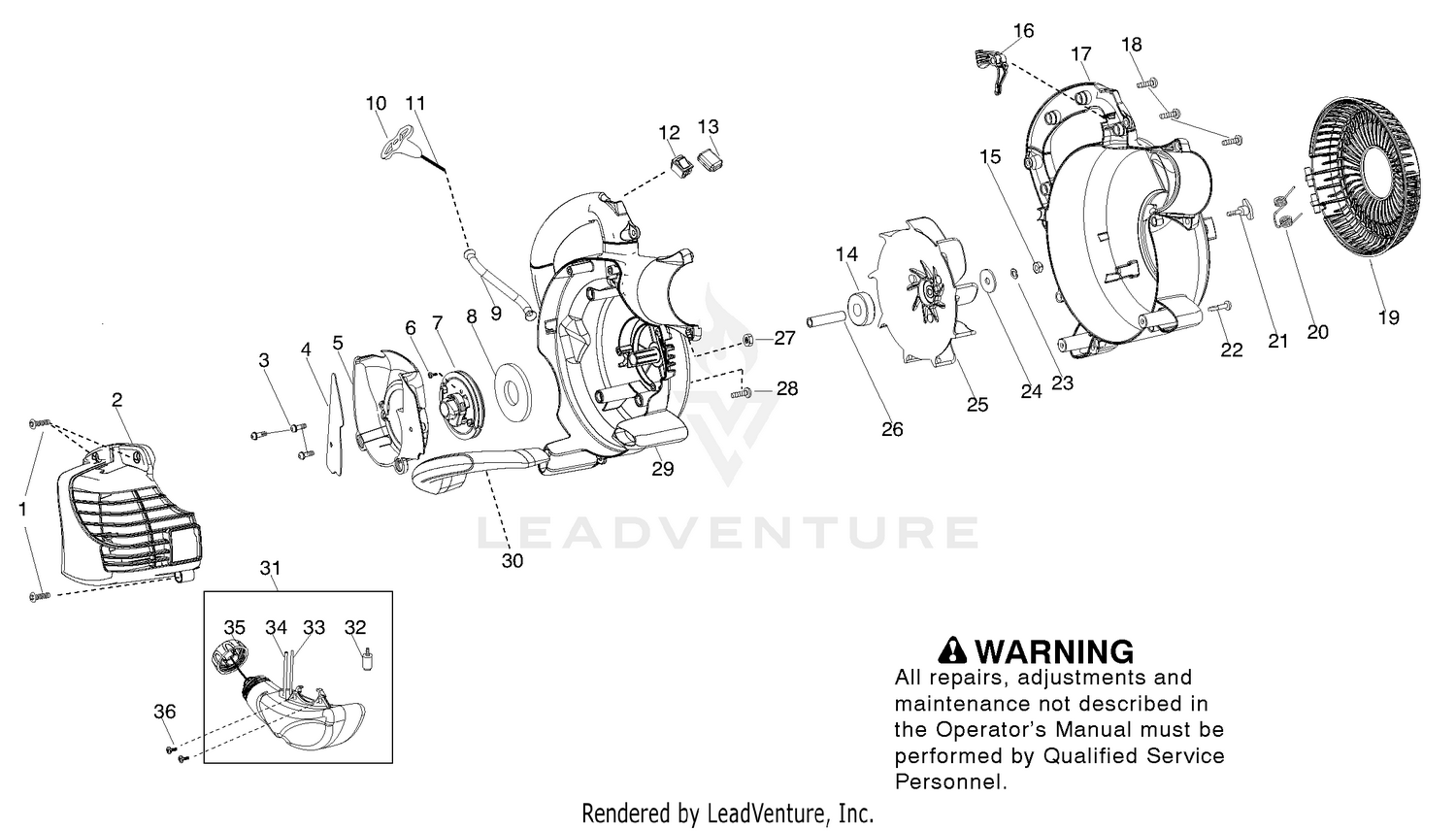

Starter
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530015814 | Screw Price: $1.49 |
| 2 | 545135806 | Assy - Engine Cover Price: $11.99 |
| 3 | 530015880 | Screw Price: $1.99 |
| 4 | 545134001 | Shield - Baffle Price: $3.99 |
| 5 | 545099101 | Baffle Price: $6.99 |
| 6 | 530016391 | Screw Price: $1.99 |
| 7 | 545081852 | Kit - Starter Pulley Price: $9.99 |
| 8 | 545008011 | KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 9 | 545107101 | Tube - Starter Rope Price: $5.99 |
| 10 | 530054834 | Handle - Starter Price: $1.99 |
| 10 | 98-9705 | STARTER ASM Price: $663.57 |
| 11 | 545081833 | Kit - Rope Price: $3.99 |
| 13 | 545128201 | Protector - Switch Price: $1.99 |
| 14 | 545099001 | Bearing Price: $3.99 |
| 15 | 530626605 | Nut Price: $1.99 |
| 16 | 545113803 | Trigger - Throttle Price: $6.99 |
| 18 | 530015814 | Screw Price: $1.49 |
| 19 | 545100801 | Door- Vac Price: $8.99 |
| 20 | 104-8608 | YOKE ASM Price: $437.88 |
| 20 | 545115601 | Spring - Vac Door Price: $2.99 |
| 21 | 545144501 | Knob - Blower Price: $2.99 |
| 22 | 530016406 | Screw - Handle Vac Price: $1.99 |
| 23 | 530092322 | Washer - Lock Price: $1.99 |
| 24 | 545109901 | Washer - Impeller Price: $1.99 |
| 25 | 545113601 | Assy-Impeller Price: $4.99 |
| 26 | 545113701 | Spacer - Flywheel Price: $2.99 |
| 27 | 530015197 | Nut Price: $1.99 |
| 28 | 530016386 | Screw Price: $5.99 |
| 30 | 545101201 | Handle - Vac Price: $8.99 |
| 30 | 98-7742 | ARMATURE ASM Price: $819.15 |
| 32 | 530095646 | Assy - Fuel Pickup Price: $2.69 |
| 33 | 530069247 | Kit - Fuel Line (Carb/Purge) Price: $3.69 |
| 34 | 530069216 | Kit - Fuel Line (Tank/Purge) Price: $3.99 |
| 35 | 530057973 | Assy - Fuel Cap W/Retainer Price: $7.99 |
| 36 | 530016445 | Screw - Fuel Tank Retainer Price: $1.99 |
| 40 | 98-7744 | BEARING Price: $35.64 |
| 50 | 98-7743 | BEARING Price: $37.48 |
| 60 | 99-8373 | CLUTCH-RUNNING, OVER Price: $691.80 |
| 70 | 99-8374 | FRAME-END, DRIVE Price: $73.04 |
| 80 | 105-3746 | MAGNETIC SWITCH ASM Price: $689.29 |
| 90 | 98-7748 | FRAME-END Price: $82.65 |
| 100 | 98-7749 | BRUSH HOLDER ASM Price: $91.05 |
| 110 | 98-7750 | SPRING-BRUSH Price: $2.38 |
| 120 | 98-7751 | GEAR Price: $43.51 |
| 130 | 98-7752 | RETAINER Price: $4.35 |
| 140 | 98-7753 | ROLLER Price: $1.00 |
| 150 | 98-7754 | SPRING Price: $4.70 |
| 160 | 98-7755 | BALL Price: $0.42 |
| 170 | 98-7756 | BOLT Price: $2.64 |
| 180 | 98-7757 | O-RING Price: $24.98 |
| 190 | 100-9240 | BOLT Price: $7.23 |
| 200 | 98-7758 | BOLT ASM Price: $4.90 |
| 210 | 99-8375 | COVER Price: $24.86 |
| 220 | 99-8371 | NUT-HEX Price: $3.75 |
| 230 | 98-9711 | CORD-SOLENOID, STOP Price: $12.05 |
| 240 | 99-8376 | NUT-HEX Price: $7.28 |
| 250 | 98-7759 | PIPE-DRAIN Price: $28.84 |
| 260 | 250-4 | TIE-CABLE This part replaces 98-9712. Price: $0.61 |
