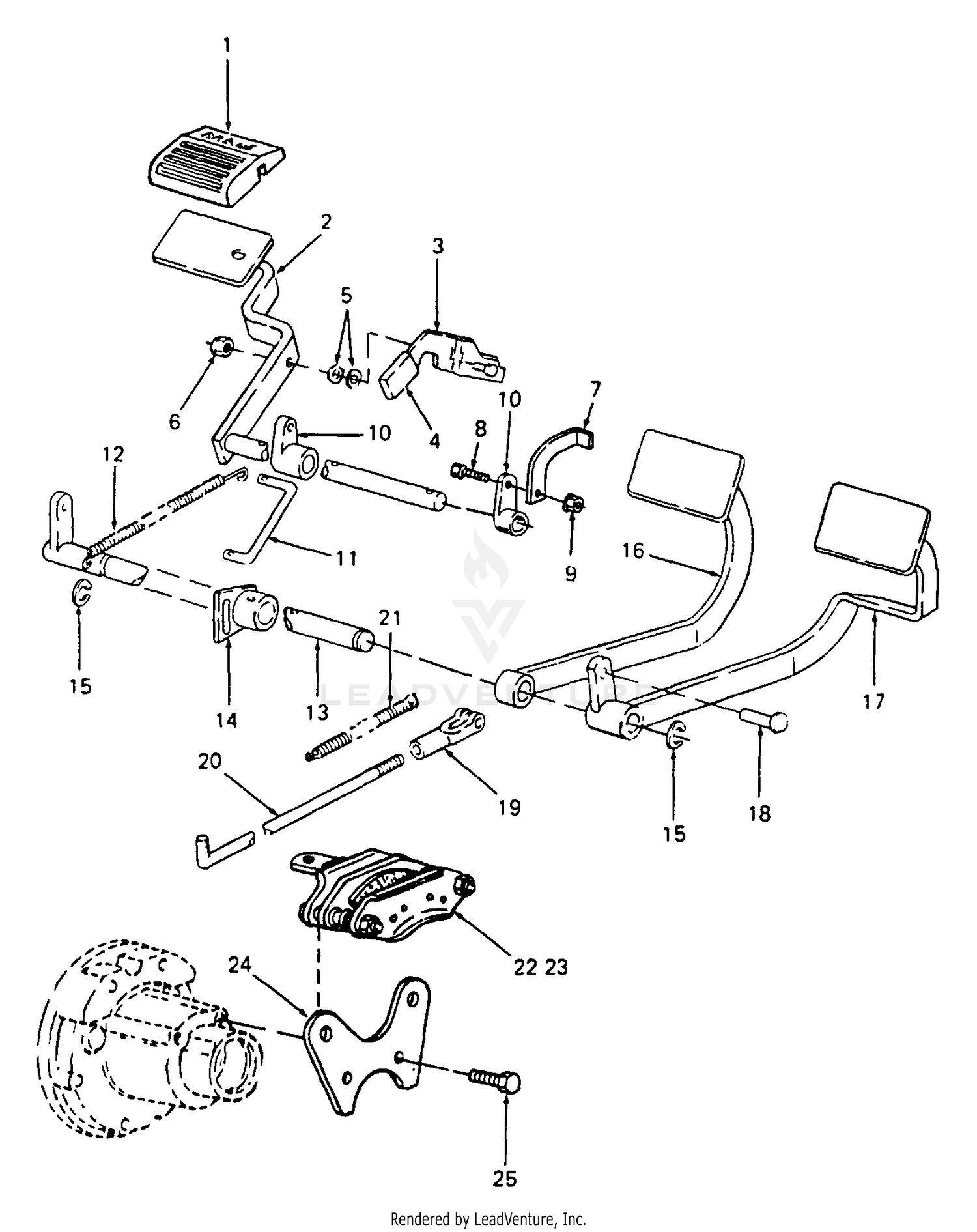

| Ref | Part Number | Description |
|---|
| 1 |
924-3000 |
BRAKE & CLUTCH PEDAL PAD This part replaces 724-3004. Price: $17.21 |
| 1 |
94-8102 |
DISCONTINUED Price: Call Us |
| 2 |
703-0848 |
PEDAL ASSY, BRAKE Not Available Price: |
| 3 |
703-1393 |
BRACKET, PARKING BRAKE Not Available Price: |
| 3 |
94-3055 |
CAP - LOWER, JOYSTICK Price: $26.29 |
| 4 |
920-3019 |
PARKING BRAKE GRIP Not Available This part replaces 720-3019. Price: |
| 4 |
94-3056 |
DISCONTINUED Price: Call Us |
| 5 |
736-3001 |
WAVE WASHER Not Available Price: |
| 5 |
94-3057 |
SPRING-COMPRESS,JOYSTICK Price: $15.18 |
| 6 |
712-0324 |
Nut, Hex Insert Lock, 1/4-20 Price: $3.38 |
| 6 |
94-3058 |
DISCONTINUED Price: Call Us |
| 7 |
3290-93 |
SCREW-HEAD, PAN Price: $0.25 |
| 7 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK This part replaces 580962301. Price: $7.99 |
| 7 |
703-2280-0637 |
START SWITCH BRACKET (POWDER BLACK) Not Available This part replaces 703-2280. Price: |
| 8 |
710-0216 |
Bolt, 3/8 X 3/4 Type 5 This part replaces 710-3000. Price: $3.93 |
| 8 |
94-8104 |
MICROSWITCH Price: $71.74 |
| 9 |
712-3005 |
Nut, Hex Flanged Lock, 3/8-16 GR5 Price: $5.99 |
| 9 |
94-6753 |
DISCONTINUED Price: Call Us |
| 9 |
98-2195 |
JOYSTICK Price: $520.10 |
| 10 |
3290-354 |
NUT-SPEED Price: $9.99 |
| 10 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $3.99 |
| 10 |
748-3006 |
BRAKE LEVER ROD Not Available Price: |
| 11 |
322-3 |
SCREW-HH Price: $0.79 |
| 11 |
747-3023 |
ROD-CENTER BRAKE Not Available Price: |
| 12 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 12 |
932-3010 |
EXTENSION SPRING 7.32LG x .50 O.D. Not Available This part replaces 732-3010. Price: |
| 13 |
703-0223 |
BRAKE SHAFT ASSEMBLY Not Available Price: |
| 13 |
84-3420 |
DECAL - NO RIDERS Price: $10.06 |
| 13 |
93-6689 |
DECAL-NO RIDERS This part replaces 75-5190. Price: $9.75 |
| 14 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 14 |
703-0225 |
ARM ASSEMBLY-PARK B Not Available Price: |
| 15 |
716-3001 |
Ring, Retaining Price: $3.96 |
| 16 |
703-0412 |
PEDAL ASSY, LH - BRAKE Not Available Price: |
| 17 |
703-0416 |
PEDAL ASSY, RH - BRAKE Not Available Price: |
| 17 |
93-1268 |
DECAL-HOC SELECTOR This part replaces 92-7528. Price: $31.62 |
| 17 |
94-4575 |
DECAL - HOC SEL, 6500, JA Price: $15.62 |
| 18 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 18 |
711-3037 |
Pin, Clevis, 3/8 Dia x 1.56 Lg Price: $4.04 |
| 19 |
3220-24 |
NUT-HEX Price: $0.96 |
| 19 |
719-3013 |
Clevis, Adjustment Price: $24.95 |
| 20 |
747-3022 |
BRAKE ROD Not Available Price: |
| 20 |
75-1010 |
SWITCH-REEL Price: $84.90 |
| 21 |
218-498 |
NUT-LOCK Price: $0.68 |
| 21 |
732-3026 |
EXTENSION SPRING Not Available Price: |
| 22 |
94-8103 |
DISCONTINUED Price: Call Us |
| 23 |
3217-26 |
NUT-HEX Price: $0.25 |
| 24 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 24 |
703-1787 |
BRACKET-BRAKE MTG Not Available Price: |
| 26 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 27 |
93-8497 |
DISCONTINUED Price: Call Us |
| 28 |
3250-31 |
SCREW-PPH Price: $0.25 |
| 29 |
3290-489 |
KNOB Price: $46.30 |
| 30 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 31 |
93-7484 |
CLUSTER-LAMP Price: $121.39 |
| 32 |
93-7483 |
LAMP-CLUSTER Price: $97.05 |
| 33 |
76-9060 |
GAUGE-TEMPERATURE Price: $110.89 |
| 34 |
3254-20 |
WASHER-LOCK, INT This part replaces 218-589. Price: $1.29 |
| 35 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 36 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 37 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 38 |
218-447 |
WASHER-LOCK Price: $3.79 |
| 39 |
218-446 |
NUT-HEX Price: $6.09 |
| 40 |
93-1261 |
DISCONTINUED Price: Call Us |
| 40 |
93-9167 |
DECAL - CONSOLE RM 6500 Price: $54.23 |
| 40 |
94-4574 |
DECAL - CONSOLE, 6500, JA Price: $178.33 |
| 41 |
94-1417-03 |
PANEL-CONTROL This part replaces 94-1417. Price: $46.64 |
| 42 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 43 |
27-2360 |
SWITCH Price: $46.56 |
| 44 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 45 |
85-4480 |
KNOB Price: $16.02 |
| 46 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 49 |
93-7587 |
BRACKET-FUSE BLOCK/PANEL Price: $19.16 |
| 50 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 51 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 52 |
104-4235 |
POTENTIOMETER ASM This part replaces 85-4470. Price: $260.80 |
| 53 |
75-5740-03 |
BOX-CONTROL ASM This part replaces 75-5740. Price: $261.87 |
| 54 |
75-5780 |
HINGE-STEEL Price: $18.08 |
| 55 |
32128-33 |
NUT-HF Price: $0.25 |
| 56 |
93-8744 |
RIVET-BLIND Price: $0.75 |
| 57 |
321-39 |
SCREW-HH Price: $0.42 |
| 58 |
93-1266 |
DECAL - FUSES, CE Price: $13.78 |
| 58 |
94-3091 |
DECAL - FUSES, JAPANESE Price: $18.43 |
| 58 |
94-6349 |
DECAL-FUSES Price: $11.05 |
| 59 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 60 |
2412-126 |
R-CLAMP Price: $2.51 |
| 61 |
94-3090 |
HARNESS - WIRE, MAIN Price: $1,957.31 |
| 62 |
93-3625 |
SPRING-RETURN Price: $20.57 |
| 76 |
237-7 |
O-RING Price: $8.82 |
| 87 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 88 |
583580001 |
DECK.LIFTING.SPRING This part replaces 532445496. Price: $8.99 |
| 89 |
819191912 |
WASHER.CLEAR.ZINC Price: $2.99 |
| 90 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 91 |
589464807 |
Links This part replaces 532195181. Price: $14.99 |
| 97 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 98 |
581506903 |
Links This part replaces 532195270. Price: $9.99 |
| 100 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 101 |
532407003 |
LINK.ASM.LIFT.FIXE.38/42/46" Price: $11.99 |
| 116 |
594976501 |
Washers This part replaces 819151516. Price: $2.99 |
