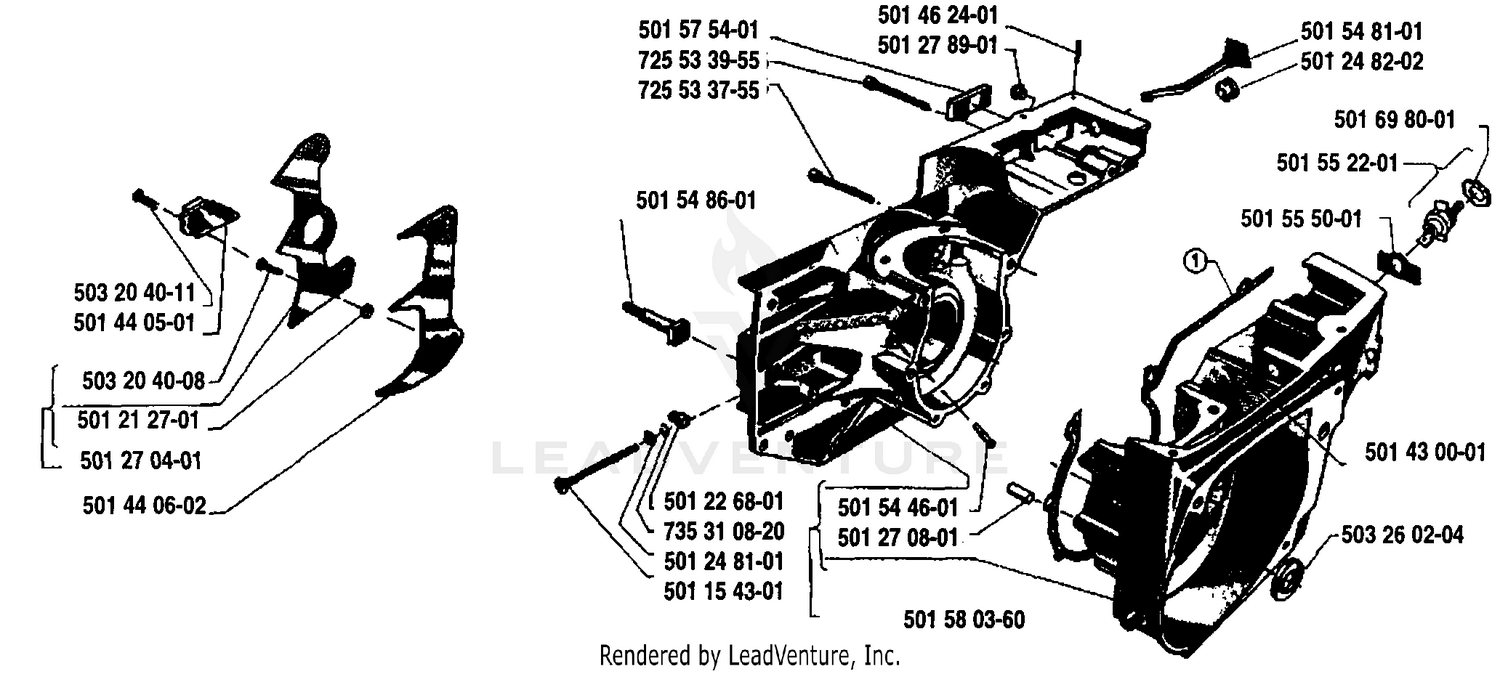

Crankcase Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 501154301 | 501792701 | SCREW This part replaces 501154301. Price: $10.99 |
| 501212701 | 501212701 | Price: $4.65 |
| 501226801 | 501226801 | PAWL Price: $10.99 |
| 501248101 | 501248101 | COUPLING Price: $3.99 |
| 501248202 | 501248202 | GROMMET Price: $3.99 |
| 501270401 | 501270401 | FELLING DOG NLA Price: $10.65 |
| 501270801 | 593806001 | GUIDE BUSHING This part replaces 501270801. Price: $4.99 |
| 501278901 | 501278901 | BUFFER Price: $3.02 |
| 501430001 | 501430001 | GROMMET Price: $3.99 |
| 501440501 | 501440501 | Price: $3.48 |
| 501440602 | 501440602 | Price: $16.32 |
| 501462401 | 501462401 | PIN Price: $4.06 |
| 501544601 | 501544601 | OIL NIPPLE 4,5 MM Price: $1.78 |
| 501548101 | 501548101 | Price: $3.92 |
| 501548601 | 501548601 | BAR STUD Price: $5.80 |
| 501552201 | 501552201 | Price: $12.65 |
| 501555001 | 501555001 | Price: $4.58 |
| 501575401 | 501575402 | COVER This part replaces 501575401. Price: $4.88 |
| 501580360 | 501580360 | Price: $294.51 |
| 501698001 | 501698001 | NUT Price: $1.68 |
| 503204008 | 503204008 | Price: $3.67 |
| 503204011 | 503204011 | Price: $4.00 |
| 503260204 | 503260204 | SEALING RING Price: $11.99 |
| 725533755 | 725533755 | SCREW MC6S 5X35 Price: $3.99 |
| 735310820 | 735310820 | E-RING 4 Price: $2.99 |
