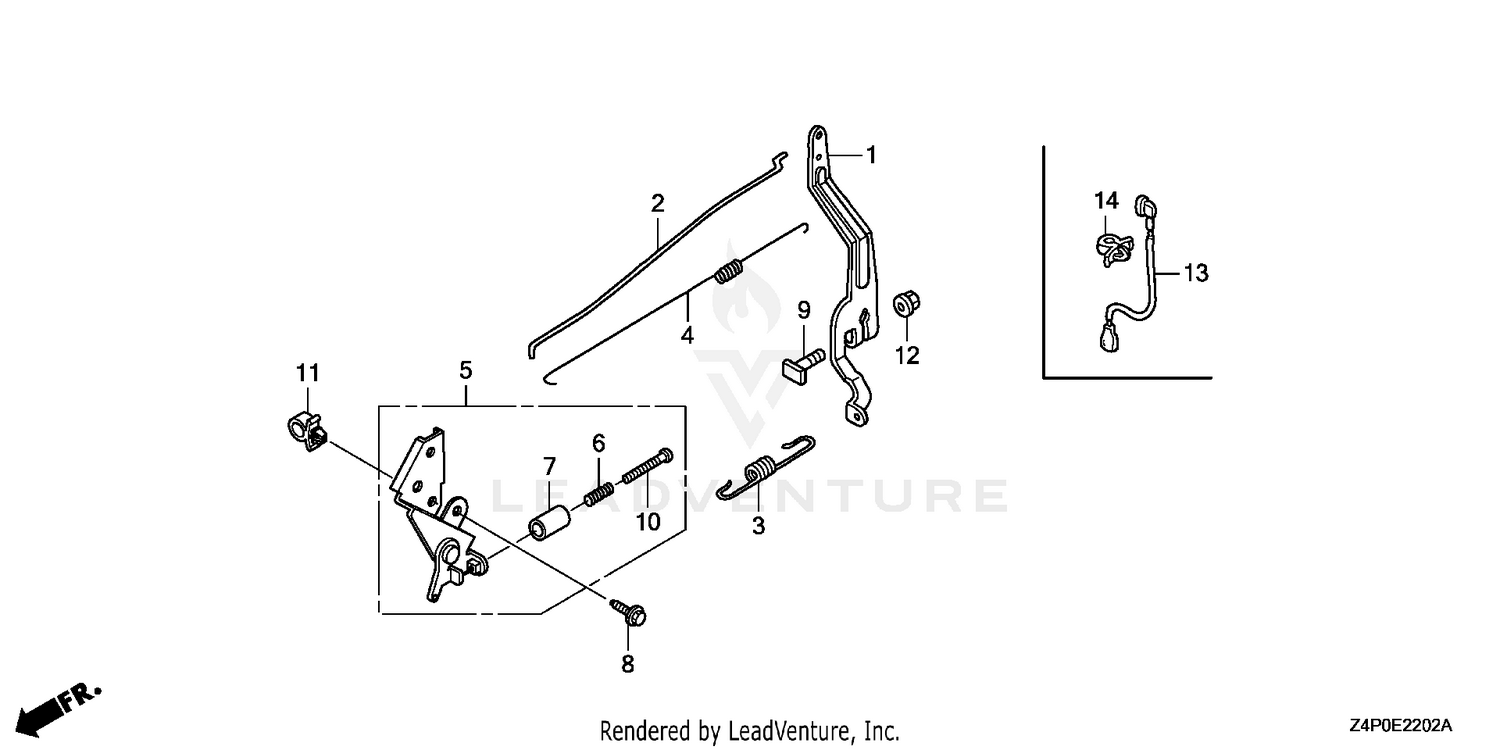

| Ref | Part Number | Description |
|---|
| 1 |
16551-ZE7-000 |
ARM, GOVERNOR Price: $19.90 |
| 2 |
16555-ZE7-000 |
ROD, GOVERNOR Price: $5.30 |
| 3 |
16561-ZE7-020 |
SEE PART DETAILS - PRI; SPRING, GOVERNOR (STD) Price: $4.20 |
| 4 |
16562-ZE6-000 |
SPRING, THROTTLE RETURN (Honda Code 1452911). Price: $5.00 |
| 5 |
16570-Z4P-800 |
CONTROL Price: $45.68 |
| 6 |
16584-883-300 |
SPRING, CONTROL ADJUSTING Use from Engine SN 2327377. Price: $5.00 |
| 7 |
16599-ZG1-M10 |
COLLAR, STOPPER (Honda Code 4755252). Price: $3.80 |
| 8 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 9 |
90015-ZE5-010 |
SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671). Price: $3.16 |
| 10 |
90016-ZG1-M10 |
SCREW, RECESSED (5X35) Price: $2.68 |
| 11 |
90659-Z1V-003 |
CLIP, HARNESS Price: $2.80 |
| 12 |
94050-06000 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
| 13 |
36101-ZE7-020 |
WIRE, STOP SWITCH Price: $16.74 |
