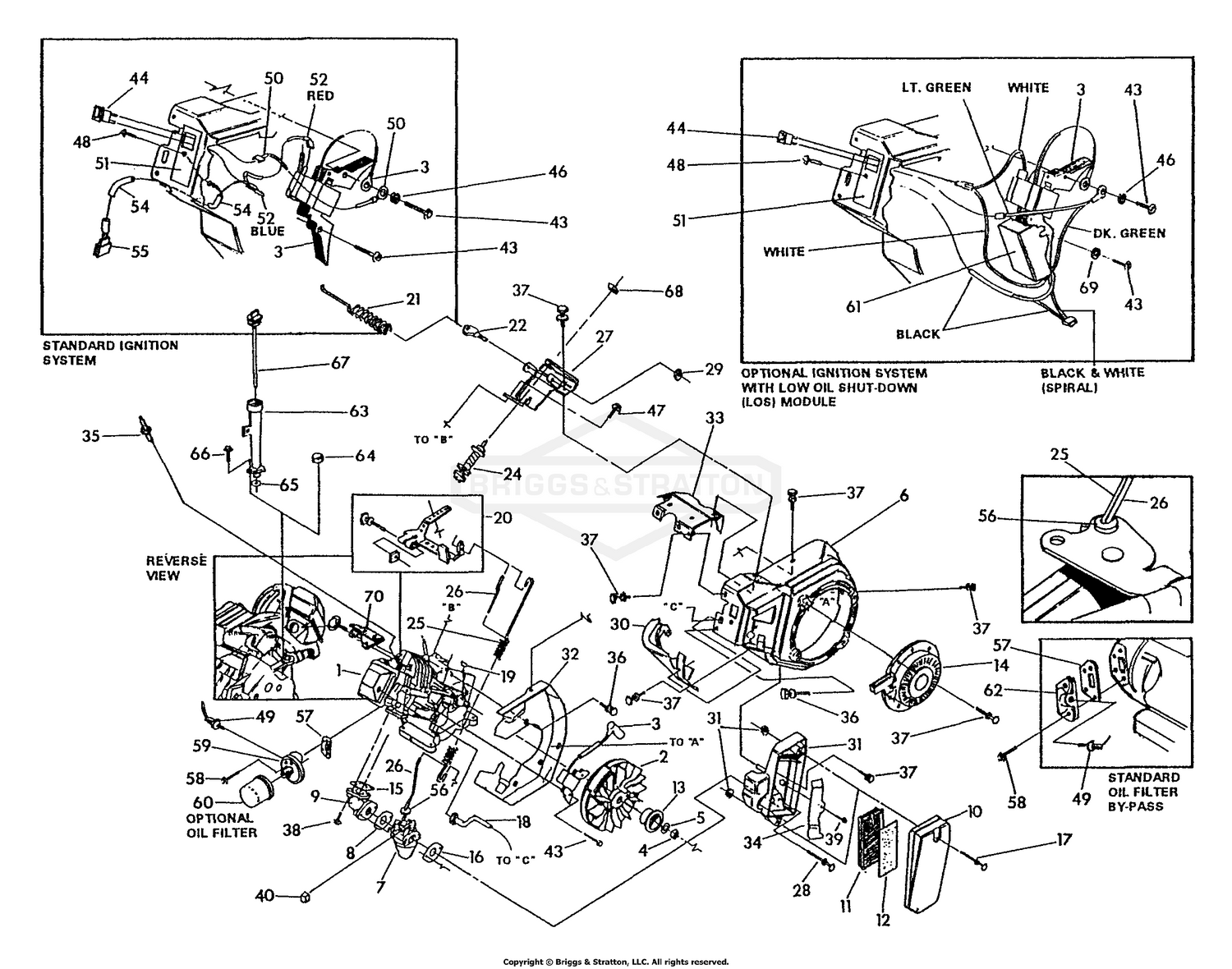

| Ref | Part Number | Description |
|---|
| 1 |
90507 |
GN191 Long Block Taper Shaft Price: Call Us |
| 1 |
90508 |
GN220 Long Block Taper Shaft Price: Call Us |
| 1 |
90991 |
H GN191 Long Blk Straight Shaft Price: Call Us 90991 H |
| 1 |
92957 |
GN220 Long Blk Water Pump Price: Call Us |
| 1 |
99095H |
GN220 Long Blk Straight Shaft Price: Call Us |
| 2 |
77182E |
Flywheel Assembly 28 Deg. Timing GN220 Price: Call Us |
| 2 |
77812T |
Flywheel Assembly 34 Deg. Timing GN191 Price: Call Us |
| 3 |
81675 |
Ignition Coil Assembly Price: Call Us |
| 4 |
81810 |
M16 x 1.5 Hex Nut Price: Call Us |
| 5 |
83312 |
Conical Washer Price: Call Us |
| 6 |
90695A |
Blower Housing Price: Call Us |
| 7 |
95948 |
Carb. - GN191HS-50Hz, GN220HS-50Hz Press. Washers Price: Call Us |
| 7 |
97747 |
Carb. - GN220HS-60Hz Price: Call Us |
| 7 |
98469 |
Carb. - GN191HS-60Hz Price: Call Us |
| 8 |
78631 |
Carb/Manifold Gasket Price: Call Us |
| 9 |
90948 |
Intake HS Manifold Price: Call Us |
| 10 |
78608A |
Opt. Air Cleaner Cover - Plain Price: Call Us |
| 10 |
786908 |
Air Cleaner Cover Price: Call Us |
| 11 |
78601GS |
FILTER,Air This part replaces 78601. Price: $11.50 |
| 12 |
78602 |
Air Filter Pre-Cleaner Price: Call Us |
| 13 |
83015 |
Recoil Cup Price: Call Us |
| 14 |
81671 |
Recoil Assembly Price: Call Us |
| 15 |
90051 |
Manifold Head Gasket Price: Call Us |
| 16 |
91846 |
Carb./Air Cleaner Gasket Price: Call Us |
| 17 |
78609 |
Air Cleaner Cover Bolt Price: Call Us |
| 18 |
7090947YP |
BOLT, Carriage, Short Neck, 1/4-20 x 1-3/8 This part replaces 90947. Price: $5.02 |
| 20 |
86962 |
Governor Lever Assembly Price: Call Us |
| 22 |
83502 |
Governor Adjusting Screw Price: $283.70 |
| 24 |
83782 |
Idle Control Coil Price: Call Us |
| 25 |
86037 |
Anti-Lash Extension Spring Price: $83.40 |
| 26 |
86384 |
Governor Rod Price: Call Us |
| 27 |
83781 |
Governor Adjust Bracket Price: Call Us |
| 28 |
78643 |
Carb. Mounting Bolt Price: $43.98 |
| 29 |
83503 |
M5-0.8 Metal Lock Nut Price: $255.45 |
| 30 |
89739 |
Lower Wrapper Price: Call Us |
| 31 |
78607 |
Air Cleaner Base with nuts Price: Call Us |
| 32 |
78651C |
Blower Housing Back Plate Price: Call Us |
| 33 |
691061 |
SCREW This part replaces 92984. Price: $2.81 |
| 34 |
80303 |
Breather Canal Cover Price: Call Us |
| 35 |
84007216 |
PLUG, SPARK This part replaces 72347. Price: $4.59 |
| 36 |
45756 |
M6-1 x 10 Taptite Bolt Price: Call Us |
| 37 |
66476GS |
SCREW, M6-1 x 12 w/Lock Washer This part replaces 66476. Price: $2.94 |
| 38 |
80316 |
M6-1 x 30 Flanged H Hd. w/Lockwasher Screw Price: Call Us |
| 40 |
83504 |
Choke Lever Knob Price: $272.19 |
| 43 |
82981 |
M6-1 x 30 Taptite Bolt Price: Call Us |
| 44 |
78653GS |
SWITCH, Run - Stop This part replaces 78653. Price: $3.65 |
| 46 |
5022097SM |
CAP This part replaces 22097. Price: $2.75 |
| 47 |
83512GS |
Screw, M8 1.25 x 15, Taptite This part replaces 83512. Price: $4.60 |
| 48 |
85272 |
LED Low Oil Indicator Light Assembly Price: Call Us |
| 50 |
00285271 |
Ground Wire Assembly Price: Call Us |
| 51 |
84195 |
L.O.S., 5 Eng. Decal Price: Call Us |
| 52 |
00185271 |
Wire Assembly Ignition Price: Call Us |
| 56 |
85953 |
Carb. Wear Washer Price: Call Us |
| 57 |
7091848YP |
FITTING 3/8 NPT MALE This part replaces 91848. Price: $12.69 |
| 58 |
92978 |
M6 x 1.0 x 20 Taptite Price: Call Us |
| 65 |
7079831YP |
CLEVIS PIN This part replaces 91230. Price: $3.19 |
| 66 |
7090388YP |
T-NUT 5/16C This part replaces 90388. Price: $2.66 |
| 68 |
66311 |
M8-1.25 Hex Jam Nut Price: Call Us |
| 69 |
49811GS |
WASHER This part replaces 49811. Price: Call Us |
