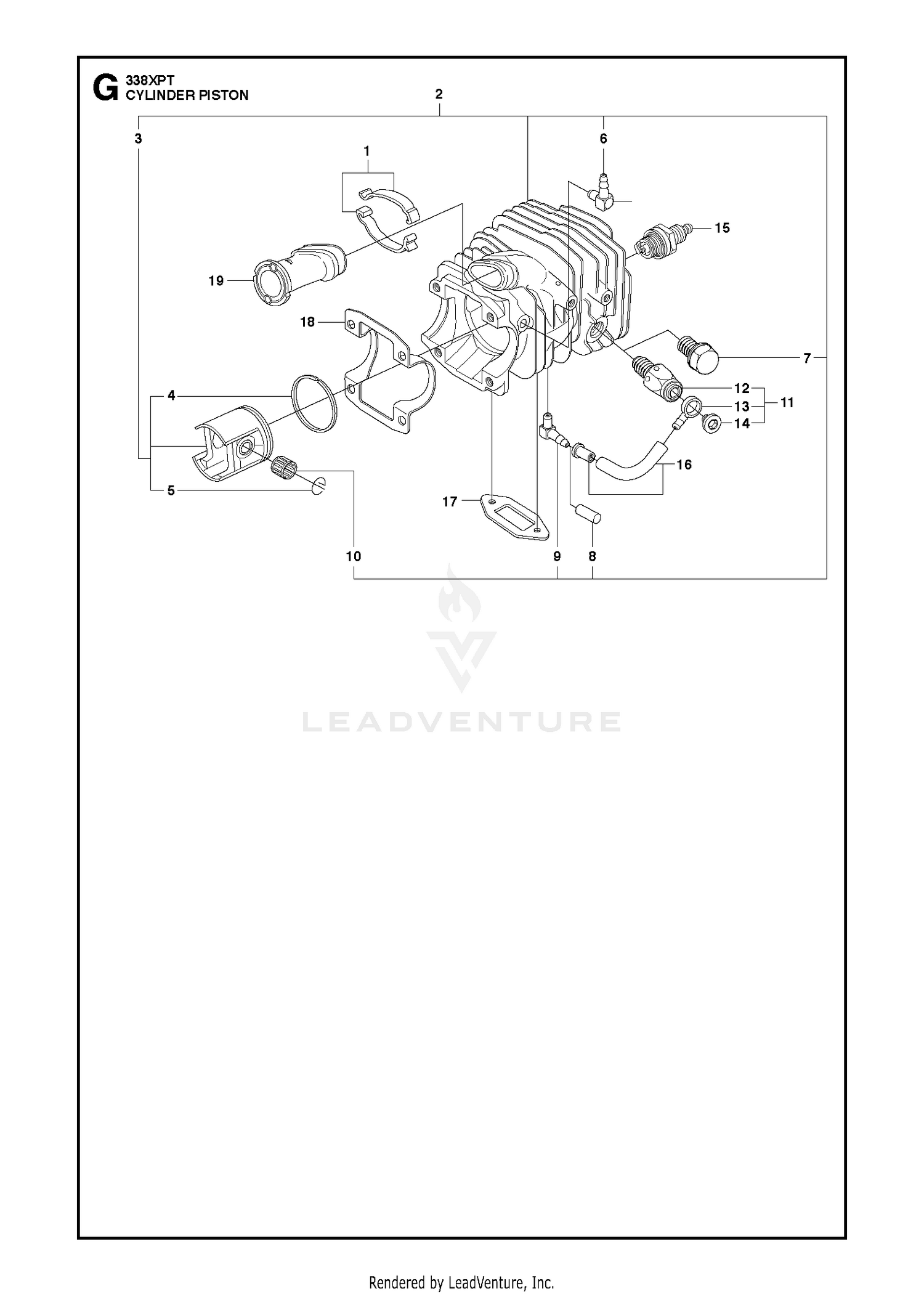

CYLINDER PISTON
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 537167301 | CLAMP Price: $4.99 |
| 3 | 537132702 | PISTON Price: $74.99 |
| 4 | 537400001 | PISTON RING This part replaces 503289004. Price: $14.99 |
| 5 | 737441000 | LOCKING RING Price: $2.99 |
| 6 | 504340004 | NIPPLE Price: $5.99 |
| 7 | 503552201 | CYLINDER PLUG Price: $6.99 |
| 8 | 537180001 | PROTECTIVE CAP Price: $3.99 |
| 9 | 504340004 | NIPPLE Price: $5.99 |
| 10 | 503414101 | SUPPORT BUSHING Price: $11.99 |
| 11 | 537126806 | VALVE DECOMPR Price: $59.99 |
| 12 | 537359401 | DECOMPRESSION VALVE Price: $37.99 |
| 13 | 537137001 | NIPPLE Price: $4.99 |
| 14 | 537222901 | SCREW Price: $2.99 |
| 16 | 537427803 | HOSE COMPLETE This part replaces 537113203. Price: $19.99 |
| 17 | 503821101 | GASKET Price: $4.99 |
| 18 | 537100401 | GASKET Price: $9.99 |
| 19 | 537157701 | PIPE Price: $19.99 |
