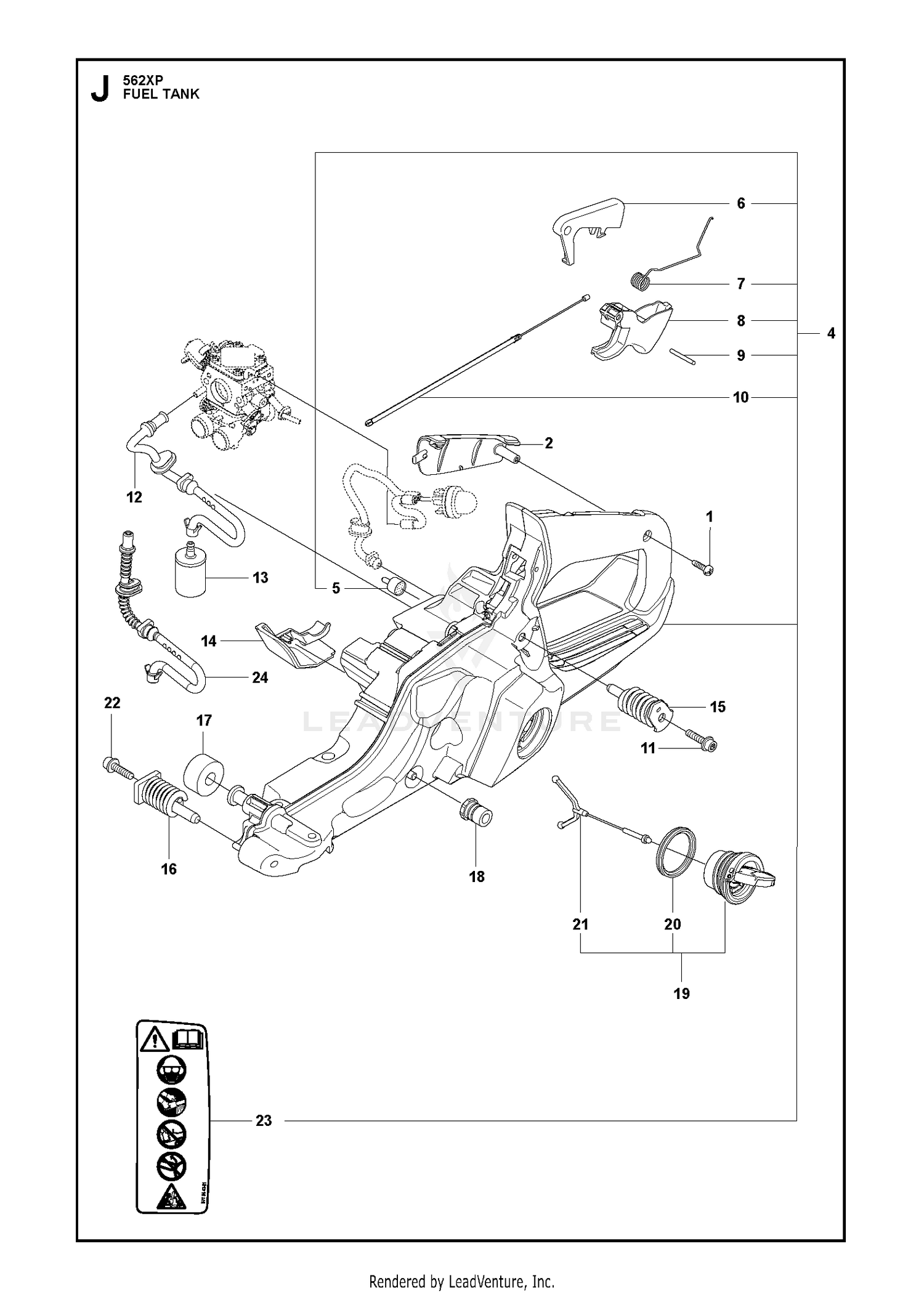

| Ref | Part Number | Description |
|---|
| 1 |
115-0080-03 |
SHAFT-CONTROL, SPEED Price: $515.26 |
| 1 |
525887402 |
SCREW CITXPANT Price: $2.99 |
| 2 |
117-3255 |
BEARING-SIDE FLANGE Price: $19.99 |
| 2 |
504106301 |
HANDLE INSERT Price: $5.99 |
| 3 |
323-6 |
SCREW-HH Price: $0.66 |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 4 |
575382205 |
FUEL TANK ASSY Price: $89.99 |
| 5 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 5 |
501152901 |
FUEL TANK VENT Price: $14.99 |
| 6 |
323-29 |
SCREW-HH Price: $0.42 |
| 6 |
544099801 |
THROTTLE LOCKOUT Price: $5.99 |
| 7 |
544099901 |
SPRING Price: $5.99 |
| 7 |
85-9120 |
SPACER-PIVOT, TILT Price: $4.01 |
| 8 |
251-259 |
BEARING-BALL This part replaces 251-307. Price: $13.67 |
| 8 |
505157701 |
THROTTLE Price: $5.99 |
| 9 |
112-5099 |
LINK ASM Price: $76.35 |
| 9 |
720182520 |
PIN Price: $1.99 |
| 10 |
115-0084-03 |
ARM Price: $57.94 |
| 10 |
521887901 |
THROTTLE CABLE ASSY Price: $14.99 |
| 11 |
119-1351-03 |
CHANNEL-PIVOT Price: $37.30 |
| 12 |
322-6 |
SCREW-HH Price: $0.45 |
| 12 |
573993503 |
FUEL HOSE Price: $9.99 |
| 13 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 14 |
325-4 |
SCREW-HH Price: $0.95 |
| 15 |
586312103 |
ANTIVIBRATION ELEMENT REAR Price: $11.99 |
| 16 |
505128702 |
ANTIVIBRATION ELEMENT FRONT Price: $14.99 |
| 16 |
52-2891 |
BUSHING-FLANGED, NYLON Price: $3.19 |
| 17 |
323-15 |
SCREW-HH Price: $1.53 |
| 17 |
523085501 |
DEFLECTION LIMITER Price: $7.99 |
| 18 |
105-7239 |
ROD-THREADED Price: $40.86 |
| 18 |
501007601 |
LATERAL SUPPORT Price: $3.99 |
| 19 |
1-633131 |
YOKE-LINKAGE, BRAKE Price: $14.99 |
| 19 |
522620003 |
TANK CAP ASSY Price: $8.99 |
| 20 |
103-1167 |
JOINT-BALL END, LH Price: $30.99 |
| 20 |
589241101 |
SEALING Price: $4.99 |
| 21 |
103-2399 |
PIN-SPRING, CLEVIS Price: $5.59 |
| 21 |
503578901 |
TANK LOCK Price: $4.99 |
| 22 |
3219-20 |
NUT-HEX, LH Price: $1.15 |
| 22 |
525798103 |
SCREW Price: $2.99 |
| 23 |
52-2860 |
WASHER Price: $0.84 |
| 23 |
577844301 |
DECAL Price: $3.99 |
| 24 |
115-5300 |
PROXIMITY SWITCH ASM Price: $137.95 |
| 26 |
3217-6 |
NUT-HEX Price: $1.19 |
| 27 |
322-9 |
SCREW-HH Price: $3.09 |
| 28 |
140-6248 |
DAMPER This part replaces 76-8870. Price: $159.54 |
| 29 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 30 |
119-1415 |
PIN-COTTER, LOCKING Price: $0.22 |
| 31 |
3219-3 |
NUT-HEX Price: $0.34 |
