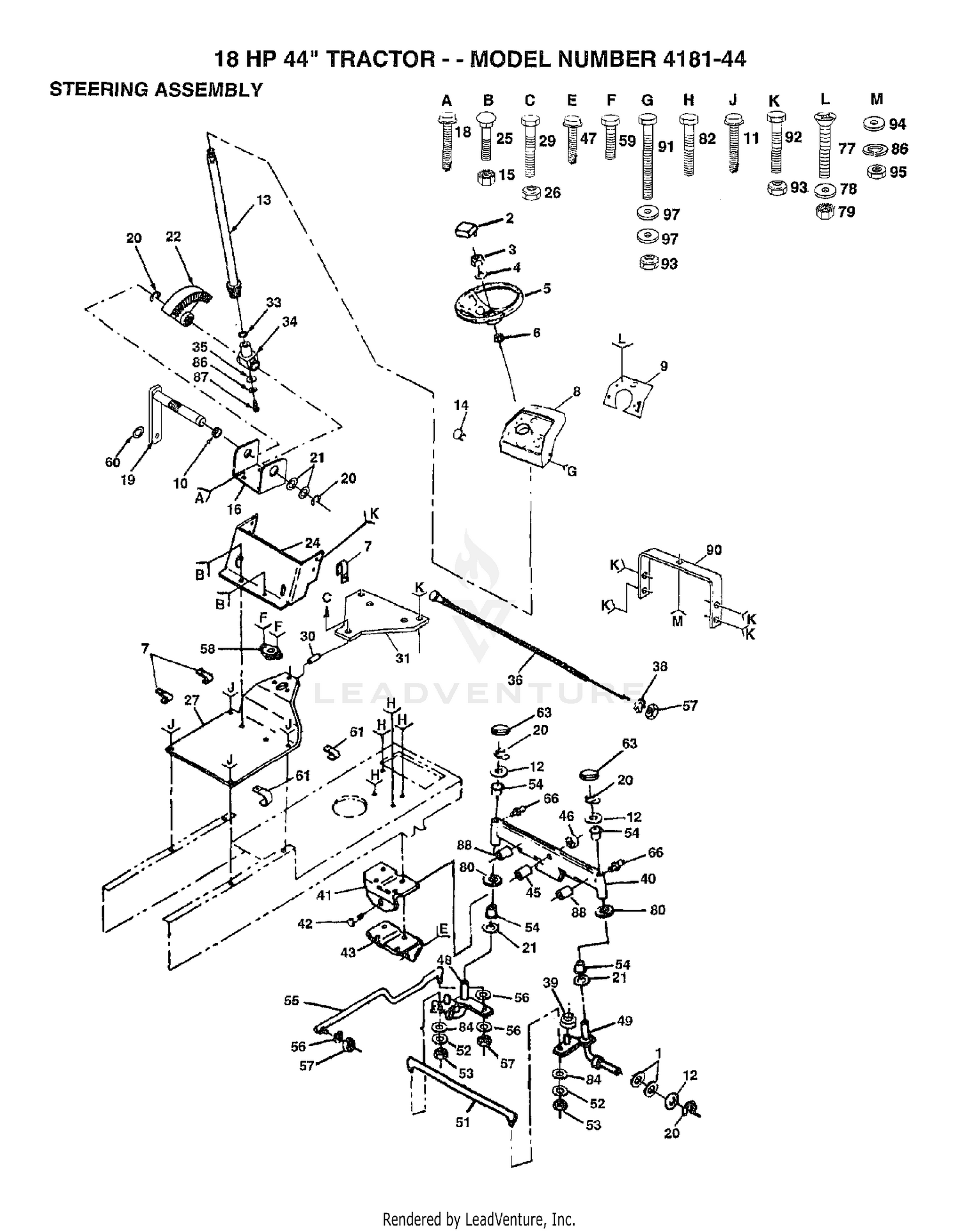

| Ref | Part Number | Description |
|---|
| 1 |
532121749 |
WASHER Price: $1.99 |
| 1 |
X-25-52 |
Washer Price: Call Us |
| 2 |
532150546 |
STEERING WHEEL KIT This part replaces 532126805. Price: $59.99 |
| 2 |
X-67-59 |
Screw-Hex Hd Price: Call Us |
| 3 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 3 |
X-131-1 |
Screw, Price: Call Us |
| 4 |
532100712 |
Washer 17/32 x 2-1/4 x .160 (AYP part number) Price: $2.42 |
| 4 |
X-174-2 |
Screw-F.H. Price: Call Us |
| 5 |
47_411_04 |
Rod-Breaker Price: Call Us |
| 5 |
532150546 |
STEERING WHEEL KIT This part replaces 532121472. Price: $59.99 |
| 6 |
532100711 |
Adapter Wheel Strg 758/ 753id (AYP part number) Price: $11.99 |
| 6 |
X-728-1 |
Clip Price: Call Us |
| 7 |
532002751 |
CLIP T Price: $2.42 |
| 7 |
X-778-1 |
Screw Price: Call Us |
| 8 |
52_041_11 |
Gasket-Cover Price: Call Us |
| 8 |
532140398 |
Dash Black Yard Pro (AYP part number) Price: $129.99 |
| 9 |
238057 |
Kit, Hi-Tension Price: Call Us |
| 9 |
TBD |
Price: Call Us |
| 10 |
232535 |
Cover Price: Call Us |
| 10 |
532109816 |
NYLINER T (7283A) Price: $2.99 |
| 11 |
237429 |
Connector Price: Call Us |
| 11 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 12 |
275303 |
Clip Price: Call Us |
| 12 |
532121748 |
WASHER Price: $1.99 |
| 13 |
237878 |
Stator Price: Call Us |
| 13 |
532156544 |
STEERING SHAFT This part replaces 532124043. Price: $64.99 |
| 14 |
235041-S |
Plug-Spark Price: Call Us |
| 14 |
532125085 |
PLUG-DASH T Price: $5.54 |
| 15 |
47_150_03 |
Breaker Price: Call Us |
| 15 |
873310500 |
NUT Price: $3.99 |
| 16 |
230722 |
Condenser Price: Call Us |
| 16 |
532124036 |
BRKT,STEERING Price: $4.99 |
| 17 |
231281 |
Coil Price: Call Us |
| 18 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 19 |
532156365 |
PITMAN SHAFT ASSY This part replaces 532124033. Price: $27.99 |
| 20 |
812000029 |
RING CLIP Price: $1.99 |
| 21 |
532006266 |
WASHER THRUST Price: $5.99 |
| 22 |
532136874 |
GEAR.SECTOR Price: $49.99 |
| 24 |
532104805 |
Dash Assembly, Lower (AYP part number) Price: $34.49 |
| 25 |
874180512 |
SCREW Price: $3.99 |
| 26 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 27 |
539127543 |
LEVER ANCHOR LH Price: $8.99 |
| 29 |
874760532 |
BOLT Price: $2.99 |
| 30 |
532121236 |
Spacer Split 59/ x 1.25 Blk/zin (AYP part number) Price: $2.38 |
| 31 |
532140181 |
Plate Pnt Sprt Battery (blk) (AYP part number) Price: $3.68 |
| 33 |
532057079 |
THRUST WASHER Price: $2.99 |
| 34 |
532160395 |
STEERING SHAFT SUPPORT This part replaces 532124035. Price: $6.99 |
| 35 |
819091016 |
WASHER This part replaces 532126684. Price: $2.99 |
| 36 |
532132781 |
Control, Choke (AYP part number) This part replaces 532122926. Price: $19.99 |
| 38 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 40 |
532142033 |
AXLE ASSY Price: $59.99 |
| 41 |
532105663 |
Support, Saddle, Rear (AYP part number) Price: $8.25 |
| 42 |
874761060 |
BOLT LT Price: $3.99 |
| 43 |
532105664 |
SUP-SADDLE FRT LT Price: $9.99 |
| 45 |
532110438 |
Spacer, Bearing, Axle, Front (AYP part number) Price: $5.99 |
| 46 |
583612401 |
LOCKNUT M (1 2) (5 2) This part replaces 873601000. Price: $2.99 |
| 47 |
817490508 |
SCREW LT Price: $3.99 |
| 48 |
TBD |
Price: Call Us |
| 49 |
TBD |
Price: Call Us |
| 51 |
532170162 |
ROD.ASM.TIE.BALL.JOINT.NOVAN This part replaces 532130467. Price: $59.99 |
| 52 |
810040500 |
LOCKWASHER Price: $2.99 |
| 53 |
873610500 |
This part replaces 873810500. Price: Call Us |
| 54 |
532003366 |
BEARING.STEERING.COLUMN Price: $1.99 |
| 55 |
532130468 |
DRAG LINK Price: $49.99 |
| 56 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 57 |
873680600 |
LOCKNUT This part replaces 873610600. Price: $1.99 |
| 58 |
532155108 |
KIT/BUSH This part replaces 532001554. Price: $3.99 |
| 59 |
817211008 |
Screw, Hex Wsh. Tap #10-16 x 1/2 (AYP part number) This part replaces 817431008. Price: $2.99 |
| 60 |
819131210 |
Washer 13/32 x 1-3/4 x 10 Ga. (AYP part number) Price: $2.99 |
| 61 |
532126471 |
CLIP,INSULATOR Price: $2.99 |
| 63 |
532121232 |
CAP.SPINDLE.BLACK Price: $1.99 |
| 66 |
532183226 |
FITTING.GREASE.TAPERED This part replaces 532006855. Price: $3.99 |
| 77 |
874180512 |
SCREW Price: $3.99 |
| 78 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 79 |
873310500 |
NUT Price: $3.99 |
| 80 |
819272016 |
WASHER Price: $2.99 |
| 82 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 84 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 86 |
810040400 |
LOCKWASHER Price: $3.99 |
| 87 |
532165857 |
SCREW.HX.WSH.HD This part replaces 871070410. Price: $2.99 |
| 88 |
532132624 |
Pin, Axle 5/8 x 1.55/1.54 LG. (AYP part number) Price: $2.42 |
| 90 |
532124130 |
Support, Assembly, Dash (AYP part number) Price: $12.22 |
| 91 |
874760620 |
BOLT This part replaces 874780620. Price: $3.99 |
| 92 |
874780616 |
BOLT Price: $3.99 |
| 93 |
873680600 |
LOCKNUT This part replaces 532062336. Price: $1.99 |
| 94 |
531003379 |
WASHER This part replaces 819091216. Price: $2.99 |
| 95 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
