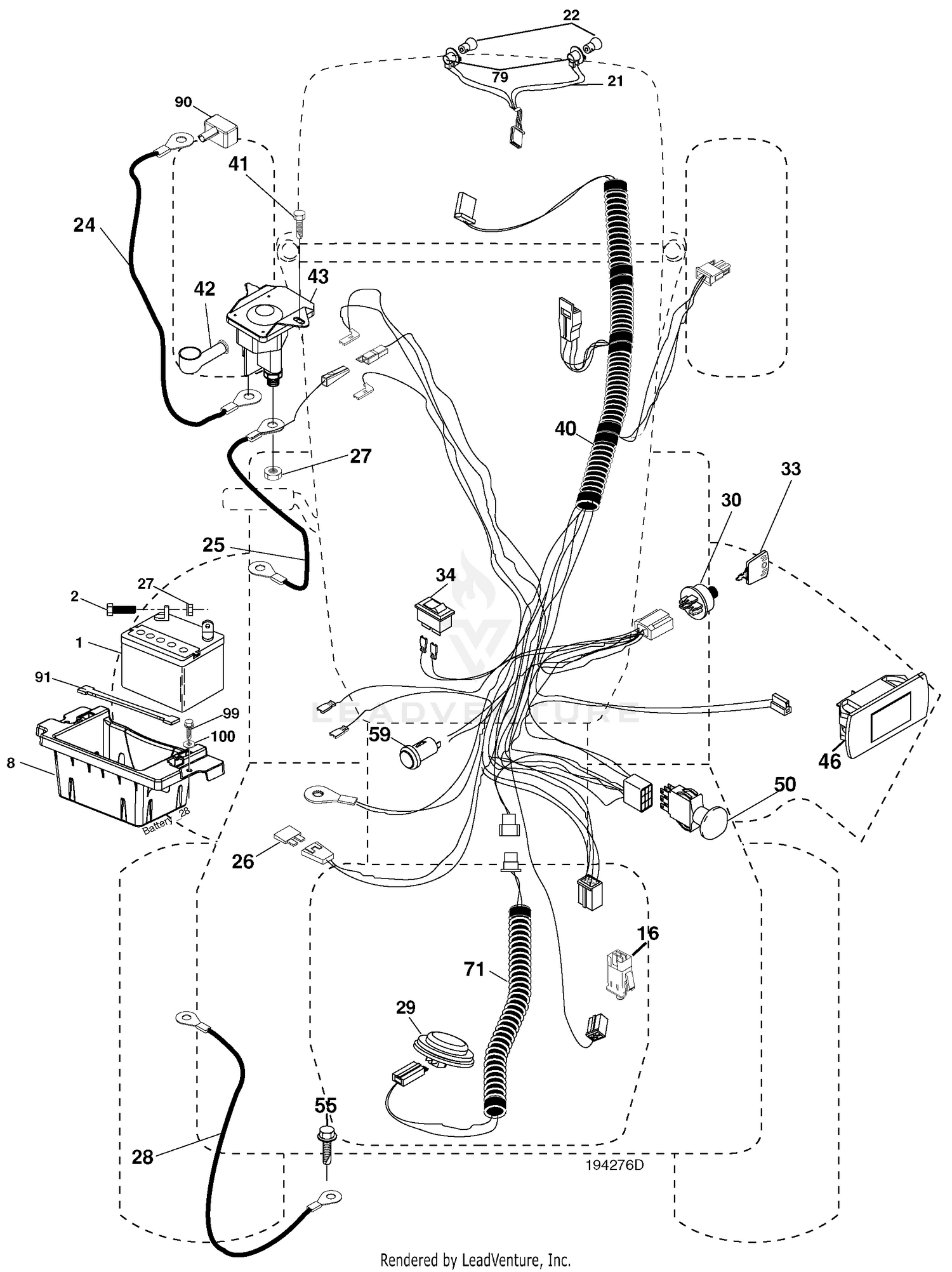

| Ref | Part Number | Description |
|---|
| 1 |
144927 |
Battery Price: Call Us |
| 2 |
74760412 |
Bolt Hex Head 1/4-20 x 3/4 Price: Call Us |
| 8 |
186491 |
Box Battery Price: Call Us |
| 10 |
105-3786 |
SPRING-START Price: $3.91 |
| 16 |
176138 |
Switch Interlock Push-In Price: Call Us |
| 20 |
98-9681 |
SPRING-GOVERNOR Price: $12.06 |
| 21 |
175688 |
Harness Socket Light W/4152J Price: Call Us |
| 22 |
4152J |
Bulb Light Price: Call Us |
| 24 |
400253 |
Cable Battery Price: Call Us |
| 25 |
198893 |
Cable Start Red 17.5" Price: Call Us |
| 26 |
175158 |
Fuse Price: Call Us |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 28 |
145491 |
Cable, Ground Price: Call Us |
| 29 |
401545 |
Switch, Seat Price: Call Us |
| 30 |
115-4502 |
FORK LEVER ASM This part replaces 107-9082. Price: $551.34 |
| 30 |
193350 |
Switch, Ignition Price: Call Us |
| 33 |
140401 |
Key, Ignition Price: Call Us |
| 34 |
110712X |
Switch Light / Reset Price: Call Us |
| 40 |
107-9084 |
LEVER-FORK Price: $101.37 |
| 40 |
194276 |
Harness Ignition Price: Call Us |
| 41 |
17720408 |
Screw Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 42 |
131563 |
Cover, Terminal Price: Call Us |
| 43 |
192507 |
Solenoid Price: Call Us |
| 46 |
198138 |
Gauge Hourmeter Price: Call Us |
| 50 |
107-9085 |
SHAFT-LEVER, FORK Price: $24.90 |
| 50 |
174653 |
Switch, PTO Price: Call Us |
| 55 |
17490512 |
Screw Thdrol 5/16-18 x 3/4 TYTT Price: Call Us |
| 59 |
400303 |
Outlet 12-Volt Price: Call Us |
| 60 |
107-9086 |
SHAFT-LEVER, FORK Price: $24.90 |
| 70 |
98-9570 |
BEARING-MINIATURIZE Price: $13.60 |
| 71 |
400260 |
Harness Ign. Dash Price: Call Us |
| 79 |
175242 |
Bulbholder Asm. Incan Descent Price: Call Us |
| 80 |
130-8182 |
KIT-SHAFT COVER, FORK LEVER This part replaces 98-9569. Price: $13.53 |
| 90 |
400724 |
Cover Terminal Battery Price: Call Us |
| 90 |
98-9682 |
GASKET Price: $0.95 |
| 91 |
190270 |
Strap Battery Mount Front Price: Call Us |
| 99 |
17670412 |
Screw Hexwsh Thdrol 1/4-20 x 3/4 Price: Call Us |
| 100 |
98-9351 |
BOLT Price: $0.98 |
| 110 |
98-9567 |
COLLAR Price: $3.78 |
