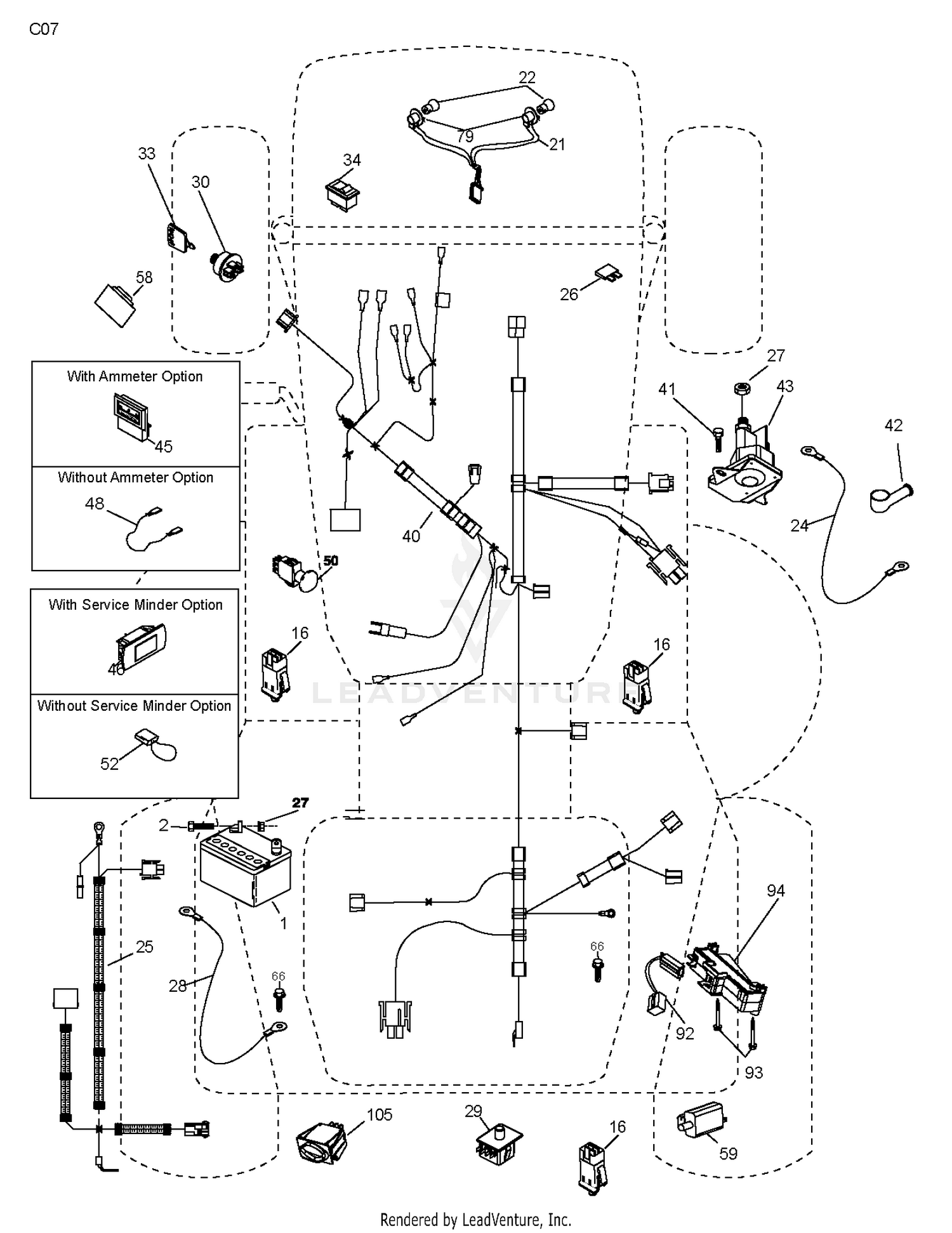

| Ref | Part Number | Description |
|---|
| 1 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
49-6200-01 |
LEVER-CUTTING This part replaces 49-6200. Price: $100.17 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
69-9760 |
COVERPLATE Price: $5.38 |
| 4 |
93-7629 |
PAD-FOOT, BRAKE This part replaces 49-6170. Price: $25.13 |
| 6 |
99-5650 |
MOW PAD & DECAL This part replaces 10-8250. Price: $15.33 |
| 8 |
83-0160 |
SHAFT-BRAKE Price: $111.83 |
| 9 |
99-6857 |
PAD-PEDAL, UPDATE KIT This part replaces 10-8240. Price: $25.77 |
| 10 |
51-0050 |
MOW/LIFT DECAL Price: $10.10 |
| 11 |
106-6395 |
CUTTING CONTROL SHAFT ASM This part replaces 88-9660. Price: $151.92 |
| 12 |
32121-35 |
PIN-ROLL Price: $0.79 |
| 13 |
88-9640-01 |
BRACKET-LIFT PIVOT, LH This part replaces 88-9640. Price: $42.90 |
| 14 |
323-10 |
SCREW-HH Price: $0.89 |
| 15 |
49-6120 |
PAD-FOOTREST Price: $33.37 |
| 16 |
237-78 |
O-RING Price: $3.85 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 18 |
237-21 |
O-RING Price: $0.70 |
| 19 |
63-3950 |
HOSE ASM Price: $67.13 |
| 20 |
88-9700 |
HOSE-HYD Price: $64.30 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 21 |
84-8290 |
HYD CYLINDER ASSY Price: $335.46 |
| 22 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 24 |
532421299 |
CABLE.STARTER.6GA.11"RED Price: $17.99 |
| 24 |
74-3730 |
SPACER-SPINDLE, REAR Price: $5.06 |
| 25 |
532429869 |
Price: Call Us |
| 25 |
63-3850 |
HOSE ASM Price: $83.26 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 26 |
63-3890 |
HOSE ASM Price: $60.05 |
| 27 |
140-5248 |
PIN-PIVOT RAM, WELDED This part replaces 10-6060. Price: $25.64 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 28 |
532127725 |
CABLE GROUND Price: $4.18 |
| 29 |
322-1 |
SCREW-HH Price: $0.22 |
| 29 |
532192749 |
SWITCH.SEAT.DP W/RAMPS Price: $17.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 30 |
62-2660 |
FOOT STEP PAD Price: $14.96 |
| 31 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 32 |
115-3259 |
KIT-SERVICE, PIN This part replaces 10-6110. Price: $39.21 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 33 |
93-2096 |
LEVER-BRAKE This part replaces 71-1510. Price: $89.45 |
| 34 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 35 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 36 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 37 |
5-1226 |
WASHER Price: $3.90 |
| 38 |
62-2460 |
LIFT ARM ASM Price: $130.13 |
| 40 |
532429870 |
Price: Call Us |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 45 |
63-8750 |
PIN-PIVOT Price: $4.20 |
| 46 |
57-7650 |
SPRING-TORSION Price: $11.81 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 47 |
62-2390-01 |
BAR-LH LIFT ARM This part replaces 62-2390. Price: $109.59 |
| 48 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 48 |
532140844 |
ADAPTER.AMMETER Price: $4.99 |
| 49 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 50 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 51 |
282-2 |
YOKE Price: $30.04 |
| 52 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 53 |
3220-2 |
NUT-JAM Price: $0.50 |
| 54 |
27-2270 |
ROD-ADJUSTMENT, BRAKE Price: $32.18 |
| 55 |
10-8100-01 |
STRAP-SHAFT, BRAKE This part replaces 10-8100. Price: $34.17 |
| 57 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 58 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 58 |
532169420 |
KIT.BUZZER.CRD This part replaces 532169419. Price: $64.99 |
| 59 |
583100701 |
SWITCH.FBI.CRD This part replaces 532180379. Price: $11.99 |
| 60 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 61 |
62-5070 |
DECAL-WARNING Price: $5.59 |
| 62 |
106-6396 |
LIFT-PIVOT V This part replaces 83-0060. Price: $63.16 |
| 63 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 64 |
83-0080 |
SPRING-PIVOT, LIFT Price: $20.57 |
| 66 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 68 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 8-7710. Price: $16.35 |
| 69 |
3220-3 |
NUT-HJ Price: $0.28 |
| 70 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 71 |
3-1506 |
BUSHING Price: $2.42 |
| 72 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 73 |
133-2337 |
ROLLER ASM This part replaces 52-2720. Price: $176.14 |
| 74 |
133-2378 |
BEARING This part replaces 251-141. Price: $23.28 |
| 75 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 76 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 77 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 78 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 79 |
136-8484 |
FRAME-PULL, LH This part replaces 92-9176. Price: $382.66 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 80 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 81 |
10-7890 |
DISCONTINUED Price: Call Us |
| 82 |
10-8140 |
SPRING-LATCH, BRAKE Price: $18.38 |
| 83 |
10-7850 |
LATCH-BRAKE, PARKING Price: $111.12 |
| 84 |
10-7880 |
DISCONTINUED Price: Call Us |
| 85 |
88-9720 |
DISCONTINUED Price: Call Us |
| 86 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 87 |
27-2830 |
PARKING BRAKE DECAL Price: $8.92 |
| 88 |
56-7970 |
CLAMP-TUBE Price: $10.02 |
| 89 |
32141-111 |
NUT-ADJUSTING Price: $6.09 |
| 90 |
3229-11 |
SCREW-CARR This part replaces 3229-22. Price: $0.99 |
| 91 |
106-6394 |
MOW PEDAL ASM This part replaces 83-0140. Price: $72.96 |
| 92 |
321-24 |
SCREW-HH This part replaces 321-23. Price: $2.31 |
| 92 |
532196615 |
HARNESS.PIGTAIL.CONSLE Price: $11.99 |
| 93 |
596039601 |
Bolts This part replaces 532192540. Price: $1.99 |
| 93 |
88-9630-01 |
BRACKET-LIFT PIVOT, RH This part replaces 88-9630. Price: $42.90 |
| 94 |
49-6110-01 |
GUARD-ROD, TRANSMISSION This part replaces 49-6110. Price: $65.82 |
| 94 |
532191834 |
MODULE.REVERSE.ROS Price: $19.99 |
| 95 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 96 |
27-2320 |
BEARING Price: $15.22 |
| 97 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
