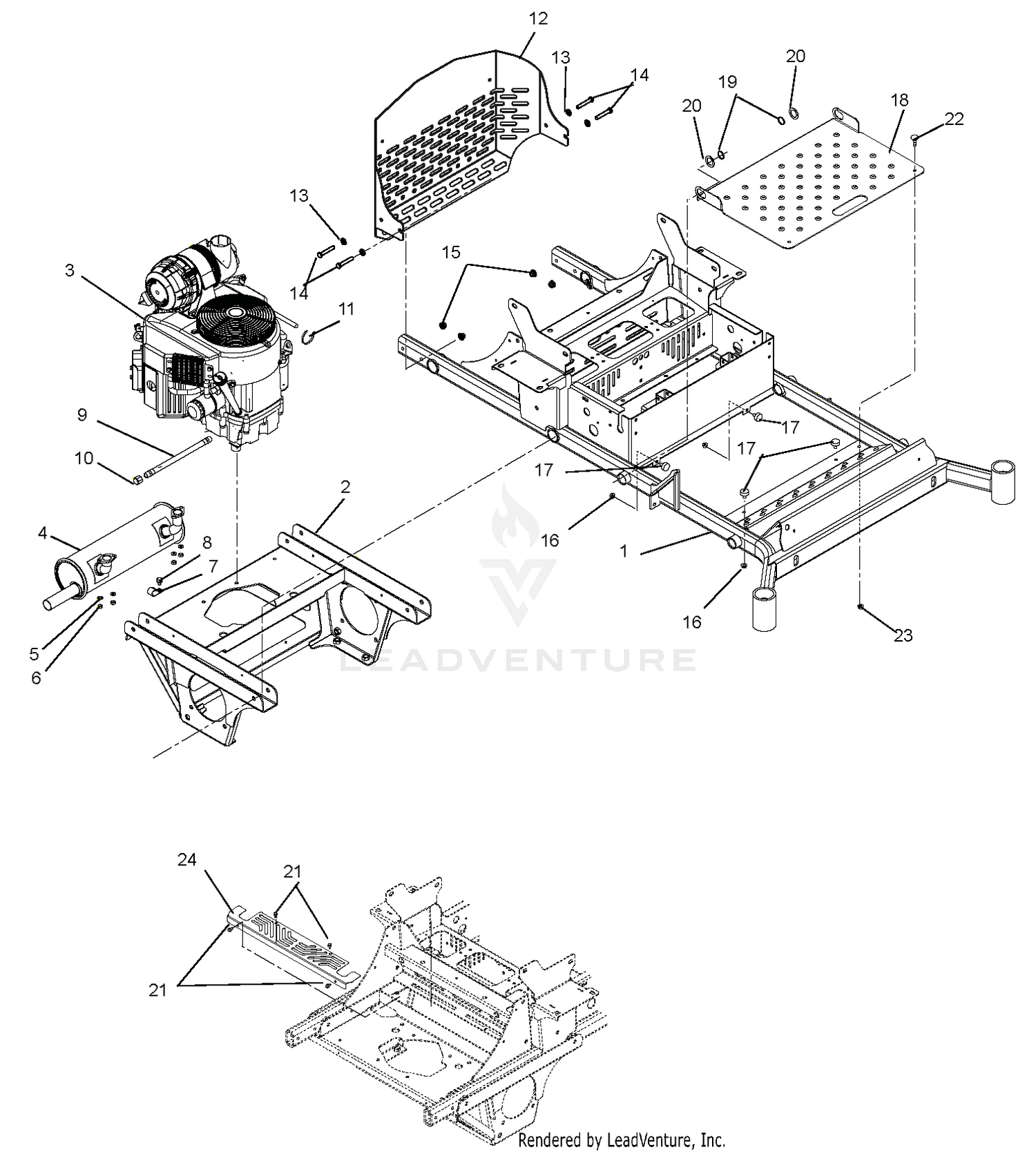

| Ref | Part Number | Description |
|---|
| 1 |
03880053 |
WMT, PT200 CE FRAME Price: Call Us |
| 2 |
03855553 |
PT200/400 AXLE/ENG FRM WMT-RED Price: $479.45 |
| 4 |
03989000 |
MUFFLER, KAWASAKI FX 24/26HP Price: $142.95 |
| 5 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 6 |
06500919 |
NUT-LK-TOP-FLG M8 ZCC This part replaces 06500018. Price: $1.95 |
| 7 |
06916000 |
J-CLAMP Price: $2.45 |
| 8 |
07400126 |
SCR,TAP .375-16X.50 HWH TR ZCC This part replaces 07412900. Price: $1.45 |
| 9 |
05155100 |
HOSE, OIL DRAIN This part replaces 04058500. Price: $18.45 |
| 10 |
03873200 |
PIPE CAP 3/8 NPT FEMALE Price: $12.45 |
| 11 |
07517300 |
CABLE TIE LG 5-1/2 Price: $2.95 |
| 12 |
04072653 |
BUMPER, CE REAR Price: $299.95 |
| 13 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 14 |
05901640 |
BLT,HEX .38-16X2.25 G5 ZCC This part replaces 05962900. Price: $3.95 |
| 15 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 16 |
06500815 |
NUT,SPNLK-FLG .31-18 G5 ZCC This part replaces 06530400. Price: $1.45 |
| 17 |
07533600 |
BUMPER, RUBBER Price: $10.95 |
| 18 |
03862353 |
INSPECTION PANEL - RED Price: $49.95 |
| 19 |
05707300 |
RG-RTNG-EXT 1.00X.078 Price: $2.95 |
| 20 |
06401132 |
WSHR- FLT 1.010X1.505X.062 ZCC This part replaces 06436300. Price: $1.45 |
| 21 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07400034. Price: $0.45 |
| 22 |
06200231 |
BLT-RHSN .31-18X1.00 G5 ZCC This part replaces 06216100. Price: $1.45 |
| 23 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
