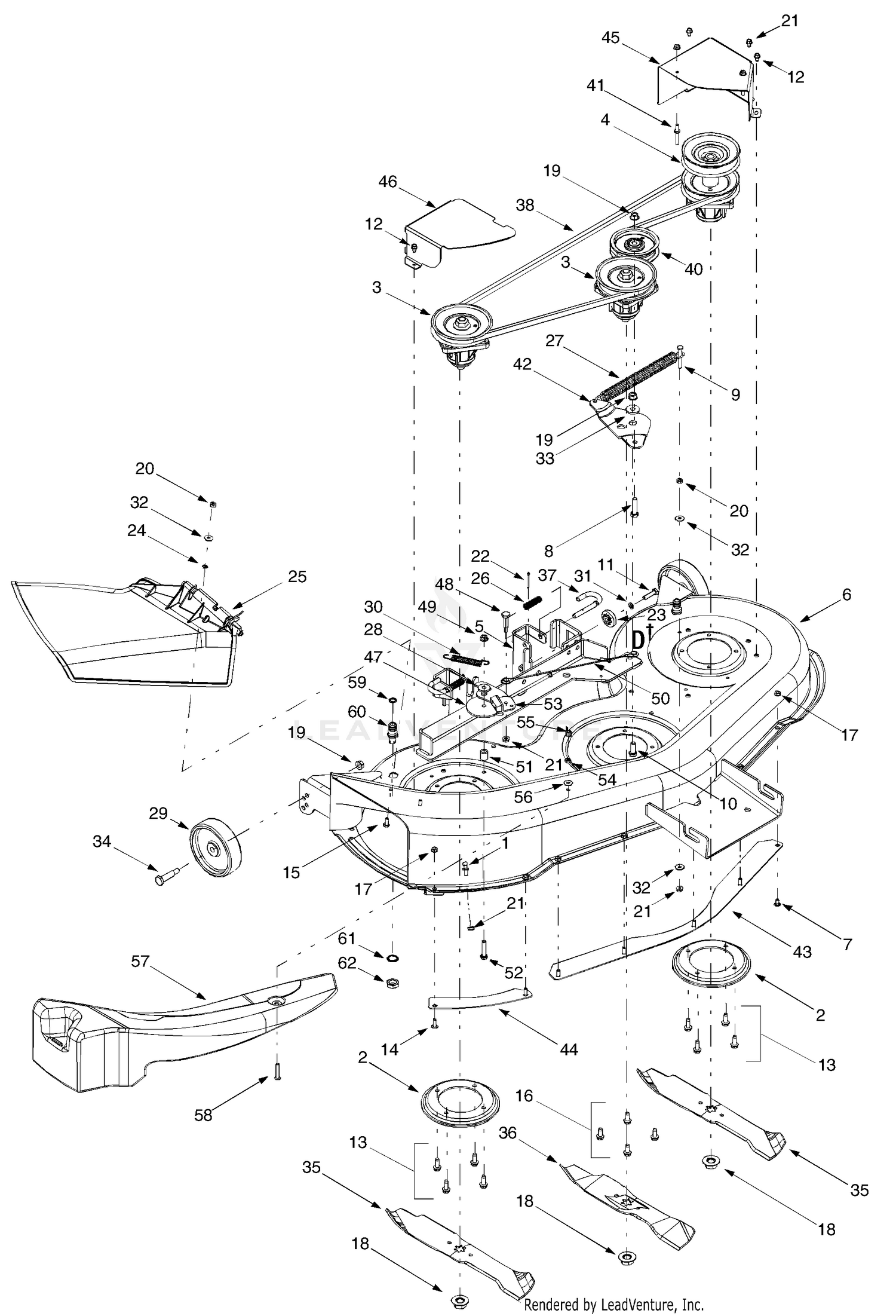

| Ref | Part Number | Description |
|---|
| 1 |
911-04069 |
Grass-catcher Pin This part replaces 711-04069. Price: $7.81 |
| 2 |
17982-0637 |
PLATE-SPINDLE Not Available This part replaces 17982. Price: |
| 3 |
918-0240C |
Spindle Assembly, 5.00 Dia. This part replaces 618-0430A. Price: $127.04 |
| 4 |
918-0596D |
PULLEY & SPINDLE ASSEMBLY W/O FTG This part replaces 618-0596. Price: $166.53 |
| 5 |
683-0254B |
Bracket Assembly, Deck, Hanger LH Not Available This part replaces 683-0254. Price: |
| 7 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 8 |
710-0344 |
Hex Cap Screw, 3/8-16 x 1.5 Price: $5.16 |
| 9 |
710-0501 |
Hex Cap Screw, 1/4-20 x 2.0 Price: $6.24 |
| 10 |
710-0514 |
Hex Cap Screw, 3/8-16 x 1.0 Price: $3.78 |
| 11 |
710-0528 |
Hex Cap Screw, 5/8-18 x 1.25 Price: $3.90 |
| 12 |
710-0599 |
Self-tapping Screw,1/4-20 x .5 Price: $3.86 |
| 13 |
710-0650 |
Self-tapping Screw,15/16-18 x .875 Price: $3.71 |
| 14 |
710-0703 |
Hex Screw, 1/4-20 x .75 Price: $3.66 |
| 15 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 16 |
710-1260A |
Self-tapping Screw, 5/16-18 x .75 Price: $3.34 |
| 17 |
712-0271 |
Hex Sems Nut, 1/4-20 Price: $3.78 |
| 18 |
712-0417A |
HEX NUT Price: $6.50 |
| 19 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 20 |
712-3006 |
HEX NUT Price: $4.05 |
| 21 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 22 |
714-0470 |
Cotter Pin, 1/8 x 1.25 Price: $3.90 |
| 23 |
917-04074 |
Adjustment, Deck, Gear This part replaces 717-1553A. Price: $11.45 |
| 24 |
726-0233 |
Push Nut. .25 x .5 Price: $3.93 |
| 25 |
631-05229 |
CHUTE ASSEMBLY This part replaces 731-1032B. Price: $71.37 |
| 26 |
932-0306A |
COMPRESSION SPRING This part replaces 732-0306. Price: $7.69 |
| 27 |
932-0594A |
Extension Spring .91 x 7.33 This part replaces 732-0594A. Price: $13.74 |
| 28 |
948-0324 |
BLADE ADAPTER 1.00 Not Available This part replaces 748-0324. Price: |
| 29 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 30 |
932-0429A |
Extension Spring, .50 x 3.97 Lg. This part replaces 732-0429A. Price: $8.29 |
| 31 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 32 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 33 |
938-0347 |
Spacer-Shld This part replaces 738-0347. Price: $8.93 |
| 34 |
938-0373 |
Shoulder Bolt, .496 x 1.525:3/8-16 This part replaces 738-0373. Price: $8.45 |
| 37 |
747-1116 |
Deck Release Pin Price: $11.17 |
| 38 |
954-0349 |
DECK SPINDLE BELT This part replaces 754-0349. Price: $37.46 |
| 40 |
756-0627D |
Idler Pulley 3.50 dia. This part replaces 756-0627B. Price: $28.58 |
| 41 |
911-0993 |
Belt Guard Pin This part replaces 711-0993. Price: $3.90 |
| 42 |
783-0139B-0637 |
IDLER BRACKET Not Available This part replaces 783-0139A. Price: |
| 43 |
783-0141 |
Center Deck Skirt Price: $53.24 |
| 44 |
783-0142-0637 |
RH Deck Skirt This part replaces 783-0142. Price: $42.48 |
| 45 |
783-1348D-0637 |
Deck Belt Cover LH This part replaces 783-1348. Price: $44.01 |
| 46 |
17258E |
Deck Belt Cover RH This part replaces 17258C. Price: $42.26 |
| 47 |
736-0416 |
FLAT WASHER .323 ID x 3 x .125 Not Available Price: |
| 48 |
738-0572 |
SHOULDER SCREW This part replaces 7380572. Price: $7.03 |
| 49 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 50 |
746-1107 |
Bracket Cable, 12" Price: $14.36 |
| 51 |
750-0807 |
Spacer, .385 x .625 x .70 Price: $5.44 |
| 52 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 53 |
97116 |
Deck Brake Assembly This part replaces 17116. Price: $48.57 |
| 54 |
712-3006 |
HEX NUT Price: $4.05 |
| 55 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 56 |
736-0173 |
Flat Washer, .28 x .74 x .063 Price: $3.76 |
| 57 |
731-1636 |
Mulch Plug Price: $131.51 |
| 58 |
710-0578 |
Screw, 1/4-20 x 1.5 Price: $3.93 |
| 59 |
921-0417 |
O-RING SEAL 16MM OD x 11MM ID Not Available This part replaces 721-0417. Price: |
| 60 |
737-04003D |
DECK WASH NOZZLE This part replaces 737-04003. Price: $20.69 |
| 61 |
736-0760 |
Lock Washer, 17 x 23.8 x 1.95 Price: $3.86 |
