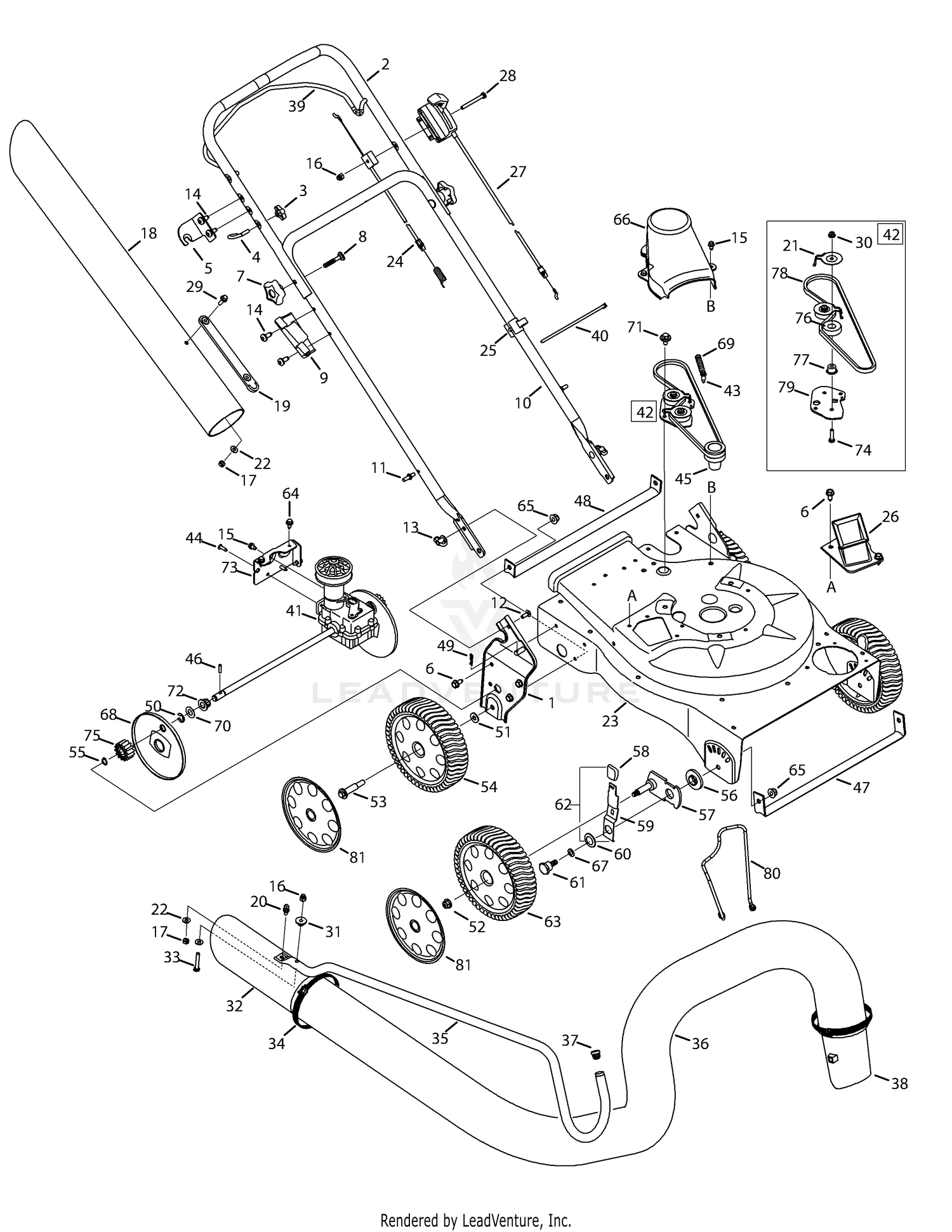

| Ref | Part Number | Description |
|---|
| 1 |
981-0155A-0638 |
Handle Brkt Ass’y LH (Not Shown) Not Available Price: |
| 1 |
981-0156A-0638 |
Handle Bracket Ass’y RH Price: $37.02 |
| 2 |
749-04163A-0637 |
UPPER GULLWING HANDLE This part replaces 749-04163-0637. Price: $43.34 |
| 3 |
720-0279 |
Knob Price: $3.93 |
| 4 |
710-1205 |
Eye Bolt Price: $3.53 |
| 5 |
781-1056-0637 |
Upper Handle Bracket Price: $21.30 |
| 6 |
710-0726 |
Hex Cap Screw, 5/16-12 x.750 Price: $3.82 |
| 7 |
720-04072A |
Handle Knob, 5/16-18 Price: $6.07 |
| 8 |
710-1174 |
Carriage Bolt Price: $6.28 |
| 9 |
731-04911 |
Nozzle Handle Clip Price: $10.05 |
| 10 |
749-04165-0637 |
Lower Handle Price: $38.11 |
| 11 |
711-1293 |
Studs Price: $4.21 |
| 12 |
710-0703 |
Carriage Screw, 1/4-20 x.75 Price: $3.66 |
| 13 |
712-0397A |
Wing Nut, 1/4-20 Price: $3.71 |
| 14 |
710-1611B |
TT Screw, 5/16-18 x .750 Price: $5.94 |
| 15 |
710-05073 |
Screw, 1/4-20 x .500 Price: $3.52 |
| 16 |
712-0442 |
Cap Lock Nut, 1/4-20 This part replaces 912-0442. Price: $6.01 |
| 17 |
712-0291 |
Hex Lock Nut, 1/4-20 This part replaces 912-0291. Price: $3.93 |
| 18 |
731-06445 |
Hose Extension Price: $35.34 |
| 19 |
723-04008A |
Chute Strap Price: $8.86 |
| 20 |
911-04069 |
Pin Price: $7.81 |
| 21 |
782-7598 |
Belt Keeper Price: $13.38 |
| 22 |
736-3020 |
Flat Washer .271 ID x .630 OD This part replaces 936-3020. Price: $5.94 |
| 23 |
781-04266-0638 |
Upper Flail Housing Price: $170.53 |
| 24 |
746P04156 |
CONTROL CABLE This part replaces 746-04156. Price: $37.56 |
| 25 |
731-1820 |
Cable Guide Price: $7.65 |
| 26 |
681-04088-0638 |
Chipper Chute Assembly Price: $66.42 |
| 27 |
946-04155A |
Speed Control Cable This part replaces 746-04155. Price: $80.81 |
| 28 |
710-1122 |
Hex Screw, 1/4-20 x 2.50 Price: $6.32 |
| 29 |
710-04666 |
Screw, 1/4-20 x .75 Price: $6.04 |
| 30 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 31 |
748-0457 |
Spacer Price: $4.74 |
| 32 |
731-2478A |
HOSE NOZZLE 3.875 This part replaces 731-2478. Price: $68.17 |
| 33 |
710-3288 |
Hex Cap Screw, 1/4-20 x 2.625 Price: $5.94 |
| 34 |
723-0295 |
Adjustment Clamp Price: $9.43 |
| 35 |
749-1270A |
Nozzle Handle Price: $61.84 |
| 36 |
764-0648A |
Vacuum Hose Price: $144.99 |
| 37 |
720-0369 |
Handle Plug Price: $12.19 |
| 38 |
731-06469 |
Hose Adapter Price: $34.66 |
| 39 |
747-04305B |
GULLWING DRIVE BAIL- RED This part replaces 747-04305A. Price: $35.40 |
| 40 |
725-0157 |
Cable Tie Price: $3.46 |
| 41 |
918-04460 |
Transmission Assembly Price: $243.99 |
| 42 |
N/A |
Idler Assembly (Incl. Ref.# 76-79) |
| 43 |
710-1650 |
Shoulder Screw, #12-24 x .30 x .46 Price: $4.22 |
| 44 |
710-1220 |
Screw, #12-16 x .750 Price: $3.96 |
| 45 |
911-04245 |
Impeller Hub Price: $62.73 |
| 46 |
915-0221 |
Dowel Pin Price: $3.93 |
| 47 |
781-04082-0637 |
Front Wheel Support Brace Price: $25.01 |
| 48 |
781-04081-0637 |
Rear Wheel Support Brace Price: $24.01 |
| 49 |
714-0104 |
Hairpin Clip This part replaces 914-0104. Price: $3.90 |
| 50 |
916-0104 |
E-Ring Price: $3.37 |
| 51 |
736-3004 |
Flat Washer, .406 x .875 x .105 This part replaces 936-3004. Price: $4.08 |
| 52 |
712-04217 |
Flange Lock Nut, 3/8-16 Price: $3.75 |
| 53 |
738-04523 |
SHOULDER SCREW .496X1.605 3/8-16 Price: $9.29 |
| 54 |
634-05039 |
Wheel, 8 x 2 Price: $36.45 |
| 55 |
716-0865 |
Snap Ring Price: $3.86 |
| 56 |
741-04242 |
Height Adjustment Bearing Price: $6.57 |
| 57 |
681-04195 |
Pivot Arm Assembly Price: $13.05 |
| 58 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 59 |
732-1026 |
Spring Lever Price: $5.77 |
| 60 |
736-0741 |
Bell Washer, .760 ID x.25 OD Price: $3.99 |
| 61 |
738-1172 |
Shoulder Screw, .750 x.500 Price: $5.01 |
| 63 |
634-04665 |
Front Wheel, 8 x2 This part replaces 634-04592. Price: $35.26 |
| 64 |
710-1652 |
Screw, 1/4-20 x .625 Price: $3.86 |
| 65 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 66 |
731-04879 |
Belt Cover Price: $25.11 |
| 67 |
736-0314 |
Thrust Washer .382 ID x .684 OD This part replaces 936-0314. Price: $6.01 |
| 68 |
731-04643 |
Wheel Cover Price: $7.28 |
| 69 |
732-04217 |
Extension Spring, .375 x 2.95 Price: $9.16 |
| 70 |
736-0369 |
Flat Washer, .508 x 1.0 x .020 This part replaces 936-0369. Price: $3.90 |
| 71 |
738-0930 |
Shoulder Screw, .560 x.165 Price: $6.07 |
| 72 |
741-04108 |
Drive Axle Bushing Price: $5.20 |
| 73 |
781-04078-0637 |
Transmission Mounting Bracket Price: $15.07 |
| 74 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 75 |
717-1761 |
Spur Gear - LH (Not Shown) Price: $12.11 |
| 75 |
717-1762 |
Spur Gear - RH Price: $12.11 |
| 76 |
941-0600 |
Ball Bearing Price: $23.34 |
| 77 |
750-1050 |
Flange Spacer,.260 x.659 x.517 Price: $4.56 |
| 78 |
954-0369 |
Belt, 3/8 x 32.5 Price: $26.71 |
| 79 |
781-04077-0637 |
Idler Bracket Price: $12.34 |
| 80 |
747-04985 |
Tube Holder Price: $22.76 |
