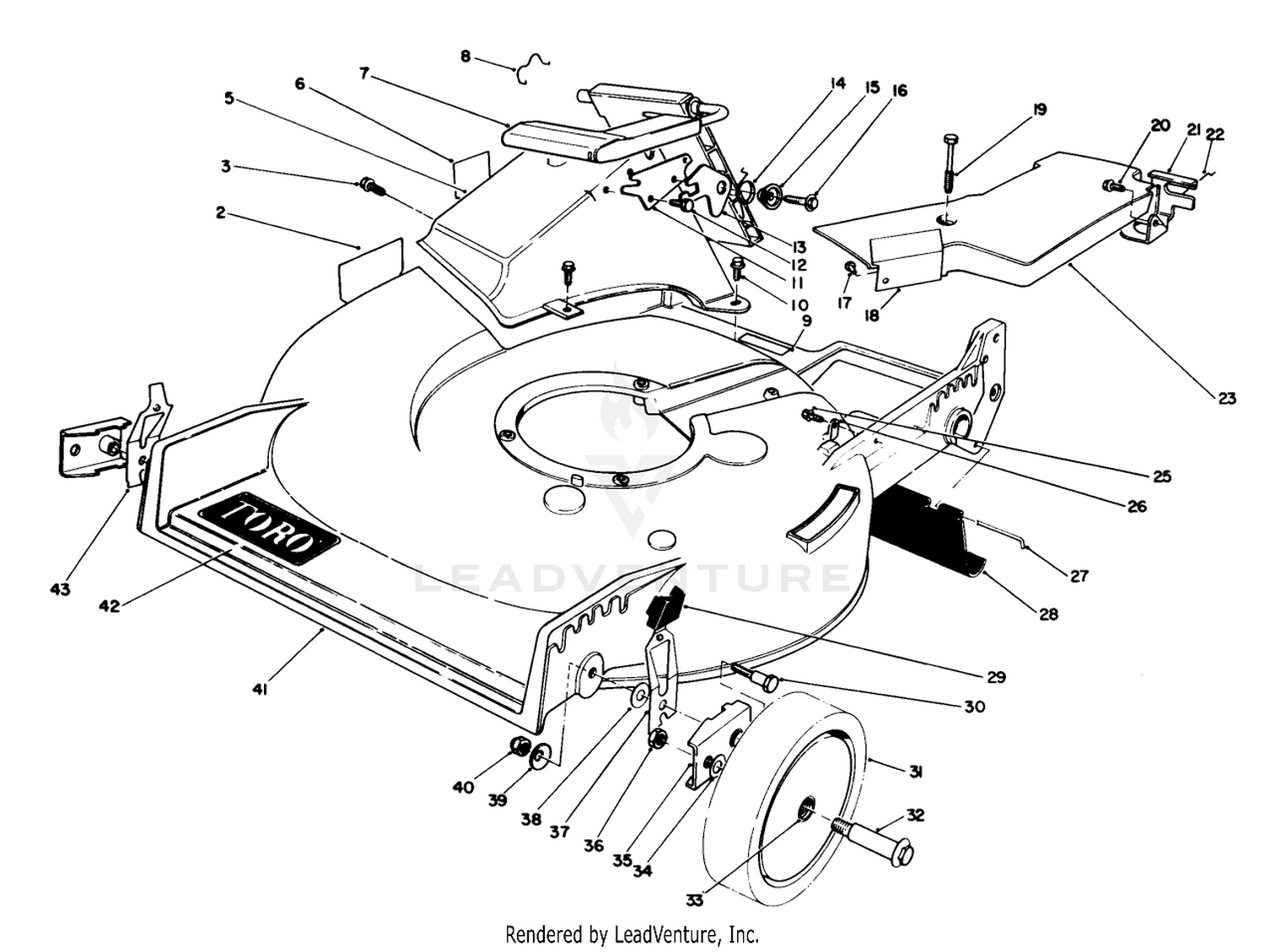

| Ref | Part Number | Description |
|---|
| 2 |
56-6270 |
DECAL-DANGER Price: $7.08 |
| 3 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 5 |
116239-01 |
DISCONTINUED This part replaces 11-6239. Price: Call Us |
| 6 |
62-4060 |
DISCONTINUED Price: Call Us |
| 7 |
77-0200 |
DISCONTINUED This part replaces 51-0201. Price: Call Us |
| 8 |
47-5840 |
DOOR RET SPRING Price: $5.31 |
| 9 |
40-2850 |
DISCONTINUED Price: Call Us |
| 10 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 11 |
23-1040 |
DOOR LATCH PLATE Price: $18.75 |
| 12 |
46-8090 |
SCREW-PLASTITE Price: $2.04 |
| 13 |
424010 |
Latch-Door Price: Call Us |
| 14 |
33-4860 |
TORSION SPRING Price: $61.99 |
| 15 |
43-4840 |
DOOR SPACER Price: $6.39 |
| 16 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 17 |
3295-35 |
RIVET-HEAD, FLAT Price: $1.79 |
| 18 |
38-8730 |
DISCONTINUED Price: Call Us |
| 19 |
37-7260 |
SCREW-HWH Price: $5.09 |
| 20 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 21 |
82-5680-03 |
BRACKET-TRACTION, ADJ. This part replaces 62-3940. Price: $10.99 |
| 22 |
46-7030 |
RETAINER-CABLE Price: $5.29 |
| 23 |
52-7404 |
BELT COVER ASM Price: $64.99 |
| 25 |
12-5450 |
SCREW Price: $7.99 |
| 26 |
2412-83 |
CLAMP-CABLE Price: $9.85 |
| 27 |
33-3208 |
ROD-SHIELD Price: $13.99 |
| 28 |
112-9989 |
SHIELD-TRAILING This part replaces 44-0580. Price: $26.99 |
| 29 |
25-7740 |
KNOB-ARM Price: $4.59 |
| 30 |
44-5270 |
PIVOT SCREW Price: $7.99 |
| 31 |
51-2751 |
WHEEL AND TIRE ASM This part replaces 11-9509. Price: $28.99 |
| 32 |
27-6230 |
BOLT-WHEEL Price: $7.49 |
| 33 |
27-6250 |
BUSHING Price: $2.29 |
| 34 |
40-1940 |
WASHER Price: $1.59 |
| 35 |
47-2940 |
HP PIVOT ARM ASM Price: $45.26 |
| 36 |
32153-11 |
NUT-LOCK This part replaces 52-3620. Price: $3.99 |
| 37 |
52-7480 |
DISCONTINUED Price: Call Us |
| 38 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 39 |
3290-456 |
WASHER-BELLEVILLE Price: $2.59 |
| 40 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 42 |
71-0600 |
DECAL Price: $12.99 |
