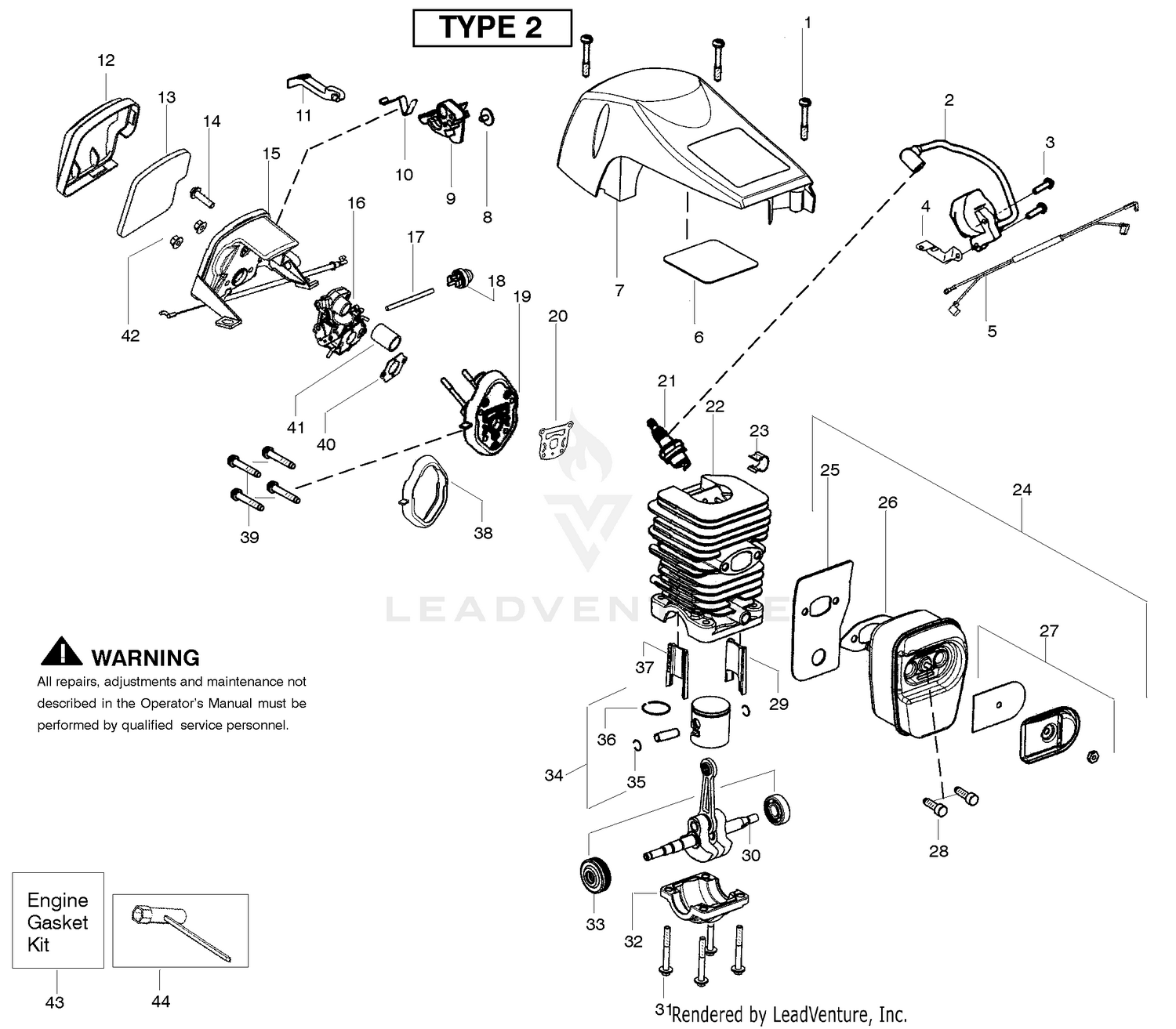

| Ref | Part Number | Description |
|---|
| 1 |
530016153 |
Screw Price: $1.99 |
| 2 |
530039232 |
Module-Ignition Price: $16.40 |
| 3 |
530016432 |
Screw Price: $1.99 |
| 4 |
530058661 |
Strap-Ground Price: $1.99 |
| 5 |
530057943 |
Assy-Wire Harness Price: $5.99 |
| 6 |
530055698 |
Reflector-Tape Price: $1.99 |
| 8 |
530016080 |
Screw Price: $1.99 |
| 9 |
530057891 |
Lever-Ignition Switch Price: $4.99 |
| 10 |
530057908 |
Spring-Ignition Switch Price: $2.99 |
| 10 |
98-9459 |
CAMSHAFT-FUEL Price: $159.71 |
| 11 |
530059399 |
Knob-Choke Price: $1.99 |
| 12 |
530059001 |
Cover-Air Filter Price: $3.99 |
| 13 |
530057869 |
Filter-Air Price: $1.99 |
| 14 |
530016425 |
Screw Price: $1.99 |
| 15 |
530150029 |
Housing-Air Filter w/cable Price: $4.24 |
| 16 |
545070601 |
Carb-Zama W-26B This part replaces 530035590. Price: $27.99 |
| 17 |
530069247 |
Kit-Fuel Line (Small) Price: $3.69 |
| 18 |
530047721 |
Bulb-Purge "snap-in" Price: $3.99 |
| 20 |
107-9077 |
BEARING-BALL Price: $81.95 |
| 20 |
530071894 |
Gasket-cyl. o-ring (kit) Price: $6.99 |
| 21 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.69 |
| 23 |
530058660 |
Clip-High Tension Lead Price: $1.99 |
| 25 |
530057942 |
Backplate-Muffler Price: $5.99 |
| 26 |
530071894 |
Gasket-Muffler (kit) Price: $6.99 |
| 27 |
545006056 |
Kit-Spark Arrestor Price: $6.99 |
| 28 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 29 |
545015301 |
Insert-Left (black) Cyl. This part replaces 530057885. Price: $2.99 |
| 30 |
107-9078 |
BEARING-BALL Price: $81.95 |
| 30 |
545112901 |
Assy-Crankshaft/Rod This part replaces 530012537. Price: $46.99 |
| 31 |
530016417 |
Bolt Price: $1.99 |
| 32 |
530057941 |
Cap-Crankcase Price: $5.99 |
| 33 |
530056363 |
Assy-Bearing/Seal Price: $11.99 |
| 35 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 36 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 37 |
545015401 |
Insert-Right (gray) Cyl. This part replaces 530057886. Price: $2.99 |
| 38 |
530071894 |
Seal-Adaptor (kit) Price: $6.99 |
| 39 |
530016426 |
Screw Price: $1.99 |
| 40 |
530071894 |
Gasket-Carb. (kit) Price: $6.99 |
| 41 |
530057926 |
Tube-Intake Price: $1.99 |
| 42 |
530016101 |
Nut-Carb. Price: $1.99 |
| 44 |
530031163 |
Wrench-Bar Price: $4.99 |
| 60 |
98-9590 |
NUT-CAP Price: $3.86 |
| 70 |
98-9669 |
GEAR-PUMP, INJECTION Price: $86.00 |
| 80 |
98-9595 |
KEY-WOODRUFF Price: $2.04 |
| 90 |
98-9511 |
STOPPER-FUEL, CAMSHAFT Price: $5.18 |
| 100 |
98-7692 |
BOLT Price: $0.92 |
| 110 |
98-9644 |
GOVERNOR SHAFT ASM Price: $527.54 |
| 120 |
98-9562 |
HOLDER-GEAR, GOVERNOR Price: $61.49 |
| 130 |
98-9673 |
GEAR-GOVERNOR Price: $137.25 |
| 140 |
98-9561 |
HOLDER-WEIGHT, GOVERNOR Price: $23.68 |
| 150 |
98-9559 |
GOVERNOR WEIGHT ASM Price: $105.15 |
| 160 |
98-9560 |
SHAFT-WEIGHT, GOVERNOR Price: $6.17 |
| 170 |
98-9692 |
ROLLER Price: $11.45 |
| 180 |
98-9563 |
SLEEVE-GOVERNOR Price: $29.68 |
| 190 |
98-9564 |
WASHER-THRUST Price: $5.01 |
| 200 |
107-9079 |
BEARING-BALL Price: $81.78 |
| 210 |
98-9657 |
CIRCLIP-SHAFT, GOVERNOR Price: $4.48 |
