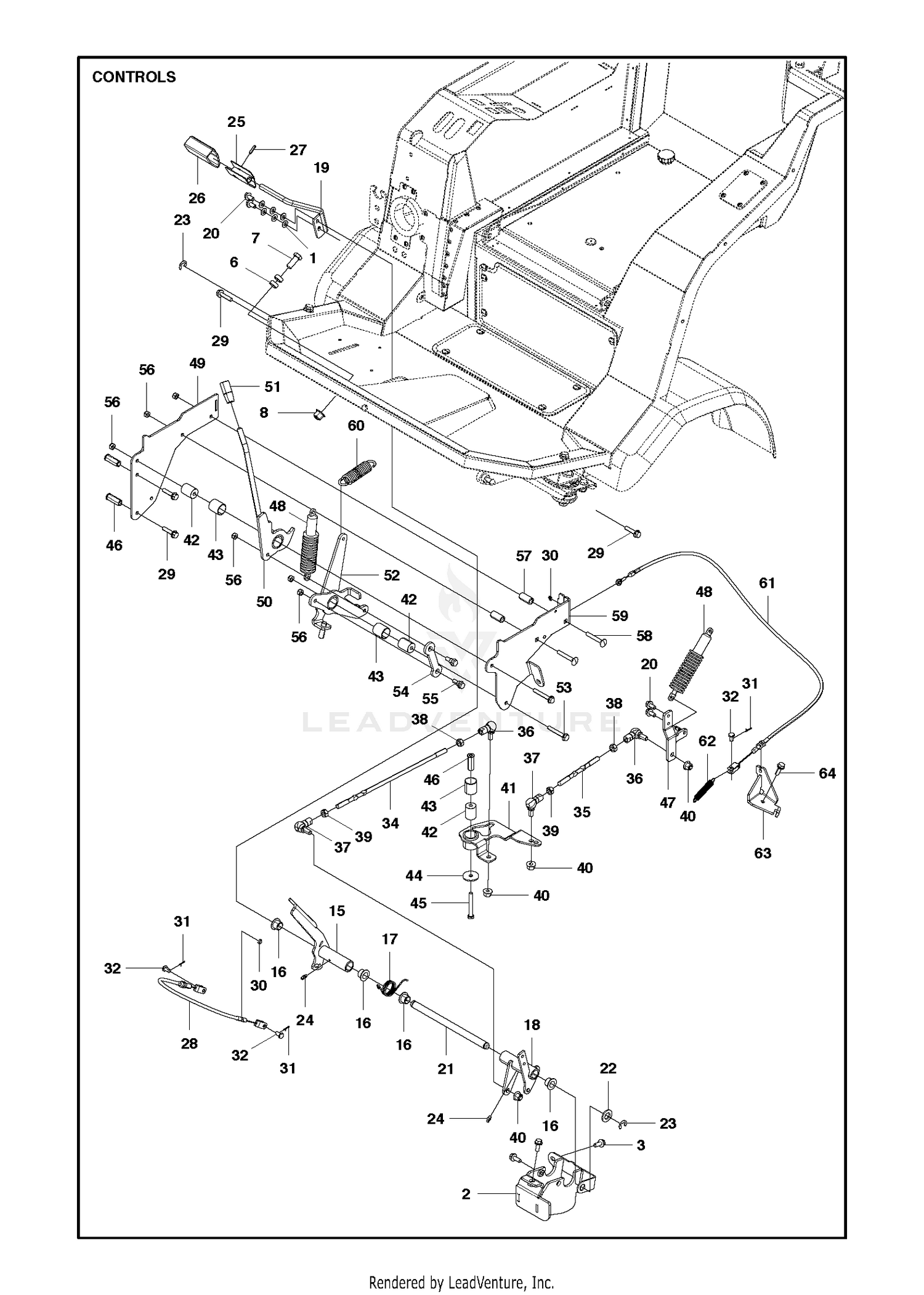

CONTROLS
Parts (74)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-0266 | HOOD ASM Price: $1,783.05 |
| 1 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 2 | 115-0364-0P | MOUNT-HOOD This part replaces 115-0364-03. Price: $193.37 |
| 2 | 582084501 | NEEDS DESCRIPTION Price: Call Us |
| 3 | 115-0423 | SEAL-BULB Price: $20.61 |
| 3 | 506570104 | BOLT Price: $4.99 |
| 4 | 115-0370-03 | SCREEN Price: $394.20 |
| 5 | 115-0422-0P | SEAL-HOOD This part replaces 115-0422-03. Price: $43.49 |
| 6 | 117-2382 | PLUG-PLASTIC Price: $0.69 |
| 6 | 576998701 | NEEDS DESCRIPTION Price: Call Us |
| 7 | 104-7201 | NUT-HF Price: $0.69 |
| 7 | 725254071 | SCREW Price: $7.99 |
| 8 | 3229-1 | BOLT-CARR Price: $3.39 |
| 8 | 576645706 | NEEDS DESCRIPTION Price: Call Us |
| 9 | 3234-4 | SCREW-HHF Price: $0.50 |
| 10 | 110-8288 | SEAL-FOAM Price: $2.67 |
| 11 | 103-2897 | LATCH-CATCH Price: $7.99 |
| 12 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 13 | 32105-13 | SCREW-HWH Price: $1.59 |
| 14 | 117-3171 | ROD-PROP Price: $33.41 |
| 15 | 119-1415 | PIN-COTTER, LOCKING Price: $0.22 |
| 15 | 588692001 | NEEDS DESCRIPTION Price: Call Us |
| 16 | 3234-42 | SCREW-HHF Price: $1.10 |
| 16 | 584871302 | BEARING FLANGE This part replaces 506554301. Price: $4.99 |
| 17 | 576475101 | NEEDS DESCRIPTION Price: Call Us |
| 18 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 18 | 576348201 | NEEDS DESCRIPTION Price: Call Us |
| 19 | 117-3369 | FENDER-REAR, RH Price: $98.96 |
| 19 | 576291501 | NEEDS DESCRIPTION Price: Call Us |
| 20 | 117-3368 | FENDER-REAR, LH Price: $92.88 |
| 20 | 506570103 | BOLT Price: $3.99 |
| 21 | 576348901 | NEEDS DESCRIPTION Price: Call Us |
| 22 | 734118601 | WASHER Price: $2.99 |
| 23 | 735311820 | Lock Ring Price: $1.99 |
| 23 | 9335054 | PIN-HAIR Price: $1.49 |
| 24 | 738881001 | GREASE NIPPLE Price: $6.99 |
| 25 | 535479901 | NEEDS DESCRIPTION Price: Call Us |
| 26 | 586966401 | PEDAL RUBBER Price: $14.99 |
| 28 | 576352201 | NEEDS DESCRIPTION Price: Call Us |
| 29 | 506570106 | SCREW EHHFM Price: $4.99 |
| 30 | 735310920 | E-RING 5 Price: $3.99 |
| 31 | 721615201 | Cotter Pin Price: $1.99 |
| 32 | 721839901 | Clevis Pin Price: $5.99 |
| 34 | 576291402 | NEEDS DESCRIPTION Price: Call Us |
| 35 | 576291401 | NEEDS DESCRIPTION Price: Call Us |
| 36 | 506789901 | LINK Price: $89.99 |
| 37 | 506789902 | NEEDS DESCRIPTION Price: Call Us |
| 38 | 506897601 | NUT Price: $3.99 |
| 39 | 731232001 | Nut Price: $3.99 |
| 40 | 576645705 | NEEDS DESCRIPTION Price: Call Us |
| 41 | 579440901 | NEEDS DESCRIPTION Price: Call Us |
| 42 | 576351501 | NEEDS DESCRIPTION Price: Call Us |
| 43 | 506986102 | BUSHING This part replaces 506986101. Price: $14.99 |
| 44 | 576351601 | NEEDS DESCRIPTION Price: Call Us |
| 45 | 725246451 | SCREW Price: $5.99 |
| 46 | 576434201 | NEEDS DESCRIPTION Price: Call Us |
| 47 | 576351201 | NEEDS DESCRIPTION Price: Call Us |
| 48 | 506938301 | SHOCK ABSORBER Price: $149.99 |
| 49 | 579303601 | NEEDS DESCRIPTION Price: Call Us |
| 50 | 579325401 | NEEDS DESCRIPTION Price: Call Us |
| 51 | 588838901 | NEEDS DESCRIPTION Price: Call Us |
| 52 | 579325501 | NEEDS DESCRIPTION Price: Call Us |
| 53 | 506570107 | SCREW EHHFM Price: $5.99 |
| 54 | 579303801 | NEEDS DESCRIPTION Price: Call Us |
| 55 | 506597401 | BOLT Price: $5.99 |
| 56 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 57 | 505450301 | TUBE Price: $9.99 |
| 58 | 535423802 | NEEDS DESCRIPTION Price: Call Us |
| 59 | 579303701 | NEEDS DESCRIPTION Price: Call Us |
| 60 | 579304001 | NEEDS DESCRIPTION Price: Call Us |
| 61 | 579328701 | NEEDS DESCRIPTION Price: Call Us |
| 62 | 544133601 | NEEDS DESCRIPTION Price: Call Us |
| 63 | 579304101 | NEEDS DESCRIPTION Price: Call Us |
| 64 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
