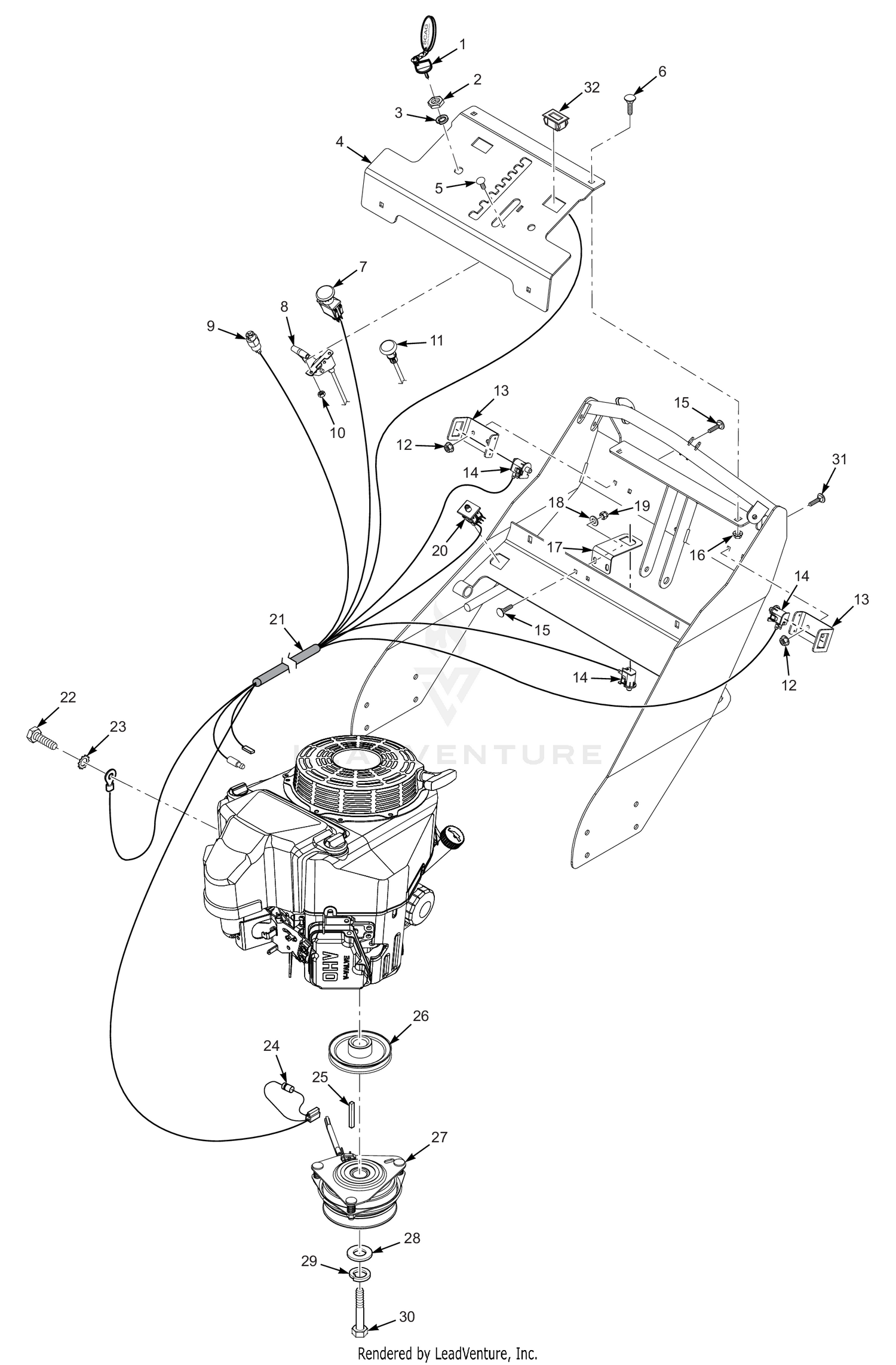

| Ref | Part Number | Description |
|---|
| 1 |
462069 |
Key, Assembly w/Fob Price: Call Us |
| 2 |
48017-04 |
Nut, 5/8-32 Special Price: Call Us |
| 3 |
48017-03 |
LOCK WASHER, 5/8" INTERNAL TOOTH Price: Call Us |
| 4 |
462576 |
Instrument Panel w/Decal Price: Call Us |
| 5 |
04003-43 |
Bolt, Carriage #10-24 x 1/2" Price: Call Us |
| 6 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 7 |
485833 |
Switch, PTO - 10 Amp Price: Call Us |
| 8 |
484665 |
Throttle Cable Price: Call Us |
| 9 |
48609 |
KEY SWITCH, MANUAL SRT.(INCL. HWD) Price: Call Us |
| 10 |
04021-26 |
Nut, Elastic Stop #10-24 Price: Call Us |
| 11 |
483552 |
Choke Control Price: Call Us |
| 12 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 13 |
425937 |
Bracket, Operator Presence Switch Price: Call Us |
| 14 |
48717 |
SWITCH, NEUTRAL INTERLOCK Price: Call Us |
| 15 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 16 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 17 |
425948 |
Bracket, Neutral Switch (Manual Start) Price: Call Us |
| 18 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 19 |
04021-08 |
HEX, NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 20 |
483473 |
Switch, Double Pole - Plunger Price: Call Us |
| 21 |
486121 |
Wire Harness Price: Call Us |
| 22 |
04002-17 |
Bolt, Hex Hd. M8-1.25 x 14mm Price: Call Us |
| 23 |
04031-03 |
Lockwasher, 5/16" Ext. Tooth (Kohler x1) Price: Call Us |
| 24 |
483958 |
Diode, 600V 6 Amp Price: Call Us |
| 25 |
04063-03 |
KEY, 1/4 X 1/4 X 2-1/2" Price: Call Us |
| 26 |
484595 |
Pulley, 4-1/2" Dia. - 1" Bore Price: Call Us |
| 27 |
462610 |
Electric Clutch Assembly Price: Call Us |
| 28 |
04041-28 |
Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52) Price: Call Us |
| 29 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 30 |
04102-06 |
Bolt, Hex Head 7/16-20 x 3" w/t Patch Price: Call Us |
| 31 |
04003-09 |
Bolt, Carriage, 1/4-20 x 1-1/4" Price: Call Us |
