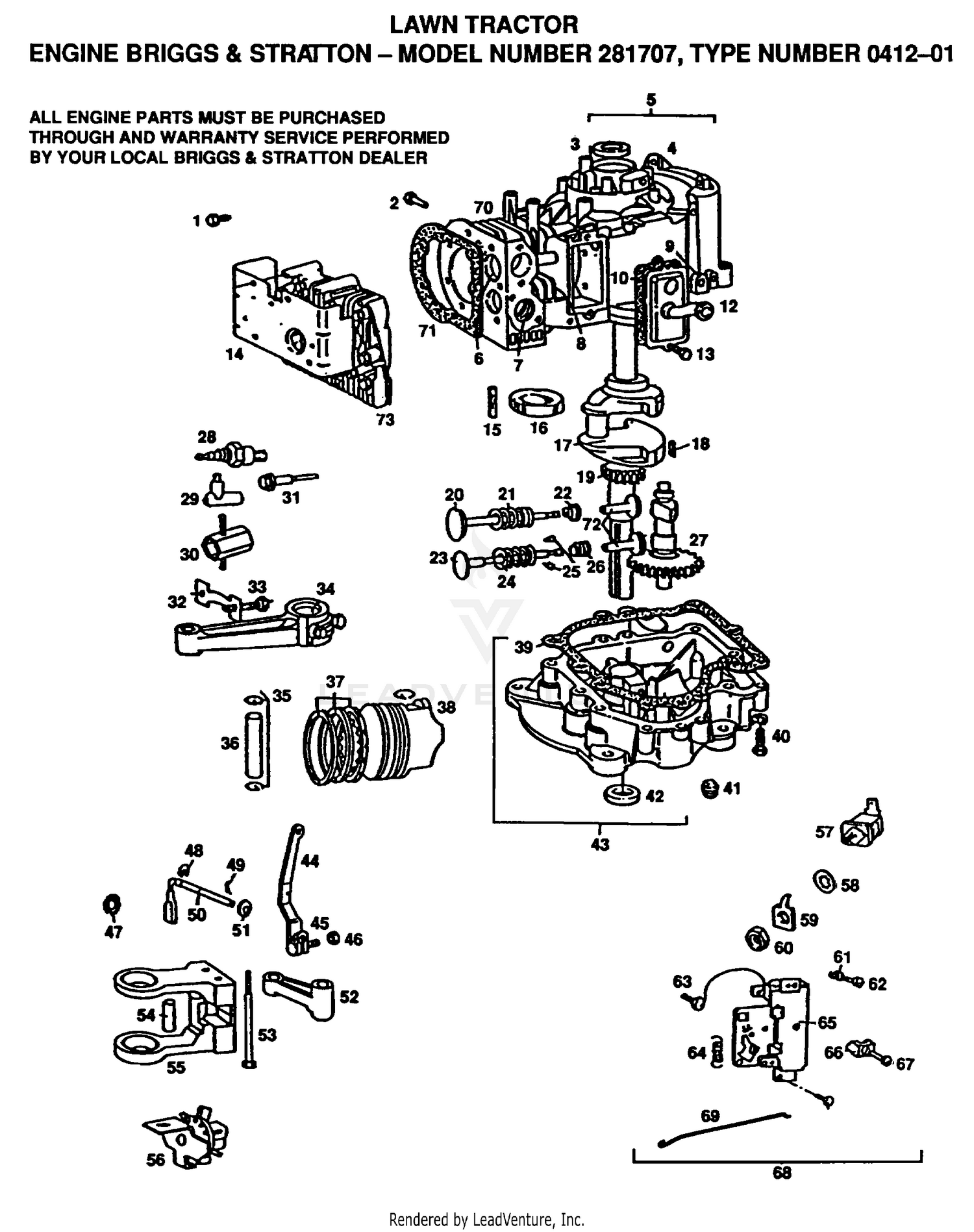

ENGINE/BRIGGS AND STRATTON

ENGINE/BRIGGS AND STRATTON

Parts (80)

RefPart NumberDescription
1 93158 SCREW, SEMS Price: Call Us
2 93163 SCREW Price: Call Us
3 399265 P/N CONFLICT - CHECK WITH SUPPLIER Price: Call Us
4 391086 SEAL, OIL Price: Call Us
5 490450 CYLINDER ASSEMBLY Price: Call Us
6 261463 SEAT, INTAKE VALVE, STANDARD Price: Call Us
7 210940 SEAT] Price: Call Us
7 86-7330 SEAL KIT Price: $95.00
8 261961 GUIDE, EXHAUST VALVE Price: Call Us
9 231597 BUSHING, GOVERNOR CRANK, 1/4" I.D. Price: Call Us
10 27803 GASKET, VALVE COVER Price: Call Us
11 391406 BREATHER ASSEMBLY Price: Call Us
12 280100 TUBE, BREATHER Price: Call Us
13 93394 SCREW, SEMS, BREATHER, MOUNTING Price: Call Us
14 491490 COVER, CYLINDER HEAD Price: Call Us
15 91460 PIN Price: Call Us
16 262243 ECCENTRIC Price: Call Us
17 490466 CRANKSHAFT Price: Call Us
18 222698 KEY, FLYWHEEL Price: Call Us
19 262135 GEAR, TIMING Price: Call Us
20 262247 VALVE, INTAKE Price: Call Us
21 65906 SPRING, INTAKE VALVE Price: Call Us
22 221596 RETAINER, INTAKE VALVE Price: Call Us
23 262246 VALVE, EXHAUST Price: Call Us
24 26828 SPRING, EXHAUST VALVE Price: Call Us
25 93630 RETAINER, EXHAUST VALVE ROTOCOIL(2) Price: Call Us
26 292260 RETAINER, EXHAUST VALVE Price: Call Us
27 212897 GEAR, CAM Price: Call Us
28 293918 PLUG, SPARK RESISTOR Price: Call Us
29 66538 ELBOW, SPARK PLUG Price: Call Us
30 89838 WRENCH SPARK PLUG Price: Call Us
31 93723 SCREW, CYLINDER HEAD 3" Price: Call Us
32 222299 LOCK, CONNECTING ROD SCREW Price: Call Us
33 92909 SCREW, CONNECTING ROD Price: Call Us
34 490348 ROD ASSEMBLY, CONNECTING Price: Call Us
35 260924 LOCK, PISTON PIN Price: Call Us
36 299691 PIN ASSEMBLY, PISTON, STANDARD Price: Call Us
36 391286 PIN ASSEMBLY, PISTON .005" OVER Price: Call Us
37 391781 RING SET, PISTON .010" OVERSIZE Price: Call Us
37 391782 RING SET, PISTON .020" OVERSIZE Price: Call Us
37 391783 RING SET, PISTON .030" OVERSIZE Price: Call Us
37 394665 RING SET Price: Call Us
38 394661 PISTON ASSEMBLY, STANDARD Price: Call Us
38 394662 PISTON ASSEMBLY .010" OVERSIZE Price: Call Us
38 394663 PISTON ASSEMBLY .020" OVERSIZE Price: Call Us
38 394664 PISTON ASSEMBLY .030" OVERSIZE Price: Call Us
39 271916 GASKET, CRANKCASE COVER 1/64" Price: Call Us
40 94305 SCREW, SEMS, BASE MOUNTING Price: Call Us
41 91084 PLUG OIL DRAIN Price: Call Us
42 291675 SEAL, OIL Price: Call Us
43 490452 BASE Price: Call Us
44 490927 LEVER ASSY, GOVERNOR Price: Call Us
45 92613 BOLT, GOVERNOR LEVER Price: Call Us
46 231082 NUT, HEX Price: Call Us
47 491323 SEAL, GOVERNOR Price: Call Us
48 93307 RETAINER, E-RING Price: Call Us
49 93306 COTTER, HAIR PIN Price: Call Us
50 231058 CRANK, GOVERNOR Price: Call Us
51 222450 WASHER, GOVERNOR LEVER Price: Call Us
52 212359 LINK, COUNTERWEIGHT Price: Call Us
53 93875 SCREW, COUTENWEIGHT Price: Call Us
54 298909 PIN ASSY, PISTON, STD Price: Call Us
55 399891 COUNTERWEIGHT ASSY Price: Call Us
56 490815 GOVERNOR GEAR Price: Call Us
57 398525 INSULATOR ASSEMBLY Price: Call Us
58 92791 WASHERLOCK Price: Call Us
59 93722 TERMINAL, SPADE Price: Call Us
60 90576 NUT, HEX Price: Call Us
61 26157 SPRING, THROTTLE ADJUSTMENT Price: Call Us
62 90200 SCREW Price: Call Us
63 93572 SCREW Price: Call Us
64 260695 SPRING, GOVERNOR Price: Call Us
65 390784 PLATE Price: Call Us
66 221535 CLAMP Price: Call Us
67 93496 SCREW, SEMS Price: Call Us
68 260584 SPRING, GOVERNOR LINK Price: Call Us
69 262348 LINK, GOVERNOR Price: Call Us
70 223715 SHIELD Price: Call Us
71 271866 GASKET, CYLINDER HEAD Price: Call Us
72 262248 TAPPET-VALVE Price: Call Us
