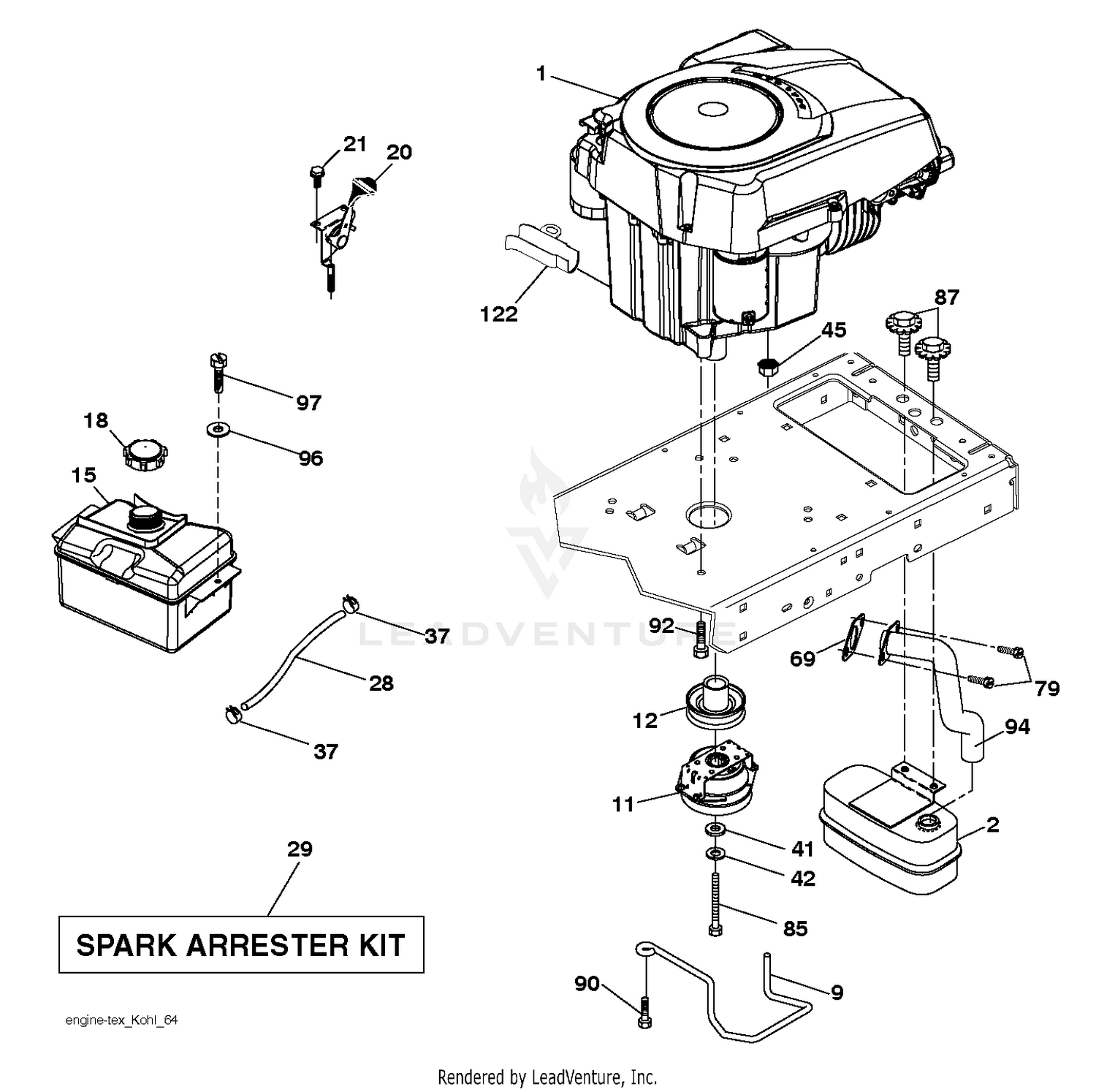

| Ref | Part Number | Description |
|---|
| 1 |
32-1140 |
DISCONTINUED This part replaces 321-13. Price: $2.04 |
| 2 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S This part replaces 580532301. Price: $39.99 |
| 3 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 4 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 5 |
10-7070 |
KEY-SQUARE Price: $1.02 |
| 6 |
61-2120 |
DISCONTINUED Price: Call Us |
| 7 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 9 |
596501502 |
Keepers This part replaces 584908001. Price: $9.99 |
| 10 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 11 |
587241501 |
CLUTCH.OGURA.4.4PD.GT1.5-EH13V Price: $199.99 |
| 11 |
61-3470 |
AIR CLEANER HOSE Price: $39.40 |
| 12 |
3334-945 |
TIE-CABLE This part replaces 3333-975. Price: $0.43 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 13 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 14 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 15 |
581289901 |
FUEL.TANK.ASM.NON-EPA Price: $44.99 |
| 15 |
76-0070 |
DISCONTINUED Price: Call Us |
| 16 |
94-3428 |
MODULE - INTERLOCK Price: $118.55 |
| 17 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 18 |
70-7080 |
WASHER Price: $5.31 |
| 19 |
92-1810 |
TORQUE ARM WA - CLUTCH Price: $31.82 |
| 20 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $27.99 |
| 20 |
92-1813 |
TUBE-SPACER, TORQUE ARM Price: $8.09 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
70-8020 |
DISCONTINUED Price: Call Us |
| 22 |
70-8040 |
WASHER Price: $5.46 |
| 23 |
3253-27 |
WASHER-LOCK Price: $2.24 |
| 24 |
3213-9 |
SCREW-HH Price: $5.50 |
| 25 |
61-3390 |
BELT Price: $39.04 |
| 26 |
92-7949 |
MUFFLER Price: $466.58 |
| 27 |
2112-9 |
CLAMP Price: $7.78 |
| 28 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 29 |
3217-6 |
NUT-HEX Price: $1.19 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
12-3270 |
SCREW Price: $3.09 |
| 31 |
61-0020-03 |
MUFFLER SHROUD ASM This part replaces 61-0020. Price: $445.18 |
| 32 |
3256-70 |
WASHER-FLAT Price: $0.25 |
| 33 |
323-10 |
SCREW-HH This part replaces 322-46. Price: $0.89 |
| 35 |
32128-25 |
NUT-HF Price: $3.19 |
| 36 |
70-8030 |
KEY Price: $9.12 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
84-1840-03 |
MUFFLER GRILLE This part replaces 84-1840. Price: $431.06 |
| 38 |
2412-41 |
CLAMP-R Price: $4.82 |
| 39 |
3290-410 |
TIE-MOUNT, PUSH Price: $4.57 |
| 40 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
323-8 |
SCREW-HH Price: $1.20 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 44 |
3218-1 |
NUT-JAM Price: $1.29 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 45 |
92-1819 |
DISCONTINUED Price: Call Us |
| 46 |
61-3340 |
BUSHING Price: $32.74 |
| 47 |
66-6840 |
DECAL-WARNING, HOT SURFACE Price: $64.41 |
| 47 |
93-8071 |
DECAL-SURFACE, HOT Price: $7.43 |
| 48 |
324-7 |
SCREW-HH Price: $1.79 |
| 49 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 50 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 51 |
92-1814 |
SPACER - TORQUE ARM Price: $17.44 |
| 52 |
322-3 |
SCREW-HH Price: $0.79 |
| 69 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 85 |
581332804 |
CLUTCH BOLT7/16-20X3.5 GR524HR Price: $6.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 122 |
532421922 |
EXTENSION DRAIN OIL Price: $24.99 |
