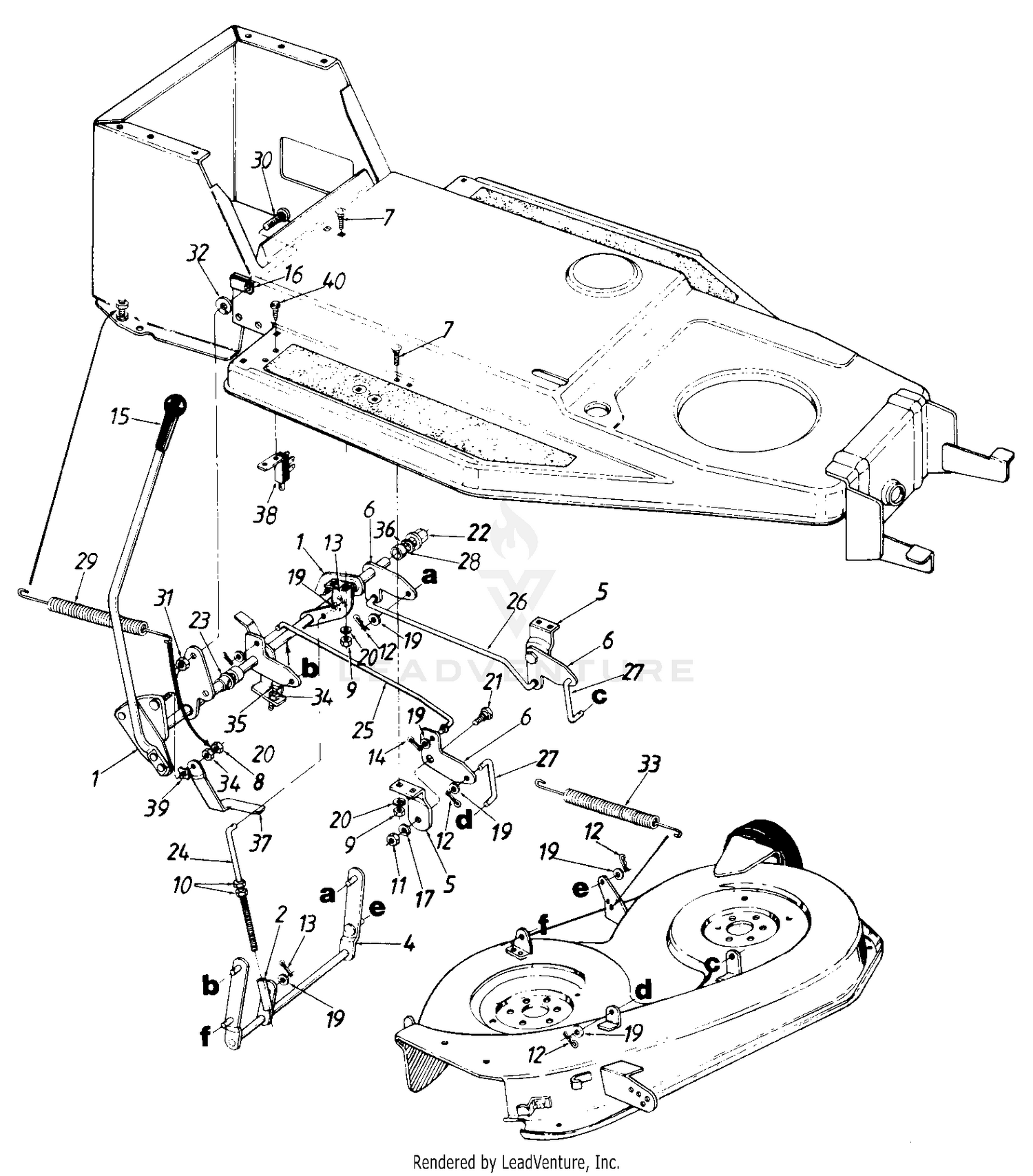

| Ref | Part Number | Description |
|---|
| 1 |
16842 |
LIFT SHAFT ASSEMBLY Not Available Price: |
| 2 |
16682 |
SLEEVE ASSEMBLY Not Available Price: |
| 4 |
16688A |
STABILIZER Not Available Price: |
| 5 |
16692A |
DECK LIFT HANGER Not Available Price: |
| 6 |
16698 |
DECK LIFT BRACKET Not Available Price: |
| 7 |
710-0134 |
Carr. Bolt 1/4-20 x .62" Lg. Price: $3.71 |
| 8 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 9 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 10 |
712-0711 |
Hex L-Nut 3/8-24 Thd. Price: $3.90 |
| 11 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 12 |
714-0104 |
Intern. Cot-Pin 5/16" Dia. Price: $3.90 |
| 13 |
714-0115 |
Cot-Pin 1/8" Dia. Price: $3.48 |
| 14 |
714-0507 |
Cot-Pin 3/32" Dia. Price: $3.93 |
| 15 |
720-0223 |
Grip Price: $12.89 |
| 16 |
726-0267 |
Clamp Price: Call Us |
| 17 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 19 |
736-0185 |
Fl-Wash. .406" I.D. x .75" O.D. Price: $3.43 |
| 20 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 21 |
738-0281 |
Shld. Bolt .625 Dia. x .170" Lg. Price: $9.16 |
| 22 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 23 |
741-0495 |
NYLINER BEARING Price: $4.02 |
| 24 |
747-0677 |
J-Bolt 3/8-16 x 5.25" Lg. Price: Call Us |
| 25 |
747-0678 |
CONNECTING ROD (RH) Not Available Price: |
| 26 |
747-0679 |
CONNECTING ROD (LH) Not Available Price: |
| 27 |
747-0689 |
LIFT LINK Not Available Price: |
| 28 |
750-0547 |
Spacer Price: $4.83 |
| 29 |
732-0153 |
SPRING-.75 Not Available Price: |
| 31 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 32 |
736-0217 |
L-Wash. 3/8" I.D. H.D. Price: $3.86 |
| 33 |
932-0564 |
EXTENSION SPRING Not Available This part replaces 732-0564. Price: |
| 34 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 35 |
710-0602 |
Hex Wash. Hd. Tap Scr. 5/16-18 x 1.0" Lg. Price: $4.05 |
| 36 |
736-0174 |
Spr. Wash. .625" I.D. Price: $5.94 |
| 37 |
16716 |
BRACKET-ACTIVATING Not Available Price: |
| 38 |
725-0803B |
Safety Switch Price: $29.83 |
