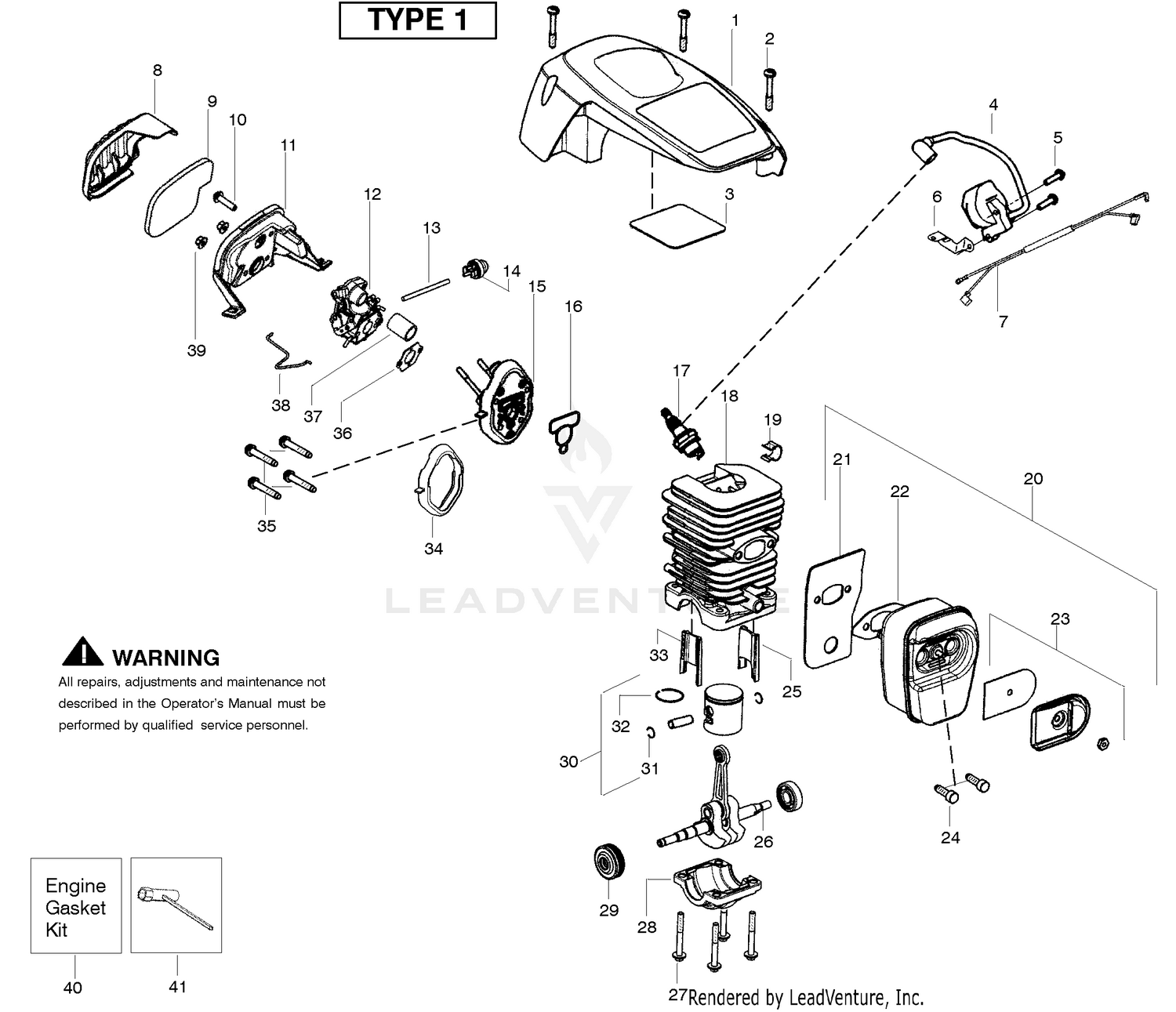

| Ref | Part Number | Description |
|---|
| 1 |
304-73 |
FITTING-STRAIGHT Price: $12.59 |
| 2 |
530016153 |
Screw Price: $1.99 |
| 2 |
98-7612 |
FILTER-FUEL Price: $10.48 |
| 3 |
144-4020 |
KIT-FUEL PUMP, SERVICE This part replaces 107-0122. Price: $192.50 |
| 3 |
530059006 |
Reflector-Tape Price: $1.99 |
| 4 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 4 |
530039198 |
Module - Ignition Price: $29.99 |
| 5 |
110-4100 |
HOSE-FUEL Price: $28.86 |
| 5 |
530016432 |
Screw Price: $1.99 |
| 6 |
530047442 |
Strap-Ground Price: $1.99 |
| 6 |
62-7650 |
GASKET Price: $4.28 |
| 7 |
530057943 |
Assy-Wire Harness Price: $5.99 |
| 7 |
63-7640 |
SENDER-FUEL Price: $94.22 |
| 8 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 8 |
530058687 |
Cover-Air Filter Price: $4.99 |
| 9 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 9 |
530057925 |
Filter-Air Price: $0.99 |
| 10 |
110-4101 |
HOSE-FUEL This part replaces 27-5370. Price: $16.81 |
| 10 |
530016425 |
Screw Price: $1.99 |
| 11 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 11 |
530057892 |
Housing-Air Filter Price: $4.99 |
| 12 |
110-4102 |
HOSE-FUEL This part replaces 75-4700. Price: $39.17 |
| 12 |
545070601 |
Carb-Zama W-26B This part replaces 530035590. Price: $27.99 |
| 13 |
354-22 |
FITTING-BARBED Price: $4.64 |
| 13 |
530069247 |
Kit-Fuel Line (Small) Price: $3.69 |
| 14 |
354-21 |
FITTING-BARBED Price: $6.88 |
| 14 |
530047721 |
Bulb-Purge "snap-in" Price: $3.99 |
| 15 |
354-20 |
FITTING-TEE Price: $12.61 |
| 16 |
110-4103 |
HOSE-FUEL This part replaces 98-9338. Price: $18.01 |
| 16 |
530071894 |
Gasket-cyl. o-ring (kit) Price: $6.99 |
| 17 |
110-4104 |
HOSE-FUEL This part replaces 93-2042. Price: $8.95 |
| 17 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.69 |
| 18 |
66-8121 |
STANDPIPE Price: $23.18 |
| 19 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 19 |
530016136 |
Clip-High Tension Lead Price: $1.99 |
| 20 |
46-6560 |
BUSHING Price: $2.94 |
| 21 |
530057942 |
Backplate-Muffler Price: $5.99 |
| 21 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 22 |
105-7933 |
TANK-FUEL Price: $275.80 |
| 22 |
530071894 |
Gasket-Muffler (kit) Price: $6.99 |
| 23 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 23 |
530071886 |
Kit-Spark Arrestor Price: $9.99 |
| 24 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 24 |
63-8410 |
WASHER Price: $1.76 |
| 25 |
33105-025 |
SCREW-HHF Price: $1.56 |
| 25 |
545015301 |
Insert-Left (black) Cyl. This part replaces 530057885. Price: $2.99 |
| 26 |
545112901 |
Assy-Crankshaft/Rod This part replaces 530012537. Price: $46.99 |
| 26 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 27 |
2412-146 |
CLAMP-HOSE Price: $1.46 |
| 27 |
530016417 |
Bolt Price: $1.99 |
| 28 |
321-6 |
SCREW-HH Price: $0.25 |
| 28 |
530057941 |
Cap-Crankcase Price: $5.99 |
| 29 |
530056363 |
Assy-Bearing/Seal Price: $11.99 |
| 30 |
104-9333 |
BRACKET-PUMP, FUEL Price: $8.04 |
| 31 |
321-4 |
SCREW-HH Price: $0.99 |
| 31 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 32 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 32 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 33 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 33 |
545015401 |
Insert-Right (gray) Cyl. This part replaces 530057886. Price: $2.99 |
| 34 |
530071894 |
Seal-Adaptor (kit) Price: $6.99 |
| 35 |
110-4105 |
HOSE-FUEL This part replaces 27-5360. Price: $11.71 |
| 35 |
530016426 |
Screw Price: $1.99 |
| 36 |
530071894 |
Gasket-Carb. (kit) Price: $6.99 |
| 37 |
530057926 |
Tube-Intake Price: $1.99 |
| 38 |
530057909 |
Wire-Throttle Price: $1.99 |
| 39 |
530016101 |
Nut-Carb. Price: $1.99 |
| 41 |
530031163 |
Wrench-Bar Price: $4.99 |
