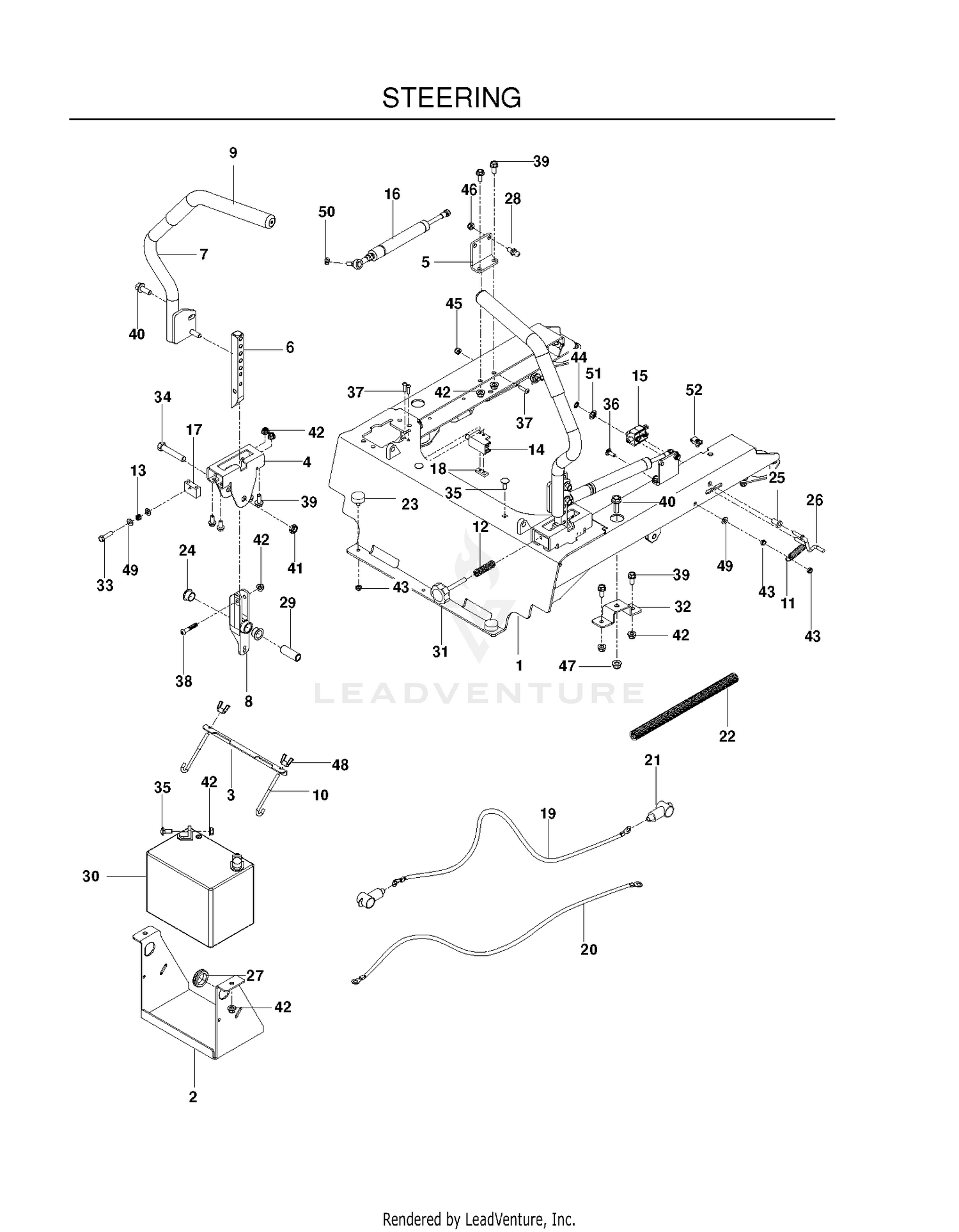

| Ref | Part Number | Description |
|---|
| 1 |
322-14 |
SCREW-HH Price: $1.01 |
| 1 |
577327702 |
FRAME SEAT MOUNT ORANGE Price: $349.99 |
| 2 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 2 |
510029902 |
BRACKET, BATTERY, BLK Price: $54.99 |
| 3 |
256-219 |
BUSHING Price: $7.59 |
| 3 |
510030001 |
BRACKET, BATTERY MOUNT Price: $44.99 |
| 4 |
586737202 |
BRACKET.CONTROL.NARROWSLOT.BLK This part replaces 577251701. Price: $22.99 |
| 4 |
85-8960 |
SPACER Price: $11.44 |
| 5 |
577265801 |
BRACKET.DAMPNER Price: $17.99 |
| 5 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 6 |
574269402 |
Levers This part replaces 574269401. Price: $59.99 |
| 6 |
92-2343-01 |
PEDAL ASM This part replaces 92-2343. Price: $59.71 |
| 7 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
577042403 |
LEVER.WITH GRIP.RT Price: $64.99 |
| 8 |
3272-16 |
PIN-COTTER Price: $0.31 |
| 8 |
576140302 |
LEVER.CONTROL.SHORT Price: $49.99 |
| 9 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 9 |
539130894 |
GRIP - DRIVE LEVER 12" Price: $6.99 |
| 10 |
510064002 |
Hooks This part replaces 510064001. Price: $2.99 |
| 10 |
95-0584 |
ROD-CONTROL Price: $84.20 |
| 11 |
540020035 |
SPRING, EXTENSION This part replaces 539020035. Price: $11.99 |
| 11 |
92-2344 |
TRUNNION Price: $81.16 |
| 12 |
3218-5 |
NUT-JAM Price: $0.27 |
| 12 |
576850301 |
SPRING COMPRESSION 2.0 Price: $3.99 |
| 13 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
539102845 |
SPRING Price: $2.99 |
| 14 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 14 |
539101080 |
SWITCH, INTERLOCK Price: $14.99 |
| 15 |
539113792 |
SWITCH, BRAKE 3P Price: $14.99 |
| 16 |
597084601 |
Dampers This part replaces 516020301. Price: $139.99 |
| 17 |
577251801 |
BLOCK.TRACKING Price: $9.99 |
| 18 |
539131519 |
BLOCK, LOWER Price: $12.99 |
| 19 |
522718701 |
CABLE, POSITIVE, 55" Price: $22.99 |
| 20 |
522710701 |
CABLE, NEG, 55" Price: $29.99 |
| 21 |
539102759 |
INSULATOR Price: $3.99 |
| 22 |
574235301 |
LOOM, SPLIT, CONVOLUTED Price: $2.99 |
| 23 |
575811501 |
BUMPER, 1/4-20 STUD, 1/4 Price: $5.99 |
| 24 |
539131518 |
BEARING, FLANGE Price: $9.99 |
| 25 |
511594901 |
BUSHING, 1/4 FLANGE Price: $2.99 |
| 26 |
511595002 |
Links This part replaces 511595001. Price: $2.99 |
| 27 |
539105974 |
RUBBER GROMMET Price: $2.99 |
| 28 |
594056301 |
Studs This part replaces 539110607. Price: $2.99 |
| 29 |
584927201 |
SPACER.PIVOT.CONTROL This part replaces 577252401. Price: $4.99 |
| 30 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 31 |
596400701 |
Knobs This part replaces 539131799. Price: $8.99 |
| 32 |
522849702 |
MOUNT, MID-SECTION, BLK Price: $19.99 |
| 33 |
539990627 |
HCS 5/16C X 1 1/4 This part replaces 539100469. Price: $3.99 |
| 34 |
539101332 |
HCS 1/2C X 2 3/4 Price: $4.99 |
| 35 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 36 |
596238401 |
BOLT CUP HEAD SQUARE NECK BOLT This part replaces 539990074. Price: $2.99 |
| 37 |
574822701 |
SCR #10-24 X .75 SKT HD BLK Price: $2.99 |
| 38 |
576850402 |
SCREW 5/16-18 X 1 3/4 BTN-HD Price: $3.99 |
| 39 |
525464701 |
HHFS 5/16-18 X 3/4 Price: $2.99 |
| 40 |
525612802 |
Screws This part replaces 525612801. Price: $2.99 |
| 41 |
539108010 |
NUT 1/2-13 HEX JM NYL Price: $2.99 |
| 42 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 43 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 44 |
596436201 |
Nuts This part replaces 539102234. Price: $1.99 |
| 45 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 46 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 47 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 48 |
539990997 |
WING NUT 1/4 Price: $2.99 |
| 49 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 50 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 51 |
539913847 |
NUT 3/8 PALNUT RTNG BLK PHOS Price: $3.99 |
