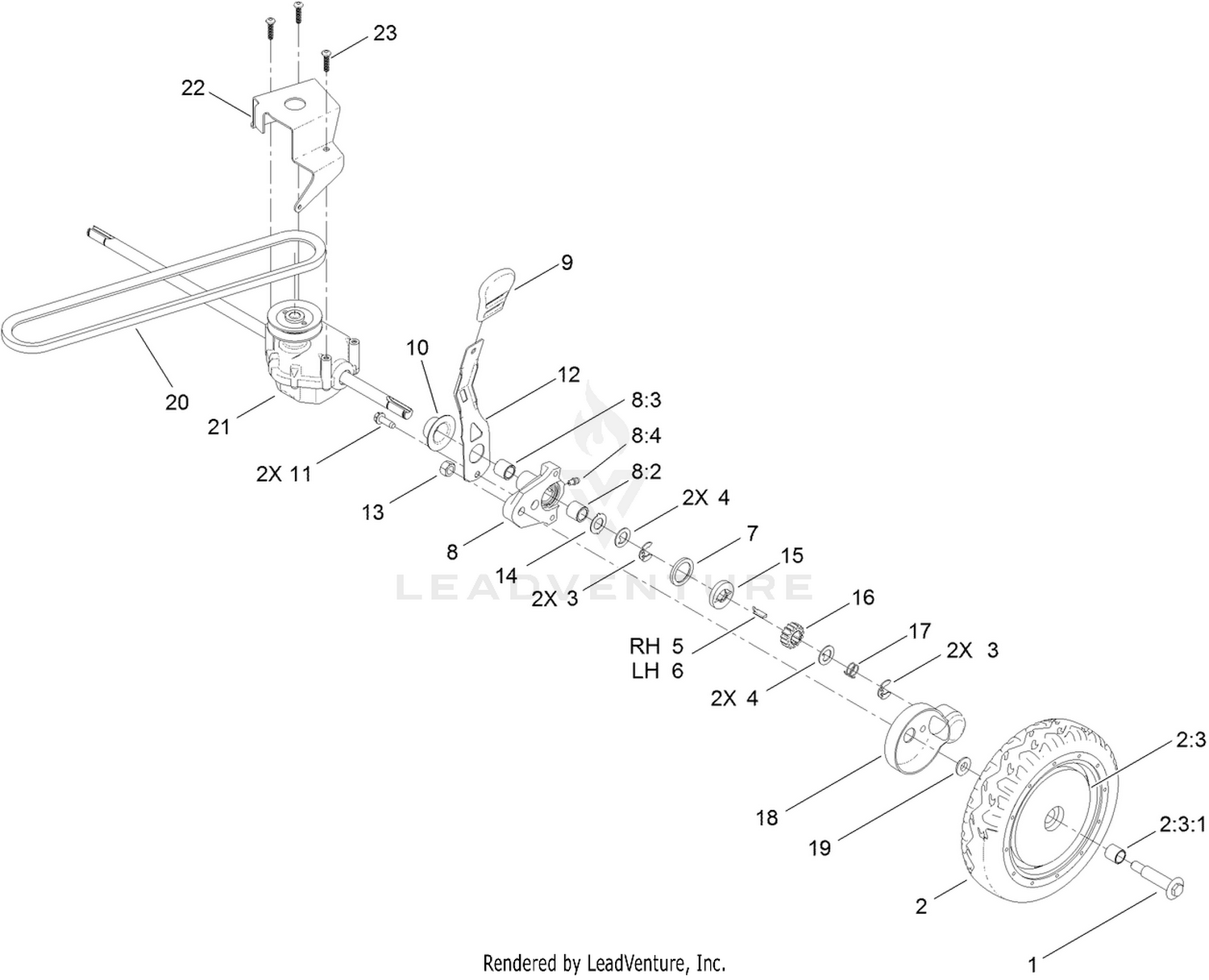

| Ref | Part Number | Description |
|---|
| 1 |
92-1057 |
BOLT-SHOULDER Price: $3.05 |
| 2 |
107-3709 |
WHEEL GEAR ASM Price: $38.30 |
| 3 |
65-2720 |
RING-RETAINING,CLIP Price: $0.99 |
| 4 |
65-4740 |
WASHER-THRUST, KEYED Price: $2.17 |
| 6 |
139-6644 |
KEY-ROCKING, L.H. This part replaces 66-6050. Price: $5.46 |
| 7 |
65-4710 |
RING-FRICTION Price: $2.17 |
| 8 |
100-8774 |
PIVOT ARM ASM Price: $24.99 |
| 9 |
110-0549 |
KNOB-HOC Price: $1.08 |
| 10 |
138-3235 |
CAP-END This part replaces 42-3520. Price: $2.29 |
| 11 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 12 |
107-7491 |
ARM-SPRING Price: $8.36 |
| 13 |
603773 |
LOCKNUT Price: $2.09 |
| 14 |
65-4730 |
WASHER-ARM, PIVOT Price: $2.17 |
| 15 |
65-4760 |
WASHER-CLUTCH Price: $1.08 |
| 16 |
65-4750 |
GEAR-PINION Price: $8.74 |
| 17 |
65-4720 |
SPRING-COMPRESSION Price: $1.08 |
| 18 |
74-1660 |
COVER-WHEEL Price: $5.45 |
| 19 |
74-1671 |
SPACER-COVER, WHEEL Price: $1.00 |
| 20 |
92-1043 |
V-BELT Price: $16.99 |
| 21 |
121-9184 |
TRANSMISSION ASM This part replaces 115-4560. Price: $84.61 |
| 22 |
114-7977-03 |
BRACKET-TRANSMISSION Price: $8.85 |
