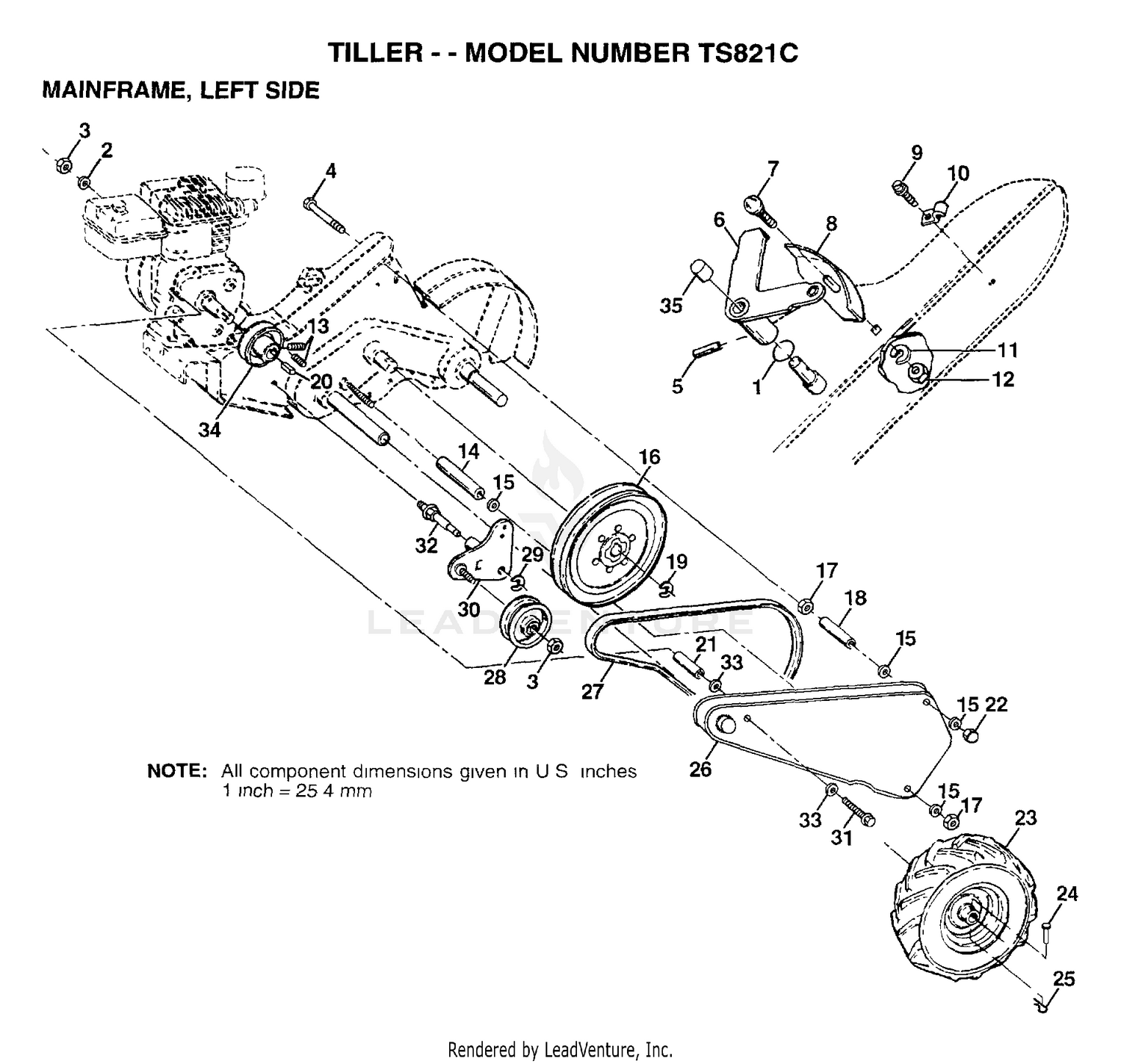

| Ref | Part Number | Description |
|---|
| 1 |
104-1715 |
HUB-CLUTCH Price: $177.49 |
| 1 |
106160X |
O-RING TI Price: Call Us |
| 2 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 2 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 3 |
43-0090 |
SCREW-HH Price: $8.05 |
| 3 |
73220600 |
NUT.HEX.3/8-16UNC Price: Call Us |
| 4 |
18-6430 |
KEY-SQUARE Price: $3.56 |
| 4 |
74930572 |
BOLT TI Price: Call Us |
| 5 |
1572H |
SUB= 2882J Price: Call Us |
| 5 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 6 |
107-9061 |
ELECTRIC CLUTCH / BRAKE ASM Price: $1,140.58 |
| 6 |
110111X |
LEVER ASM CRT Price: Call Us |
| 7 |
105-3698 |
SPACER Price: $65.71 |
| 7 |
72110404 |
BOLT Price: Call Us |
| 8 |
3212-5 |
SCREW-HH Price: $2.46 |
| 8 |
8700J |
PANEL TI Price: Call Us |
| 9 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 9 |
86777 |
SUB= 750097 Price: Call Us |
| 10 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 10 |
9484R |
CONDIUT CLIP T Price: Call Us |
| 11 |
10040400 |
LOCKWASHER Price: Call Us |
| 11 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 12 |
120-6568-03 |
STOP-CLUTCH This part replaces 108-6586-03. Price: $32.96 |
| 12 |
73220400 |
SUB= 50675 Price: Call Us |
| 13 |
23230506 |
SET SCREW Price: Call Us |
| 13 |
32128-25 |
NUT-HF Price: $3.19 |
| 14 |
104-1713-03 |
MOUNT-ENGINE, RH REAR Price: $78.67 |
| 14 |
8382J |
SPACER TI Price: Call Us |
| 15 |
117-0836-03 |
MOUNT-ENGINE, RH FRONT This part replaces 104-1710-03. Price: $82.72 |
| 15 |
19111116 |
WASHER Price: Call Us |
| 16 |
145102 |
SHEAVE.TRANS. Price: Call Us |
| 16 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 17 |
56-2140 |
SCREW-HH Price: $4.17 |
| 17 |
73220500 |
NUT.HEX.5/16-18 Price: Call Us |
| 18 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 18 |
8381J |
SPACER TI Price: Call Us |
| 19 |
12000028 |
SUB= 2267J Price: Call Us |
| 19 |
33113-020 |
SCREW-HH This part replaces 48-7630. Price: $0.26 |
| 20 |
48-8020 |
WASHER-SPRING Price: $1.19 |
| 20 |
4914H |
KEY TI Price: Call Us |
| 21 |
139155 |
SPACER.SPLIT Price: Call Us |
| 21 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 22 |
104214X |
NUT TI Price: Call Us |
| 22 |
33113-050 |
SCREW-HH Price: $0.62 |
| 23 |
125-9249 |
SPACER-COUPLER, RUBBER This part replaces 27-6600. Price: $2.15 |
| 23 |
5015J |
TIRE TI Price: Call Us |
| 24 |
21-0400-01 |
SPRING-COMPRESSION Price: $20.88 |
| 24 |
4929H |
RIVET.PAN HD.1.75 Price: Call Us |
| 25 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 25 |
4921H |
SPRING.RETAINER Price: Call Us |
| 26 |
102818X505 |
GUARD BELT RED Price: Call Us |
| 26 |
110-9696 |
BOLT-HH This part replaces 94-7431. Price: $18.93 |
| 27 |
138399 |
BELT.DRIVE Price: Call Us |
| 27 |
33114-016 |
SCREW-HH Price: $0.27 |
| 28 |
104680X |
SUB= 4371J Price: Call Us |
| 28 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 29 |
108-6561-03 |
MOUNT-MUFFLER Price: $183.52 |
| 29 |
12000032 |
KLIP RING Price: Call Us |
| 30 |
105611X |
SUB= 918105611X Price: Call Us |
| 30 |
323-44 |
SCREW-HH Price: $3.69 |
| 31 |
74770844 |
BOLT1/2-20UNF2.75 Price: Call Us |
| 31 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 32 |
139401 |
SHAFT.IDLER Price: Call Us |
| 32 |
32128-21 |
NUT-HF Price: $0.39 |
| 33 |
19171616 |
WASHER Price: Call Us |
| 33 |
701197 |
E-RING Price: $2.99 |
| 34 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 34 |
4368J |
SHEAVE CRT Price: Call Us |
| 35 |
110-9682-03 |
BRACKET-THROTTLE This part replaces 106-8097-03. Price: $28.22 |
| 5014J |
WHEEL |
TI Price: Call Us 5014J |
