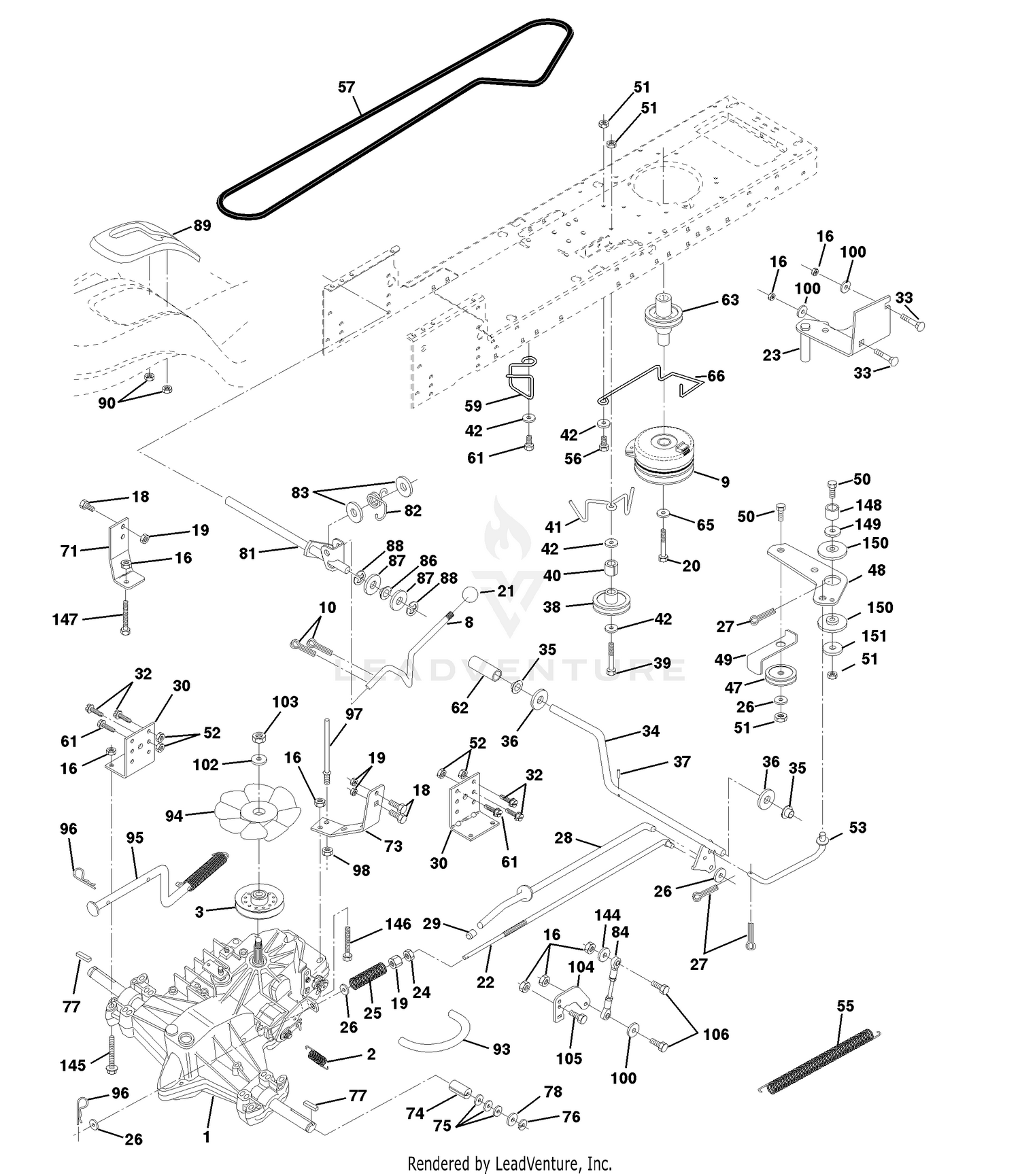

| Ref | Part Number | Description |
|---|
| 1 |
532150071 |
TRANSAXLE ASSEMBLY Price: $974.57 |
| 1 |
86-5570 |
HOSE ASM Price: $151.86 |
| 2 |
532142431 |
SPRING BRAKE Price: $4.99 |
| 2 |
86-3220 |
HOSE ASM Price: $68.45 |
| 3 |
237-22 |
O-RING Price: $2.43 |
| 3 |
532143995 |
PULLEY, TRANSAXLE Price: $27.99 |
| 4 |
340-138 |
FITTING-HYD, 45 DEG Price: $31.15 |
| 5 |
237-79 |
O-RING Price: $5.46 |
| 6 |
21-9260 |
COVER-DUST Price: $8.19 |
| 7 |
76-8140-03 |
BRACKET-GEAR, STEERING This part replaces 76-8140. Price: $70.53 |
| 8 |
532154792 |
ROD SHIFT FENDER Price: $12.99 |
| 8 |
76-8160-03 |
SUPPORT-GEAR, STEERING This part replaces 76-8160. Price: $25.24 |
| 9 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 9 |
532145028 |
CLUTCH.ELECT.EVX. Price: $299.99 |
| 10 |
323-6 |
SCREW-HH Price: $0.66 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 11 |
74-3670 |
DISCONTINUED Price: Call Us |
| 12 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 13 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 14 |
82-4950 |
PLUNGER-SPRING Price: $145.10 |
| 15 |
74-5770 |
DISCONTINUED Price: Call Us |
| 16 |
32121-10 |
PIN-ROLL Price: $6.99 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 17 |
74-5790 |
SHAFT-PIVOT Price: $75.26 |
| 18 |
32121-123 |
PIN-ROLL Price: $0.81 |
| 18 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 19 |
3220-3 |
NUT-HJ Price: $0.28 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 20 |
323-8 |
SCREW-HH Price: $1.20 |
| 20 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532150280. Price: $2.99 |
| 21 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 21 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 22 |
532145627 |
ROD BRAKE HYDRO Price: $169.99 |
| 22 |
76-9100 |
SPACER Price: $4.07 |
| 23 |
532154978 |
BRACKET, ASM CLUTCH MTG Price: $5.99 |
| 23 |
93-9415 |
PANEL-CONTROL, TOWER Price: $68.85 |
| 24 |
233-17 |
KNOB Price: $10.58 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 25 |
68-8080 |
WHEEL-STEERING Price: $273.84 |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 26 |
72-0130 |
DISCONTINUED Price: Call Us |
| 27 |
107-2561 |
NUT-HEX This part replaces 47-6990. Price: $14.65 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 28 |
532145204 |
ROD BRAKE PARK LT Price: $3.12 |
| 29 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 29 |
76-9450 |
DISCONTINUED Price: Call Us |
| 30 |
532130807 |
BRACKET TRANSAXLE Price: $3.99 |
| 30 |
84-0680 |
LINK-SHIFT V Price: $32.00 |
| 31 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 32 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 33 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 33 |
69-1560 |
DISCONTINUED Price: Call Us |
| 34 |
2410-64 |
PLUG-BUTTON Price: $0.74 |
| 34 |
532155071 |
SHAFT, FOOT PEDAL Price: $19.99 |
| 35 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 37 |
63-7900-03 |
RACK This part replaces 63-7900. Price: $144.55 |
| 38 |
3272--10 |
Pin-Cotter Price: Call Us |
| 38 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 39 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 39 |
874760644 |
BOLT Price: $3.99 |
| 40 |
532124965 |
SPACER T Price: $3.99 |
| 40 |
95-1821 |
SPRING-COMPRESSION Price: $6.71 |
| 41 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 41 |
532165838 |
KEEPER.BELT.IDLER.FLAT Price: $4.99 |
| 42 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 42 |
76-9050 |
ROD-BRAKE, PARK Price: $33.40 |
| 43 |
86-5730 |
RH FRONT TUBE ASM Price: $85.91 |
| 44 |
86-5740 |
LH FRONT TUBE ASM Price: $126.12 |
| 45 |
86-5720 |
DISCONTINUED Price: Call Us |
| 46 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 47 |
3256-71 |
WASHER-FLAT Price: $0.81 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
32144-57 |
SCREW Price: $1.04 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $5.99 |
| 49 |
2412-74 |
R-CLAMP Price: $2.37 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
340-159 |
FITTING-HYD, 90 DEG Price: $55.33 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874760624. Price: $6.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 51 |
86-3210 |
DISCONTINUED Price: Call Us |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 52 |
86-5470 |
DISCONTINUED Price: Call Us |
| 53 |
340-70 |
NUT-LOCK Price: $2.10 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 54 |
340-71 |
FITTING-STRAIGHT, BULKHEAD Price: $20.74 |
| 55 |
20-9500 |
WASHER Price: $3.53 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
31-0390 |
DISC-FRICTION Price: $11.25 |
| 56 |
874760620 |
BOLT Price: $4.99 |
| 57 |
532140294 |
DRIVE BELT, LTH & YTH TRACTORS Price: $34.99 |
| 57 |
76-8340 |
SHAFT-PIVOT, STEERING Price: $89.60 |
| 58 |
76-8150-03 |
SUPPORT-SHAFT, STEERING This part replaces 76-8150. Price: $25.87 |
| 59 |
532169691 |
KEEPER, BELT CENTER This part replaces 532140312. Price: $17.99 |
| 59 |
92-9729 |
DISCONTINUED Price: Call Us |
| 60 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 61 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 61 |
59-6430 |
DISCONTINUED Price: Call Us |
| 62 |
2412-104 |
CLAMP-R Price: $2.37 |
| 62 |
532123533 |
COVER, PEDAL (1 2) Price: $6.99 |
| 63 |
532145868 |
PULLEY, CLUTCH ELECT EVX Price: $69.99 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 66 |
531151001 |
SERVICE KIT BELT KEEPER This part replaces 532154778. Price: $6.99 |
| 71 |
532140158 |
STRAP LH TORQUE Price: $5.99 |
| 73 |
532156347 |
STRAP TORQUE RH HYDRO Price: $4.99 |
| 74 |
532121199 |
SPACER SPLIT Price: $3.12 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 81 |
532156046 |
SHAFT ASSY Price: $15.23 |
| 82 |
532123782 |
SPRING,TORSION Price: $3.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
532161901 |
TIE ROD Price: $49.99 |
| 86 |
532157480 |
BUSHING Price: $3.99 |
| 87 |
819212016 |
WASHER D Price: $4.99 |
| 88 |
812000008 |
KLIP RING Price: $2.99 |
| 89 |
532164890 |
SHIFT CONSOLE BLACK This part replaces 532166510. Price: $19.99 |
| 90 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 93 |
532142564 |
LINE FUEL HYD 4" Price: $3.99 |
| 94 |
532140462 |
FAN 7" HYDRO Price: $9.99 |
| 95 |
532167696 |
CONTROL.ASM.BYPASS.HYDRO.99 This part replaces 532144643. Price: $9.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 97 |
532140469 |
KEEPER BELT RH Price: $2.99 |
| 98 |
873510600 |
NUT Price: $4.99 |
| 100 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 102 |
532141322 |
WASHER Price: $3.99 |
| 103 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 104 |
532140156 |
CONTROL ARM Price: $4.99 |
| 105 |
871070516 |
SCREW Price: $3.99 |
| 106 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 144 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: $5.99 |
| 145 |
596136501 |
Bolts This part replaces 874490540. Price: $3.99 |
| 146 |
874490536 |
Bolt Hex Flghd 5/16-18 x 2-1/4 Price: $4.99 |
| 147 |
874490524 |
Bolt Hex Flghd 5/16-18 x 1-1/2 Price: $2.42 |
| 148 |
532159103 |
GUIDE Price: $3.99 |
| 149 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 150 |
532150935 |
BUSHING NYLON COLLERED Price: $3.99 |
