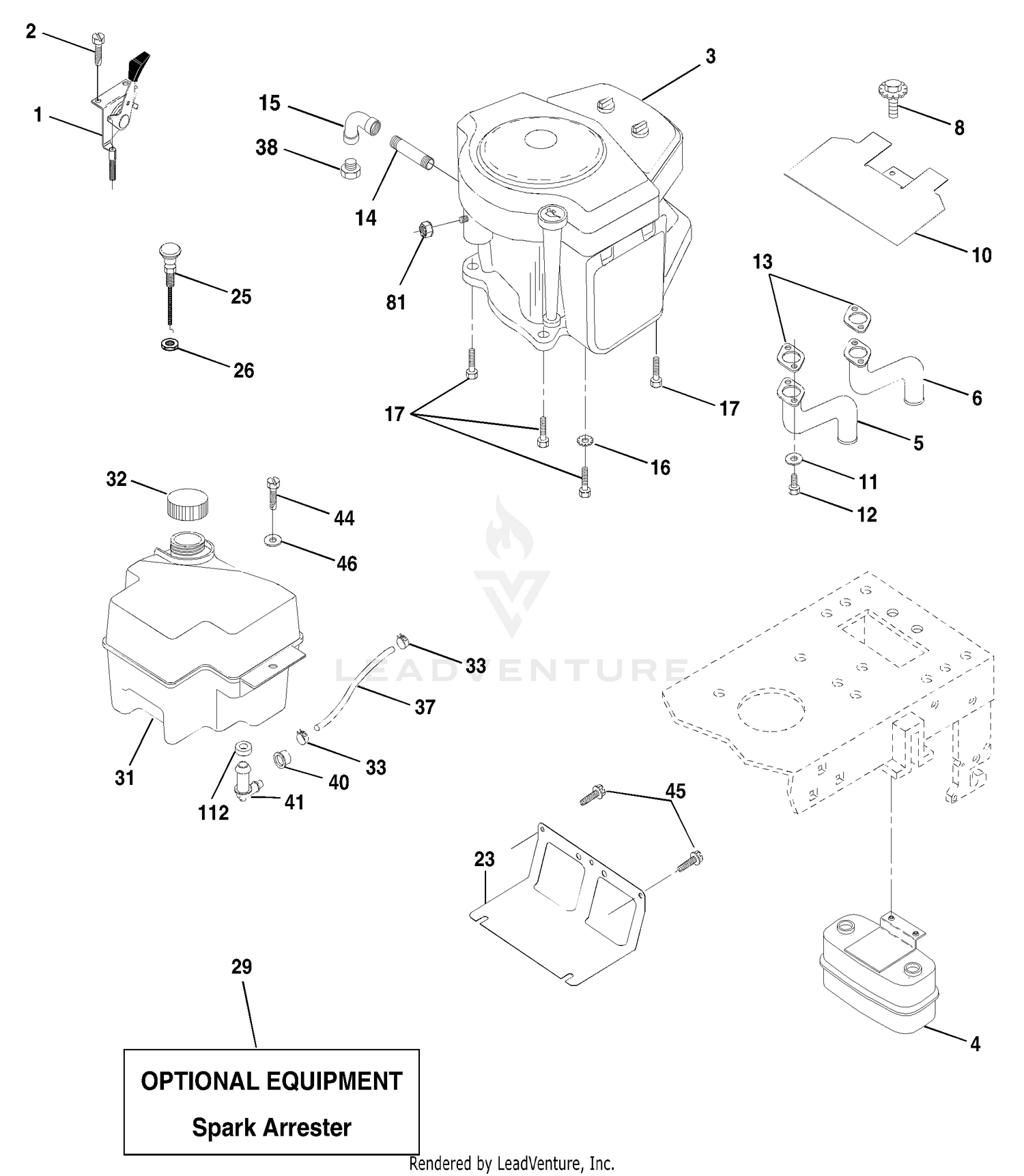

| Ref | Part Number | Description |
|---|
| 1 |
170771 |
Control Th/ch Flag Price: Call Us |
| 1 |
99-6193 |
HOSE ASM Price: $137.42 |
| 2 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 5/8 T Price: Call Us |
| 3 |
105-4342 |
HOSE ASM Price: $166.43 |
| 4 |
105-4332 |
HOSE-HYD Price: $168.22 |
| 4 |
149723 |
Muffler Exhaust Price: Call Us |
| 5 |
105-5490 |
TUBE-HYD Price: $104.81 |
| 5 |
159955 |
Exhaust Tube LH Price: Call Us |
| 6 |
105-5489 |
TUBE-HYD Price: $80.00 |
| 6 |
160589 |
Exhaust Tube RH Price: Call Us |
| 7 |
105-4333 |
HOSE-HYD Price: $184.44 |
| 8 |
138-4975 |
HOSE ASM-HYD HP This part replaces 105-4336. Price: $166.73 |
| 8 |
171877 |
Bolt 5/16-18 UNC x 3/4 Price: Call Us |
| 9 |
105-4343 |
HOSE ASM Price: $151.86 |
| 10 |
162797 |
Shield Browning Price: Call Us |
| 10 |
240-3 |
GROMMET-RUBBER Price: $17.44 |
| 11 |
10040500 |
Washer Lock 5/16 Price: Call Us |
| 11 |
69-9010 |
WASHER Price: $1.83 |
| 12 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 12 |
71070512 |
Screw Hex 5/16-18 x 3/4 Price: Call Us |
| 13 |
125-1984 |
SPACER This part replaces 69-9000. Price: $0.68 |
| 13 |
165291 |
Gasket Muffler Price: Call Us |
| 14 |
13280324 |
Nipple Pipe 3/8 NPT x 3 Price: Call Us |
| 15 |
13200300 |
Elbow STD 90 Degree 3/8-18 Price: Call Us |
| 16 |
11050600 |
Washer Lock Ext Tooth 3/8 Price: Call Us |
| 17 |
17060624 |
Screw 3/8-16 x 1-1/2 Price: Call Us |
| 18 |
94-5350 |
FITTING-TEE Price: $281.50 |
| 19 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 23 |
169837 |
Shield Brn/Dbr Guard Price: Call Us |
| 25 |
145996 |
Control Choke Price: Call Us |
| 26 |
73920600 |
Nut Keps 3/8-24 Unf Price: Call Us |
| 29 |
137180 |
Arrestor Spark Price: Call Us |
| 31 |
180645 |
Tank Fuel Front 2 00 Price: Call Us |
| 32 |
140527 |
Cap Fuel Price: Call Us |
| 33 |
123487X |
Clamp Hose Black Price: Call Us |
| 37 |
137040 |
Line Fuel 20" Price: Call Us |
| 40 |
124028X |
Bushing Snap Nyl Blk Fuel Line Price: Call Us |
| 41 |
139277 |
Stem Tank Fuel Price: Call Us |
| 44 |
17670412 |
Screw Hex wsh Thdrol 1/4-20 x 3/4 Price: Call Us |
| 45 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 x 3/4 Price: Call Us |
| 46 |
19091416 |
Washer 9/32 X 7/8 X 16 Ga Price: Call Us |
| 81 |
73510400 |
Nut Keps Hex 1/4-20 Unc Price: Call Us |
