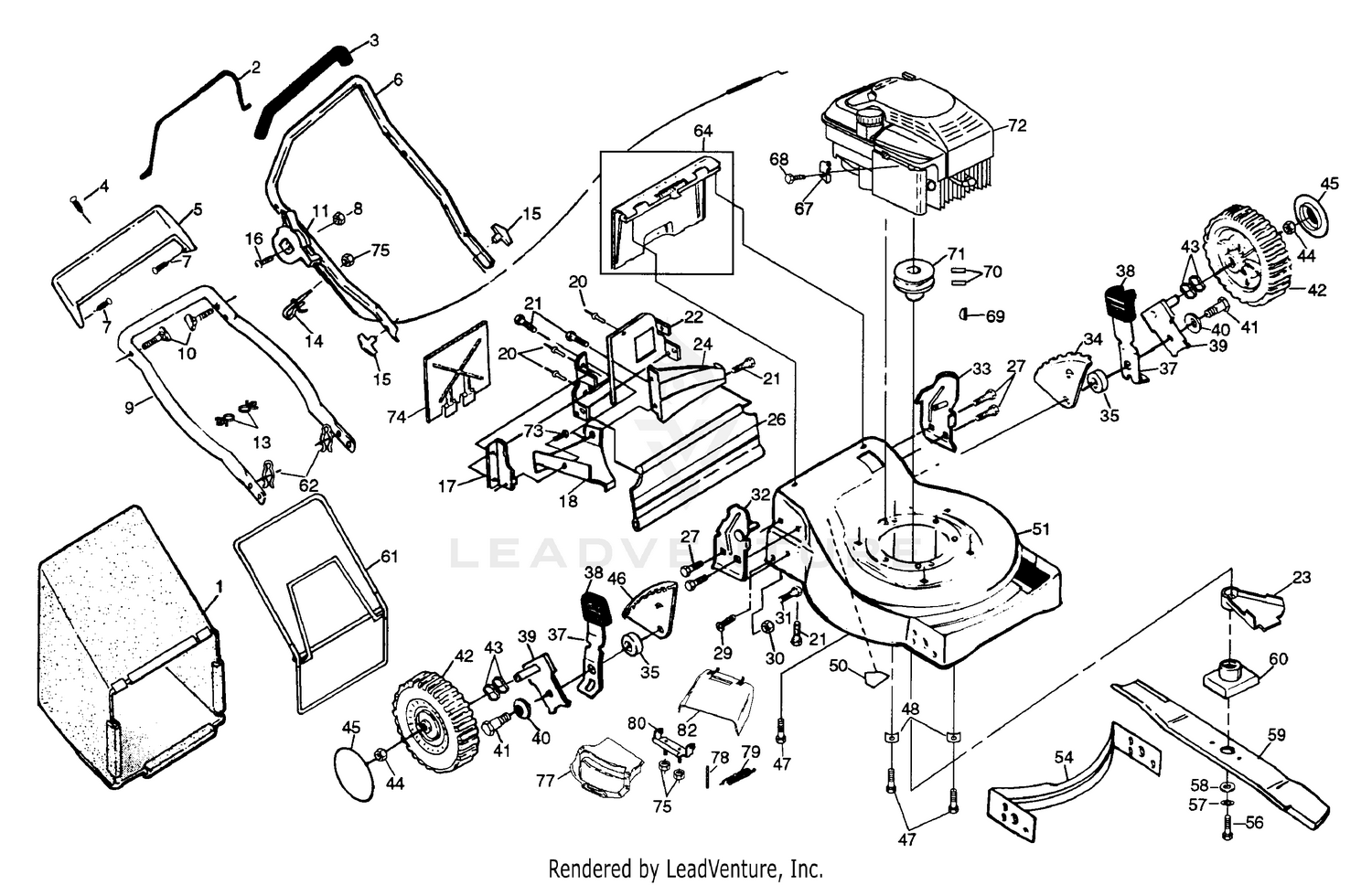

| Ref | Part Number | Description |
|---|
| 1 |
532134048 |
This part replaces 532800386. Price: $36.95 |
| 1 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 2 |
532131094 |
CONTROL BAR Price: $12.99 |
| 2 |
93-8743 |
FOOTPAD-TURN Price: $27.95 |
| 3 |
3218-5 |
NUT-JAM Price: $0.27 |
| 3 |
585161003 |
GRIP.HANDLE.FOAM.438MM This part replaces 532155890. Price: $4.99 |
| 4 |
21-2850-01 |
MOUNT-PEDAL, RH This part replaces 21-2850. Price: $69.64 |
| 5 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 5 |
532157070 |
TRIM PLATE Price: $4.53 |
| 6 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 6 |
532125294X |
Upper Handle Price: Call Us |
| 7 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 7 |
532701477 |
FASTENER Price: $2.38 |
| 8 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 8 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 9 |
532157081 |
HANDLE.LOWER.BLACK This part replaces 532157082. Price: $54.99 |
| 9 |
95-1821 |
SPRING-COMPRESSION Price: $6.71 |
| 10 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532131959. Price: $9.99 |
| 10 |
82-8670 |
ROD-LATCH, BRAKE Price: $61.33 |
| 11 |
233-17 |
KNOB Price: $10.58 |
| 11 |
532700417 |
THROTTLE CONTROL Price: $17.99 |
| 12 |
93-7831 |
DECAL-BRAKE, PARKING Price: $14.40 |
| 13 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 13 |
532007192 |
WIRE TIE This part replaces 532151517. Price: $7.99 |
| 14 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 14 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532132001. Price: $7.99 |
| 15 |
108-1380 |
LH BRAKE CABLE ASM This part replaces 21-3380. Price: $162.33 |
| 15 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532136376. Price: $9.99 |
| 16 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 16 |
532059935 |
SCREW 1/4-20X1.75 Price: $2.38 |
| 17 |
23-2240-03 |
PUMP CONTROL TUBE ASM This part replaces 23-2240. Price: $209.72 |
| 17 |
532138860 |
SIDE BAFFLE Price: $3.16 |
| 18 |
532133190 |
DISCHARGE BAFFLE This part replaces 532125376. Price: $4.99 |
| 18 |
94-3304-01 |
SUPPORT-PEDAL This part replaces 94-3304. Price: $121.34 |
| 19 |
94-3308 |
PAD-PEDAL, TRACTION Price: $8.96 |
| 20 |
532128415 |
RIVET BLIND Price: $3.99 |
| 20 |
88-1640 |
PIN-PEDAL, TRACTION Price: $17.64 |
| 21 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 21 |
532054583 |
SCREW Price: $4.99 |
| 22 |
532156380 |
BACK PLATE This part replaces 532139734. Price: $8.99 |
| 22 |
88-1650 |
SHAFT-PEDAL, TRACTION Price: $55.18 |
| 23 |
532048283 |
KIT.SHIELD.DEBRIS.21.RWGD.EZ This part replaces 532134612. Price: $12.99 |
| 23 |
88-1670 |
PIVOT BRACKET ASM Price: $109.29 |
| 24 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 24 |
532133040 |
REAR BAFFLE This part replaces 532125348. Price: $4.99 |
| 25 |
28-5220 |
FRICTION WHEEL ASM Price: $108.15 |
| 26 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 26 |
532413160 |
SKIRT.REAR.22RD/SD.FO/VE This part replaces 532140540. Price: $11.99 |
| 27 |
3220-3 |
NUT-HJ Price: $0.28 |
| 27 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 28 |
3217-7 |
NUT-HEX Price: $0.28 |
| 29 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 29 |
532088652 |
HINGE SCREW Price: $3.99 |
| 30 |
596322601 |
Nuts This part replaces 532751592. Price: $2.99 |
| 30 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 31 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 32 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 32 |
532153029 |
HANDLE BRACKET ASSEMBLY-RIGHT Price: $2.42 |
| 33 |
3274-47 |
SCREW-HSFH Price: $0.53 |
| 33 |
532153030 |
HANDLE BRACKET ASSEMBLY - LEFT Price: $2.99 |
| 34 |
27-7590-01 |
BRAKE MT WA This part replaces 27-7590. Price: $239.14 |
| 34 |
532142842 |
WHEEL ADJ BRKT RF-LR Price: $3.52 |
| 35 |
27-9270-01 |
PIVOT SHAFT MOUNT ASM This part replaces 27-9270. Price: $81.41 |
| 35 |
532401629 |
SPACER.HEIGHT.ADJUSTER This part replaces 532146630. Price: $3.99 |
| 36 |
27-7640-01 |
SHAFT-BRAKE LATCH ASM This part replaces 27-7640. Price: $62.42 |
| 37 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 37 |
532125066 |
SELECTOR SPRING Price: $4.99 |
| 38 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 39 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 39 |
532145937 |
AXLE ARM This part replaces 532151254. Price: $3.99 |
| 40 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 40 |
532062335 |
WASHER.BELLEVILLE (3 2 LB) Price: $7.99 |
| 41 |
27-7490 |
LH BRAKE PEDAL ASM Price: $347.33 |
| 41 |
532174719 |
BOLT SHOULDER 3/8 -16X1 This part replaces 532142748. Price: $7.99 |
| 42 |
27-7510 |
RH BRAKE PEDAL ASM Price: $321.91 |
| 42 |
532750550 |
WHEEL.8X2.PR.LP.RAD.GREY Price: $27.99 |
| 43 |
256-10 |
BUSHING-FLANGE Price: $3.68 |
| 43 |
532428450 |
KIT.O-RING/WASHER This part replaces 532057143. Price: $3.99 |
| 44 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 44 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 45 |
27-8550-01 |
PARKING BRAKE PEDAL ASM This part replaces 27-8550. Price: $324.09 |
| 45 |
532157008 |
HUBCAP.8".GREY Price: $3.99 |
| 46 |
3220-5 |
NUT-JAM Price: $0.65 |
| 46 |
532142843 |
WHEEL ADJ BRKT RR-LF Price: $3.52 |
| 47 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 47 |
94-3307 |
PAD-PEDAL, TRACTION Price: $12.11 |
| 48 |
532125078 |
WASHER.ENGINE.BZP Price: $4.99 |
| 48 |
88-1680-01 |
BRACKET-FOOTREST This part replaces 88-1680. Price: $17.86 |
| 49 |
88-0470 |
TUBE-SPACER, PEDAL Price: $10.25 |
| 50 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 50 |
88-1710-01 |
FOOTREST ASM This part replaces 88-1710. Price: $62.29 |
| 51 |
88-1720 |
PAD-FOOTREST Price: $5.27 |
| 52 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 53 |
32128-25 |
NUT-HF Price: $3.19 |
| 54 |
325-14 |
SCREW-HH This part replaces 323-42. Price: $2.64 |
| 54 |
532170557 |
KIT.BAFFLE.FRT.22RD.FO.PU/FWGD This part replaces 532144964. Price: $27.99 |
| 55 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 56 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 57 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 58 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 59 |
532141114 |
BLADE 22" Price: $24.99 |
| 60 |
532851514 |
BLADE ADAPTOR Price: $7.99 |
| 61 |
532088614 |
CATCHER.FRAME.WALK Price: $44.99 |
| 62 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 64 |
532151023 |
KIT.DOOR.REAR.22.STEEL.BLACK Price: $22.99 |
| 68 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 69 |
532087677 |
HI PRO KEY PM WSL Price: $3.99 |
| 70 |
532059708 |
SCREW Price: $4.99 |
| 71 |
532084596 |
ENGINE.PULLEY.FWG Price: $27.99 |
| 73 |
532150050 |
SCREW.HXTAP.10-24 Price: $2.99 |
| 74 |
532166649 |
PLUG.MULCH.22RD This part replaces 532125368. Price: $27.99 |
| 75 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 77 |
532150654 |
COMBI-CUT DOOR Price: $13.99 |
| 78 |
532147286 |
ROD.HINGE.COMBI-C Price: $6.99 |
| 79 |
532152186 |
SPRING HINGE Price: $4.99 |
| 80 |
532147775 |
BRACKET.HINGE ASM.W/FIN Price: $3.99 |
| 82 |
532145285 |
CLIP-ON DISCHARGE DEFLECTOR This part replaces 532150653. Price: $8.99 |
| 532159299 |
56SF |
OPER MANUAL NLA Price: $10.02 532159299 |
