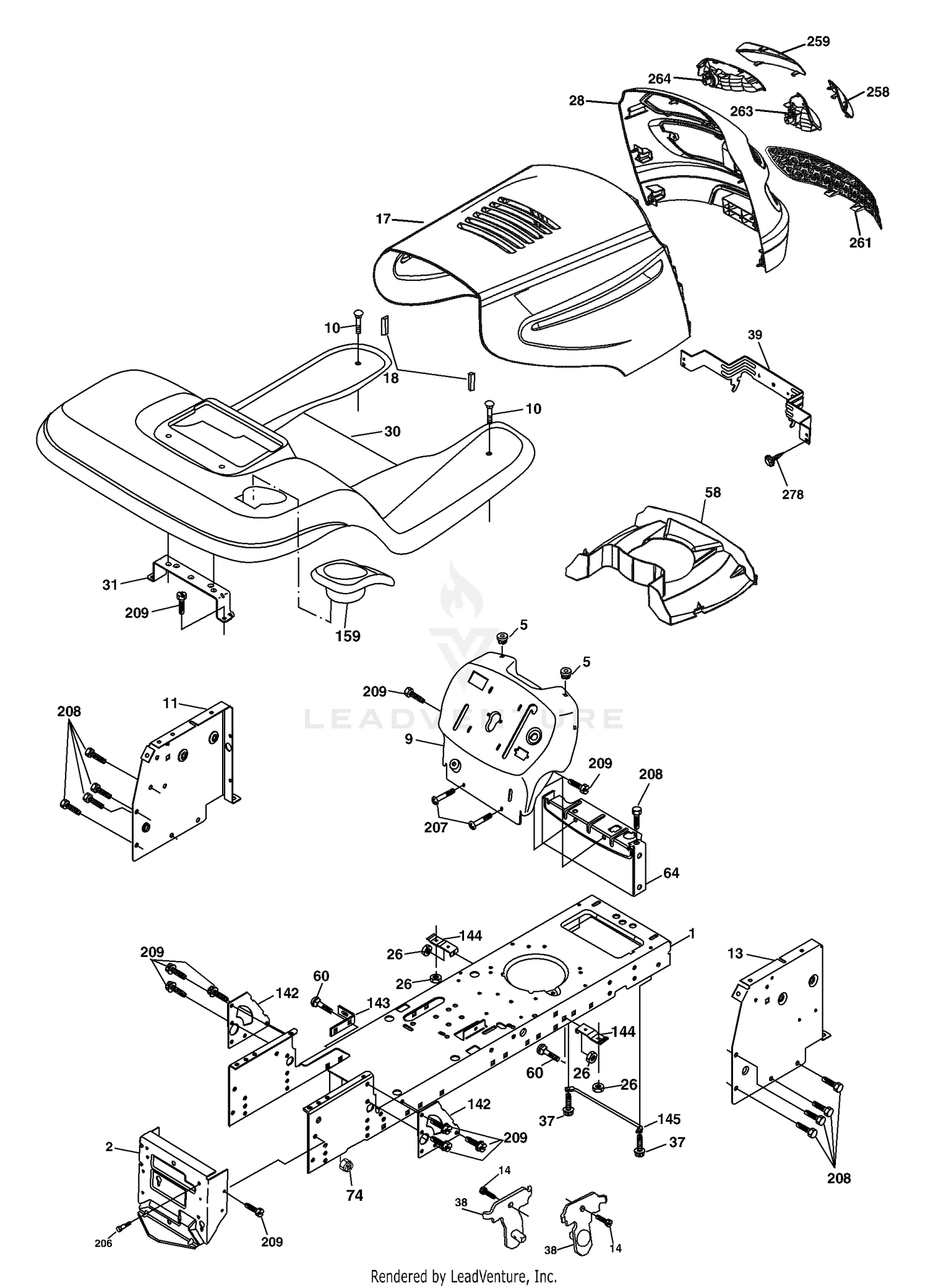

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 2 |
176554 |
Drawbar Price: Call Us |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 3 |
32146-20 |
NUT-HEX Price: $3.23 |
| 4 |
99-6940-03 |
AXLE SUPPORT ASM Price: $974.39 |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 6 |
237-165 |
GROMMET Price: $15.70 |
| 8 |
32121-32 |
PIN-ROLL Price: $1.34 |
| 9 |
140-6101 |
PIN ASM-AXLE PIVOT This part replaces 98-8173-03. Price: $42.42 |
| 9 |
193510X010 |
Dash P/L Price: Call Us |
| 10 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 10 |
72140608 |
Bolt Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash Lh Price: Call Us |
| 11 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 12 |
99-8431 |
WASHER-THRUST Price: $4.63 |
| 13 |
179174X010 |
Panel Dash Rh Price: Call Us |
| 13 |
99-8432 |
WASHER-THRUST Price: $4.21 |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 17 |
183393X428 |
Hood Price: Call Us |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 unc Price: Call Us |
| 30 |
192393X428 |
Fender Price: Call Us |
| 31 |
139976 |
Bracket Fender Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm Pivot Mower Rear Price: Call Us |
| 39 |
174714 |
Bracket Pivot Price: Call Us |
| 58 |
189350 |
Duct Air Price: Call Us |
| 60 |
72140606 |
Bolt 3/8-16 UNC x 3/4 Price: Call Us |
| 64 |
154798 |
Dash Lower STLT Price: Call Us |
| 74 |
73680600 |
Nut Crownlock 3/8-16 UNC Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 143 |
186689 |
Bracket Swaybar chassis Notch Price: Call Us |
| 144 |
175582 |
Bracket Footrest Step-Thru Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 159 |
155123X428 |
Cupholder Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 258 |
183835X599 |
Lens Grille Pro RH Price: Call Us |
| 259 |
183834X599 |
Lens Grille Pro LH Price: Call Us |
| 261 |
183829X428 |
Insert Grille Price: Call Us |
| 263 |
183833 |
Bezel Grille RH Price: Call Us |
| 264 |
183832 |
Bezel Grille LH Price: Call Us |
| 278 |
191611 |
Screw 10 x 3/4 Single Lead Hex Price: Call Us |
| 5479J |
Plug |
BTN BlK Price: Call Us 5479J |
