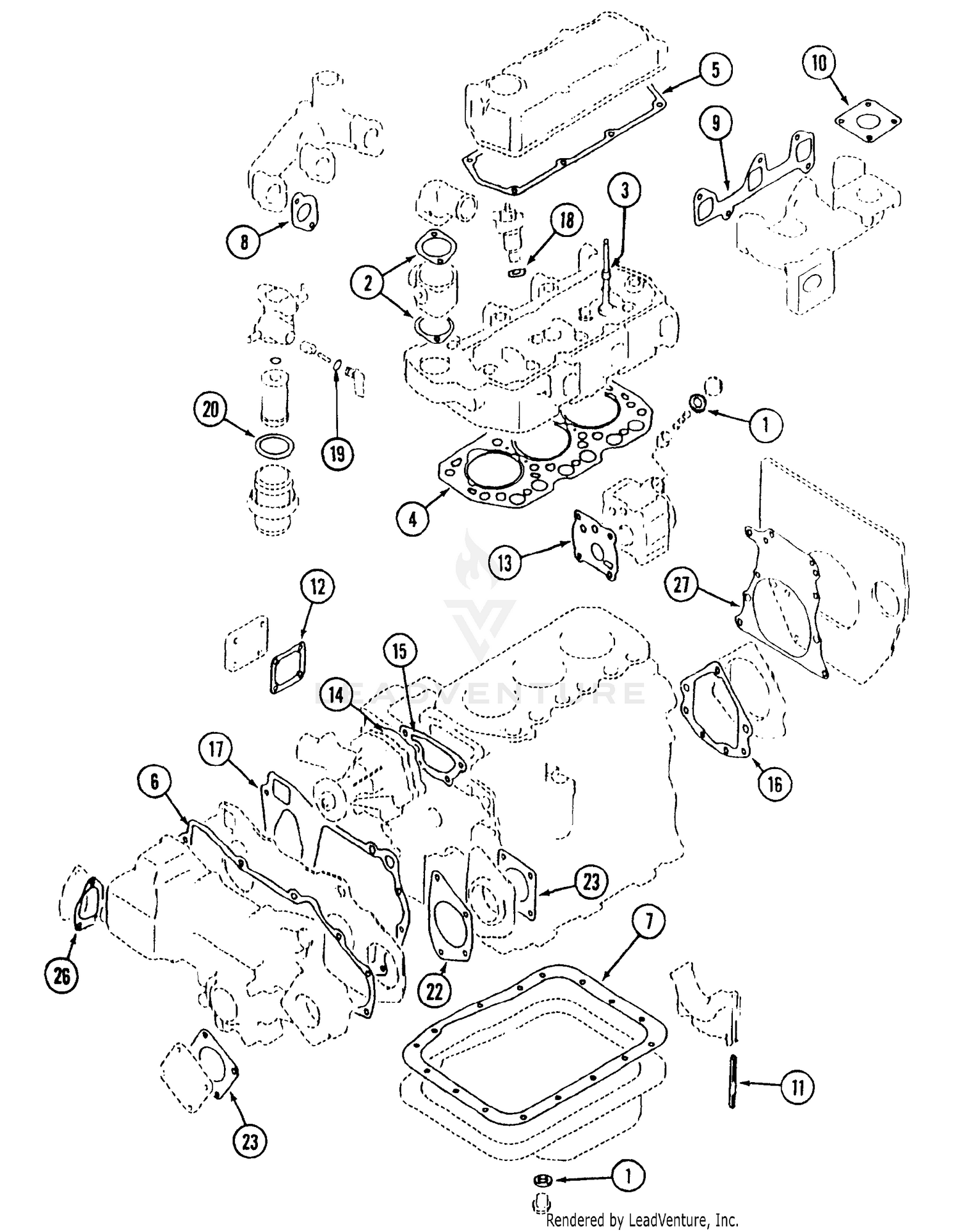

| Ref | Part Number | Description |
|---|
| 1 |
99-1897 |
NUT-CRANKSHAFT Price: $34.93 |
| 1 |
MA-MD000312 |
GASKET Not Available Price: |
| 2 |
99-1896 |
PULLEY-CRANKSHAFT Price: $368.31 |
| 3 |
99-1898 |
GEAR-CRANKSHAFT Price: $387.71 |
| 4 |
51-5460 |
KEY Price: $10.14 |
| 4 |
MA-30H01-00300 |
CYLINDER HEAD GASKET Not Available Price: |
| 6 |
51-6300 |
PIN-DOWEL Price: $5.90 |
| 6 |
MA-30H11-00202 |
GEAR CASE GASKET Not Available This part replaces MA-30H11-00201. Price: |
| 7 |
99-2100 |
GEAR-RING Price: $430.00 |
| 7 |
MA-30H13-00101 |
OIL PAN GASKET Not Available Price: |
| 9 |
70-2880 |
BOLT Price: $4.03 |
| 10 |
51-8610 |
WASHER-SPRING Price: $1.25 |
| 11 |
MA-MM406228 |
SEAL Not Available Price: |
| 12 |
MA-30A63-00101 |
GASKET-GOV COVER Not Available Price: |
| 13 |
MA-30H35-00101 |
GASKET-ENG OIL PUM Not Available Price: |
| 14 |
MA-MM409326 |
GASKET Not Available Price: |
| 15 |
MA-30H45-00101 |
GASKET-WATER PUMP Not Available Price: |
| 16 |
MA-30H07-00201 |
GASKET-OIL SEAL Not Available Price: |
| 17 |
MA-30H07-00300 |
GASKET Not Available Price: |
| 19 |
MA-F3151-01010 |
O-RING Not Available This part replaces MA-MM404874. Price: |
| 20 |
MA-30L62-02500 |
O-RING This part replaces MA-MM404878. Price: $9.07 |
| 22 |
MA-30H11-00101 |
GASKET-HOUSING Not Available Price: |
| 23 |
MA-30A11-00101 |
GASKET-OIL PUMP Not Available Price: |
| 26 |
MA-30A11-00300 |
GASKET-GOVERNOR CO Not Available This part replaces MA-30A11-00301. Price: |
| 27 |
MA-30H12-00101 |
GASKET-REAR PLATE Not Available Price: |
| 502191101 |
502191101 |
CLUTCH HOUSING CPL Price: $173.68 |
| 502191202 |
502191202 |
CLUTCH DRUM Price: $20.99 |
| 502191601 |
502191601 |
ANTIVIBE ELEMENT Price: $14.99 |
| 531002387 |
531004067 |
CLUTCH This part replaces 531002387. Price: $64.99 |
| 531002388 |
531004067 |
CLUTCH This part replaces 531002388. Price: $64.99 |
| 531002389 |
531004070 |
CLUTCH SPRING This part replaces 531002389. Price: $5.99 |
| 531002390 |
531002390 |
WASHER Price: $3.99 |
| 531002391 |
531002391 |
WASHER Price: $2.99 |
| 531002392 |
531004736 |
BOLT This part replaces 531002392. Price: $4.99 |
| 725232971 |
725232971 |
SCREW Price: $2.99 |
| 725233371 |
725233371 |
Bolt Price: $1.10 |
| 725533301 |
531004730 |
SCREW This part replaces 725533301. Price: $1.99 |
| 734114601 |
819070816 |
Washer 7/32 x 1/2 x 16 Gauge This part replaces 734114601. Price: $5.99 |
| 735312710 |
735312710 |
RETAINING RING SGH 26 Price: $2.99 |
| 738210002 |
738210002 |
BALL BEARING 6000-2Z Price: $12.99 |
