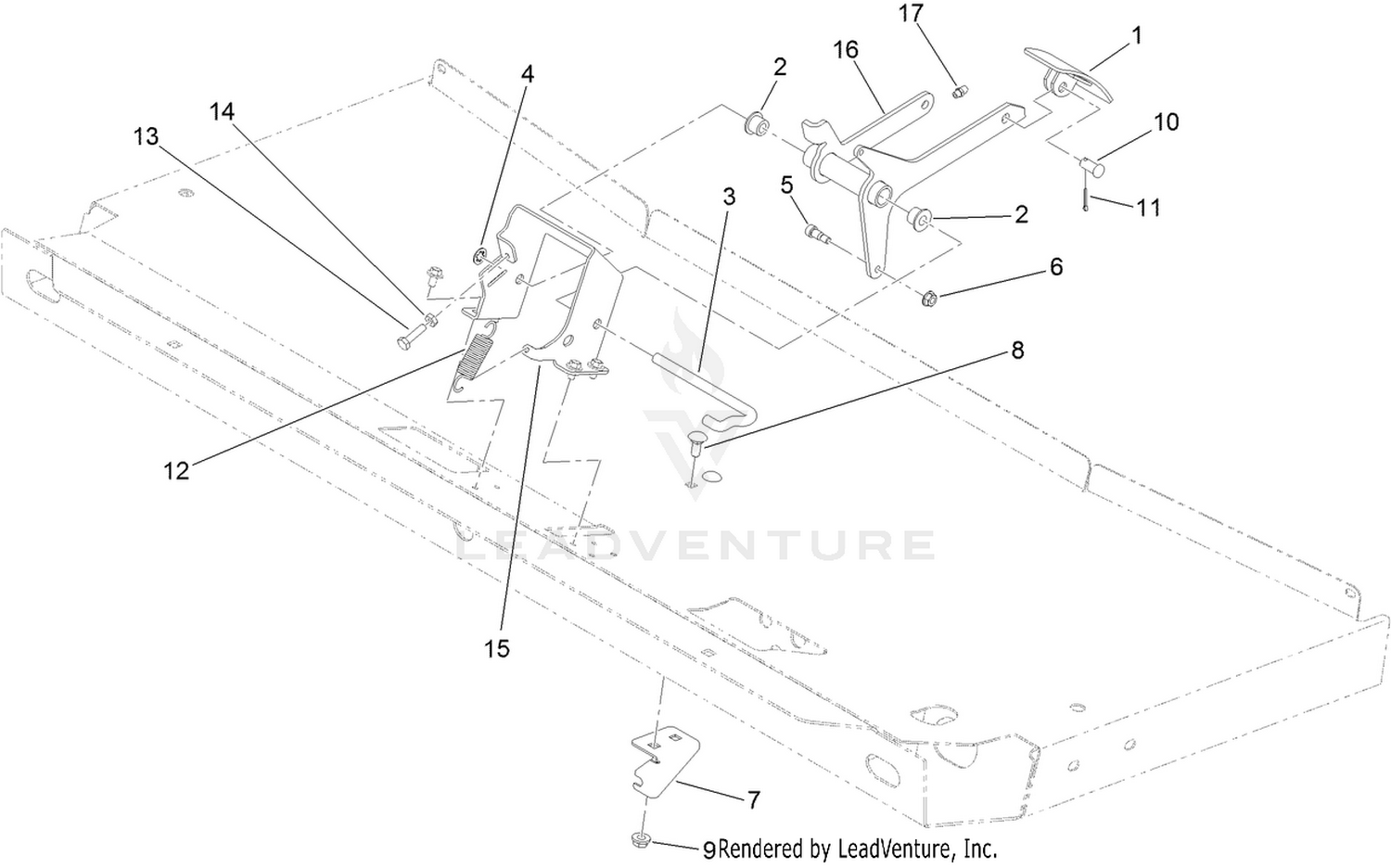

| Ref | Part Number | Description |
|---|
| 1 |
93-8969-03 |
PEDAL Price: $44.32 |
| 2 |
256-259 |
BUSHING-FLANGE Price: $2.65 |
| 3 |
87-2880 |
SHAFT-PEDAL, ACCELERATOR Price: $8.49 |
| 4 |
32151-56 |
RING-RETAINING, EXTERNAL Price: $5.59 |
| 5 |
119-4881 |
BOLT-SHOULDER Price: $4.07 |
| 6 |
32128-33 |
NUT-HF Price: $0.25 |
| 7 |
120-4982 |
BRACKET-MOUNT, CABLE Price: $12.65 |
| 8 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 9 |
32128-20 |
NUT-HF Price: $0.99 |
| 10 |
283-85 |
PIN-CLEVIS Price: $1.29 |
| 11 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 12 |
67-1450 |
SPRING-IDLER Price: $23.99 |
| 13 |
321-6 |
SCREW-HH Price: $0.25 |
| 14 |
3218-1 |
NUT-JAM Price: $1.29 |
| 15 |
127-8625-03 |
BRACKET-MOUNT, PEDAL Price: $41.51 |
| 16 |
120-4983-03 |
PEDAL-ACCELERATOR Price: $73.91 |
