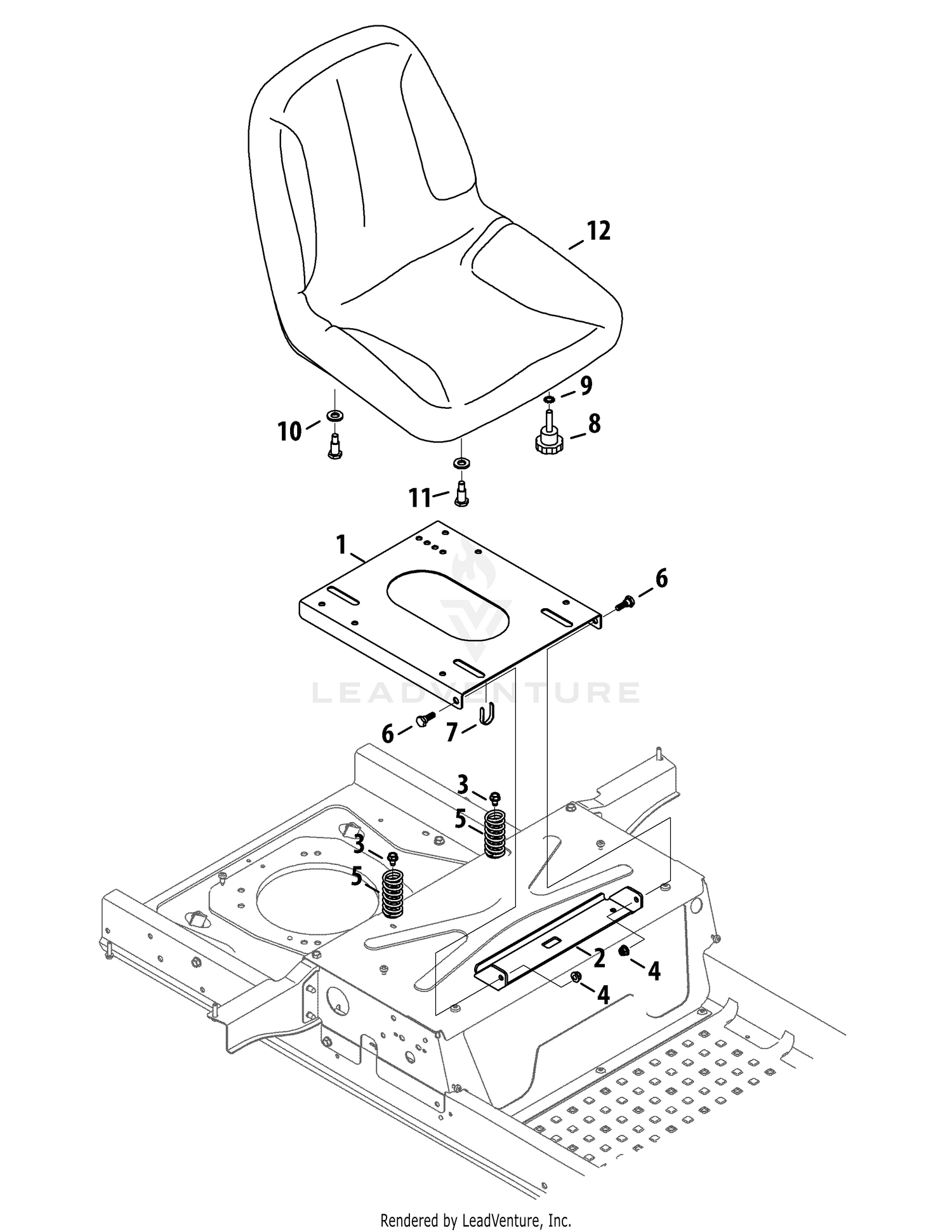

| Ref | Part Number | Description |
|---|
| 1 |
703-09603A-0637 |
Seat Mount Bracket Price: $74.51 |
| 2 |
703-09633-0637 |
SEAT PIVOT BRACKET (POWDER BLACK) Price: $28.11 |
| 3 |
710-1260A |
Hex Washer Screw, 5/16-18 x .750 Price: $3.34 |
| 4 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 5 |
732-04035 |
Spring, Compression, 1.28 OD x 3.125 Lg Price: $9.61 |
| 6 |
738-0296 |
Shoulder Screw, .437 x .286 This part replaces 938-0296. Price: $3.93 |
| 7 |
783-06448 |
Clip Price: $5.26 |
| 8 |
731-05131A |
SEAT ADJUST KNOB 3/8-16 X 1.50 This part replaces 731-05131. Price: $12.34 |
| 9 |
736-0148 |
External Tooth Lock Washer, 3/8 Price: $3.19 |
| 10 |
736-0326 |
Flat Washer,.510 x 1.00 This part replaces 936-0326. Price: $3.89 |
| 11 |
938-0145 |
Shoulder Screw, 3/8-16 Price: $6.01 |
