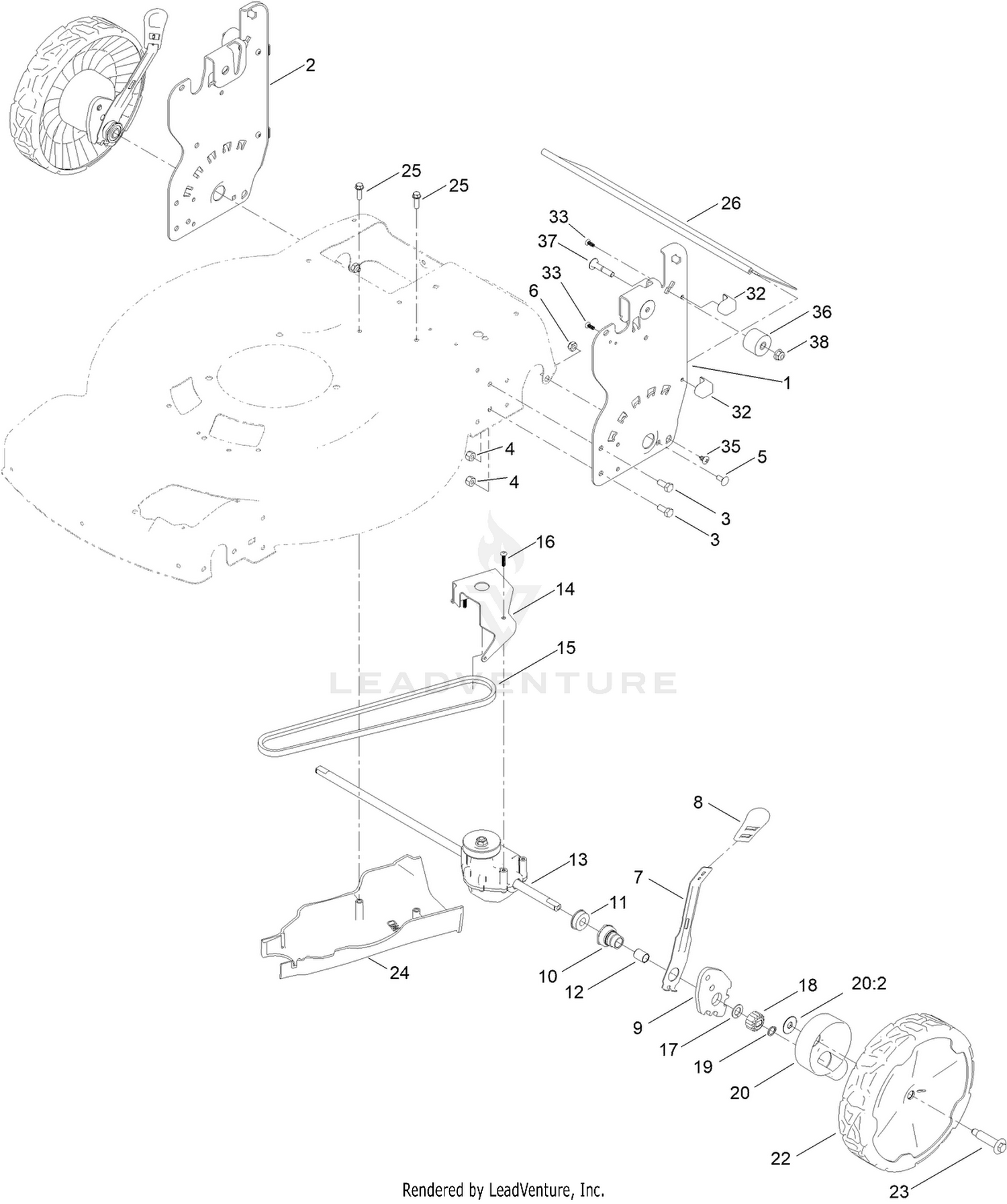

| Ref | Part Number | Description |
|---|
| 1 |
145-5651-05 |
PLATE-HOC, LH (ISO) Price: $26.99 |
| 2 |
145-5650-05 |
PLATE-HOC, RH (ISO) Price: $26.99 |
| 3 |
322-3 |
SCREW-HH Price: $0.79 |
| 4 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 5 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 6 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 7 |
132-4486 |
ARM-SPRING Price: $13.99 |
| 8 |
110-0549 |
KNOB-HOC Price: $0.99 |
| 9 |
139-5451 |
ARM-PIVOT, REAR Price: $11.99 |
| 10 |
108-9779 |
RETAINER-BUSHING, HOC Price: $12.99 |
| 11 |
104-8699 |
BEARING-BALL Price: $4.39 |
| 12 |
108-9782 |
BUSHING-SLEEVE Price: $3.29 |
| 13 |
139-6561 |
TRANSMISSION-RWD Price: $111.99 |
| 14 |
114-7977-03 |
BRACKET-TRANSMISSION Price: $12.99 |
| 15 |
140-4041 |
V-BELT Price: $16.99 |
| 16 |
108-7476 |
SCREW-PLASTITE Price: $0.79 |
| 17 |
110-7191 |
WASHER-THRUST Price: $1.79 |
| 18 |
131-5399 |
GEAR-PINION, 15T Price: $4.79 |
| 19 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 20 |
140-2362 |
ASM-COVER, GEAR (DK GRAY) Price: $3.89 |
| 22 |
144-6474 |
ASM-9.65" WHEEL, GEARED Price: $35.99 |
| 23 |
145-3899 |
WHEEL BOLT Price: $1.59 |
| 24 |
139-5448 |
COVER-BELT, RWD Price: $7.99 |
| 25 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 26 |
145-5821 |
SHIELD-TRAILING, ASM This part replaces 139-6597. Price: $15.99 |
| 32 |
140-2369 |
PAD-SMART STOW Price: $0.89 |
| 33 |
107-7461 |
SCREW-PLASTITE Price: $0.59 |
| 35 |
139-1692 |
SCREW-THD This part replaces 117-1092. Price: $0.39 |
| 36 |
144-0218 |
BUMPER-ISOLATOR Price: $5.29 |
| 37 |
144-6540 |
SCREW-CARR-SPCL Price: $1.19 |
